Description
Key Technical Specifications
- Product Type: Serial Communication Module
- Interface: RS-422 / RS-485 (Dual Port)
- Baud Rate: 1200 bps to 115.2 kbps (Selectable)
- System Compatibility: CENTUM CS3000 / CS1000
- Mounting: V-net Node / FIO Rack
- Isolation: Channel-to-Channel & Channel-to-Backplane
- Operating Temp: 0°C to +70°C
- Suffix Code: S00 (Standard, G3 Option, Non-Ex)
- Cable Type: Shielded Twisted Pair (Recommended)
- Termination: Internal/External Resistor Selectable
Product Introduction
Serial comms in a DCS environment are where ground loops go to kill your data. The YOKOGAWA ALR121-S00 is the workhorse serial interface for CENTUM CS3000 systems, handling the dirty work of converting V-net traffic to RS-485 for analyzers, flow computers, and legacy PLCs. It doesn’t process logic; it just ensures the bits get across the wire without turning into noise.
Bottom line — it’s a standard, non-explosion-proof module. The YOKOGAWA ALR121-S00 supports up to 115.2 kbps, which is plenty for Modbus RTU or Yokogawa’s proprietary serial protocols. You aren’t buying this for speed; you’re buying it because your analyzer package still speaks serial and your CS3000 needs a reliable translator. Just make sure you aren’t installing this in a Class I Div 1 cabinet — that’s what the “-SE0” suffix is for.

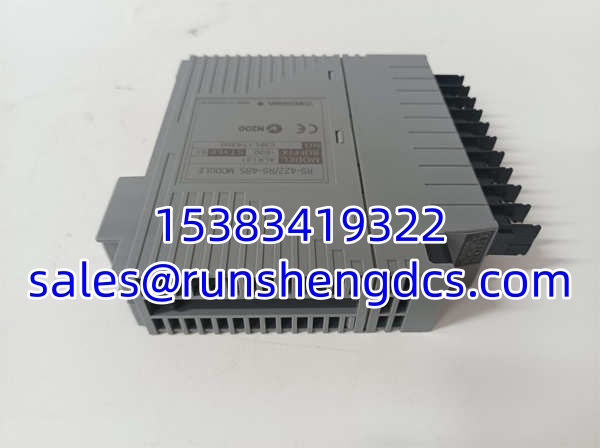

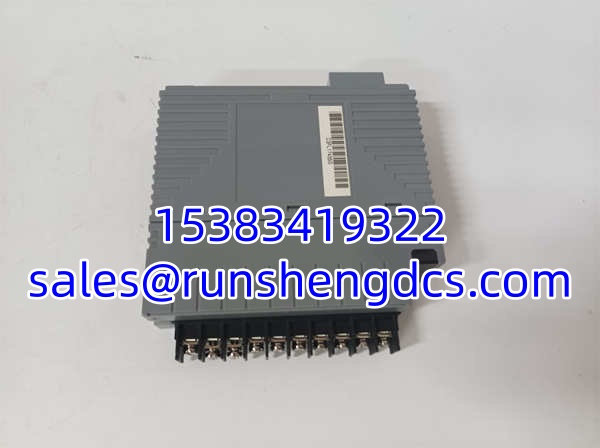

YOKOGAWA ALR121-S00
QA/QC Transparency SOP
- Intake & Origin Verification: We trace the YOKOGAWA ALR121-S00 to original Yokogawa production batches to confirm it’s not a field-pulled unit with corroded RS-485 transceivers.
- Live Functional Testing: Installed on a CS3000 test rack, verifying dual-port handshake, baud rate selection, and V-net synchronization.
- Electrical Parameter Tests: Fluke multimeter checks on termination resistor values and isolation resistance between ports and backplane.
- Firmware/Config Verification: Readout of module ID and dip-switch settings to confirm factory defaults or previous configuration.
- Final QC & Anti-Static Packaging: Shipped in ESD-safe bag with printed test certificate and port configuration map.
Field Engineer Gotchas
- Termination Resistor Chaos: RS-485 is unforgiving. The YOKOGAWA ALR121-S00 has internal termination, but if you enable it on a mid-bus node, you’ll kill the signal. Always verify the physical bus topology before flipping the termination switch. I’ve seen a tech enable termination on three nodes in a row and wonder why nothing talked.
- Baud Rate Mismatch: This module supports up to 115.2 kbps, but your field device might be stuck at 9600. If the YOKOGAWA ALR121-S00 shows “Comm Error” in System View, check the device side first. Don’t assume the card is bad because the analyzer is ancient.
- Ground Potential Differences: RS-485 is differential, not isolated from earth. If your analyzer is grounded 5V above the DCS cabinet, you’ll fry the transceiver. Use signal isolators or fiber optic converters for long runs. I’ve seen two YOKOGAWA ALR121-S00 modules die in a month because someone ran unshielded cable through a VFD tray.
- Suffix Confusion: “-S00” is standard. “-SE0” is explosion-proof. They are physically similar but certified differently. Don’t put an S00 in a hazardous area cabinet, and don’t pay the Ex premium for a safe-area install. Check the area classification drawing.
Application Scenarios
- Analyzer House Integration: Refineries use the to pull data from gas chromatographs and pH analyzers via Modbus RTU into the CS3000 historian.
- Third-Party PLC Handshake: Power plants use it to interface with Allen-Bradley or Siemens PLCs that control BOP equipment, avoiding expensive gateway hardware.
- Legacy Metering Skids: Oil & Gas facilities use the to maintain communication with 20-year-old flow computers that don’t support Ethernet.
FAQ
No. This is a serial module (RS-422/485). For Modbus TCP, you need an Ethernet module like the ALE111. Don’t try to adapt serial to Ethernet with converters unless you have to.
Yes, CENTUM CS3000 FIO modules are hot-swappable. But verify the V-net status before pulling. If the bus is already degraded, pulling a card might be the final straw.
What’s the max cable length for RS-485?
At 115.2 kbps, keep it under 100 meters. At 9600 bps, you can push 1200 meters with proper shielding and termination. Verify with Yokogawa IM for your specific baud rate.
Why is my “COMM” LED flashing red?
Flashing red on the usually means a physical layer fault: shorted wires, missing termination, or baud rate mismatch. Check the wiring first. Don’t RMA the card until you’ve verified the cable.
Do you have these in stock right now?
Inventory for Yokogawa parts fluctuates daily. Check the live stock counter or contact us directly. We don’t list phantom inventory.
12 months. If the serial ports fail, V-net sync drops, or the module won’t boot under normal conditions, we replace it. No restocking fees on DOA units.
