Description
Key Technical Specifications
- Model Number: CC-PDOB01 (51405043-175)
- Manufacturer: Honeywell
- Series: Experion C300 DCS System
- Channel Count: 32 Channels
- Output Type: 24VDC Bussed Digital Output
- Redundancy: Supports Hot Standby Redundancy
- Safety Feature: Fail-Safe State on Comm/Power Loss
- Power Supply: C-Series Power Compatible
- Field Devices: Drives Solenoids, Relays, Indicators
Functional Role & Application Analysis
The Honeywell CC-PDOB01 is a core digital output module for the Experion C300 DCS architecture. It is specifically designed to execute critical logic commands and drive 24VDC field devices such as solenoid valves, relays, and indicator lights. The primary pain point this module solves is process safety during system anomalies. It features a built-in “fail-safe” design. If the module detects a communication loss or power failure, it automatically resets all outputs to a predefined safe state (open or closed). This prevents dangerous equipment misoperations and protects critical process units.
Typical Use Cases:
- Petrochemical & Refining: Executing emergency shutdown (ESD) logic and valve sequencing in high-risk continuous processes.
- Power Generation: Controlling auxiliary motors, cooling fans, and boiler trip relays within the plant DCS.
- Legacy System Maintenance: Replacing failed output cards in aging Experion C300 systems to prevent unplanned facility downtime.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. A failed output module in a safety-critical loop can cause catastrophic process deviations. We have established a rigorous, multi-stage testing process to ensure every product we ship is 100% functional.
- Visual & Component Inspection: All modules undergo professional cleaning and high-magnification inspection to ensure no physical damage, trace corrosion, or compromised solder joints.
- Live System Test: The module is installed in a live C300 test rack and run for 24 hours to verify continuous backplane communication and power stability.
- Full-Function Diagnostics: We force all 32 output channels individually to verify switching accuracy, load handling, and proper fail-safe state transitions.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

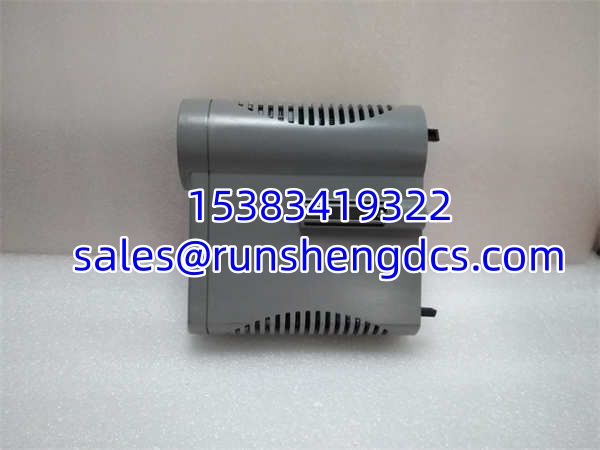

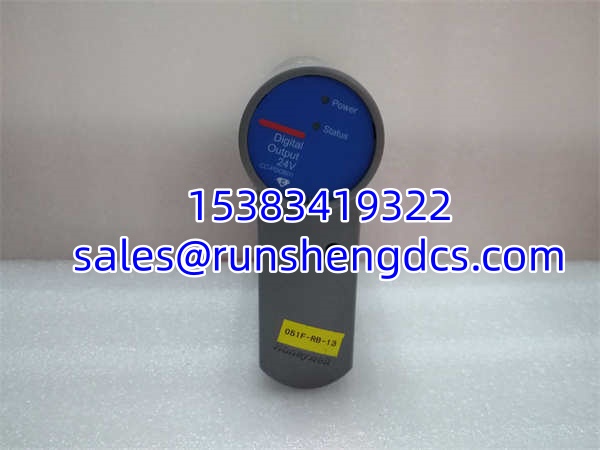

Honeywell CC-PDOB01 51405043-175
Compatibility & Migration Paths
To ensure this CC-PDOB01 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to extended downtime.
- Exact Part Number Match: You must verify the full number 51405043-175. Suffix variations indicate different hardware revisions that may not be backward-compatible.
- Redundancy Configuration: If your system requires hot standby, confirm that your C300 controller and backplane are explicitly configured for redundant I/O.
- Power Supply Compatibility: Verify that your C-series power supply has adequate capacity to handle the 24VDC load of all 32 channels at full draw.
- Get Expert Help: Unsure about your system configuration or fail-safe settings? Contact our technical team today for a free compatibility check.
