Description
Key Technical Specifications
- Manufacturer: Emerson / Westinghouse
- Product Line: Ovation DCS
- Module Type: Digital Input (Switching Input)
- Nominal Voltage: 48VDC
- Module Variant: On-Board E-Mod
- Signal Type: Dry Contact / Switching
- Channel Status Indication: Green LED (Closed), Off (Open)
- Fault Indication: Red ‘E’ LED indicates channel ground fault
- Mounting: Ovation I/O Backplane
- Application: DCS Process Control / Wind Turbine Pitch Systems

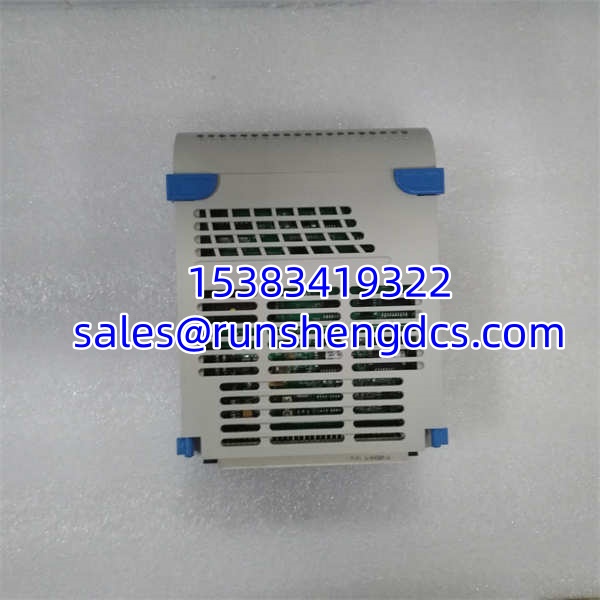

Product Introduction
Plant floor technicians know the drill: a turbine trips or a valve fails to stroke, and the first thing you grab is a multimeter to check the 48VDC supply at the Ovation rack. The 1C31234G01 sits right in that critical path. It is a discrete digital input module designed specifically for the Ovation DCS platform. Instead of passing signals through a separate base card, this unit integrates the 48VDC switching interface directly on-board. It acts as the physical bridge between field wiring and the DCS logic, translating mechanical switch closures or relay contacts into binary data the controller can actually use.
Why keep spares of this specific 1C31234G01? Because when a ground fault takes out a channel, you cannot wait three weeks for freight. This module features built-in diagnostic LEDs. A green light means the channel is closed; a red ‘E’ light means you have a ground fault on that specific input. It handles the dirty work of filtering and isolating 48VDC field signals. Bottom line—having a pre-tested 1C31234G01 on the shelf saves hours of troubleshooting during a forced outage.
Troubleshooting Quick Reference
- Red ‘E’ LED Illuminated: 80% chance of a field wiring ground fault. Check field cables for pinched insulation or moisture ingress. Measure resistance to ground at the terminal block.
- Channel Not Reading State: 60% chance of blown internal fuse or failed opto-isolator. Verify 48VDC is actually present at the module terminals. If voltage is good but no state change, swap the 1C31234G01.
- Intermittent Signal: 70% chance of loose terminal screw or corroded backplane pin. Reseat the module. Torque terminal screws to spec. Check for vibration damage.
- Module Not Recognized by DCS: 90% chance of backplane communication failure. Reseat module firmly. Inspect backplane connector pins for bending. If multiple modules fail, check backplane power supply.
- False Trips: 50% chance of electrical noise coupling. Verify shield grounding practices. Ensure 48VDC power supply is clean and properly filtered.

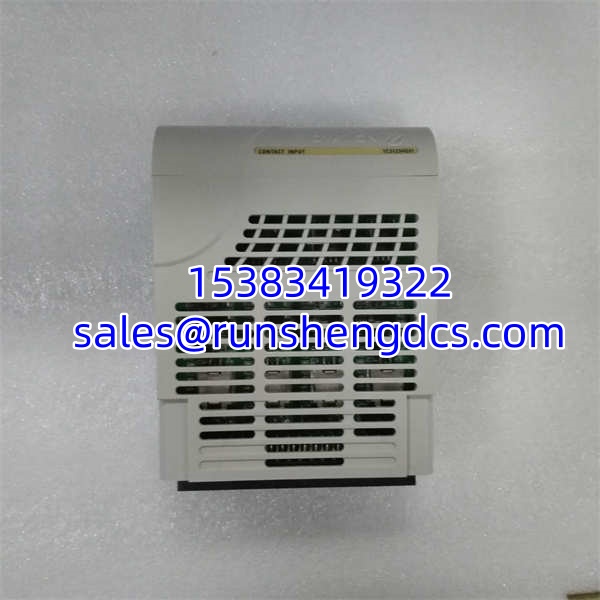

EMERSON 1C31234G01
Application Scenarios & Pain Points
- Wind Turbine Pitch Control: High vibration and temperature swings degrade solder joints. The 1C31234G01 must survive mechanical stress while reading safety-critical limit switches.
- Power Plant Valve Positioning: 48VDC control circuits often share conduit with motor leads. Electrical noise causes false DI states. Proper shielding and module filtering are mandatory.
- Petrochemical Safety Interlocks: Ground faults in hazardous areas trigger nuisance trips. Fast diagnosis via the red ‘E’ LED prevents unnecessary process shutdowns.
- Real-World Case: An engineer at a coal-fired plant faced repeated turbine trips. The DCS showed a limit switch opening, but field checks proved the switch was fine. The 1C31234G01 had developed an internal ground fault that only manifested under high ambient heat. Swapping the module restored stability instantly.

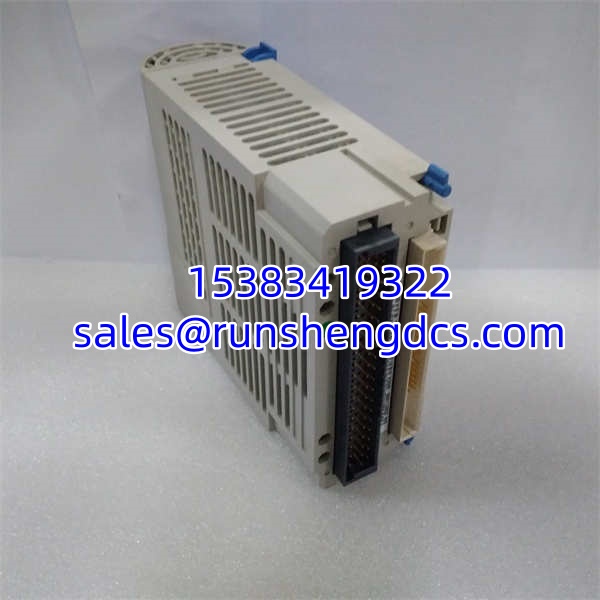

EMERSON 1C31234G01
Compatible Replacement Models
- ✅ Drop-in Replacement: 1C31238H01 (DI 48VDC On-Board P-Mod). Same voltage, same form factor. Verify P-Mod vs E-Mod compatibility with your specific Ovation backplane revision.
- ⚠️ Software Compatible: 1C31232G03 (Differential DI 120VAC/DC). Requires logic reconfiguration and wiring changes. Do NOT use as a direct swap without engineering review.
- ❌ Hardware Incompatible: 1C31233G01 (SOE Card). Different timing architecture. Will not function as a standard DI. Do not attempt to substitute.
