Description
Key Technical Specifications
- Input Signal Type: 4-20mA Current
- Channel Count: 8 Points per Module
- Resolution: 14-Bit A/D Conversion
- Power Configuration: System Powered
- Module Type: Electronic Module (EMOD)
- Diagnostics: Built-in channel diagnostics
- Terminal Designation: A1-A8+/- (Signal), P1-P8 (Power), CI1-CI8 (Current)
- Shielding: Dedicated SH1-SH8 shield terminals
- System Compatibility: Emerson Ovation DCS
- Mounting Style: Backplane / Baseplate
Product Introduction
Ovation DCS plants run on precise data, and the EMERSON 1C31224G01 sits right at the edge of that reality. This is an 8-channel, 14-bit analog input electronic module designed specifically for system-powered 4-20mA current loops. It belongs in the Ovation I/O base, acting as the primary transducer interface for critical process variables. Without it, your control logic is just guessing.
Why keep this specific card in your spare parts inventory? Because 14-bit resolution actually matters when you are trying to catch slow drift in a valve positioner or a pressure transmitter. The EMERSON 1C31224G01 updates its data fast enough to keep up with Ovation’s deterministic network, and the built-in diagnostics will tell you exactly which channel is failing before it trips a unit. Bottom line—it’s a workhorse module that keeps your plant from flying blind.
Troubleshooting Quick Reference
- Fault: Single channel reads zero or max scale | Cause: Field wiring open/short or bad transmitter | Relevancy: 80% chance it’s field side | Quick Check: Measure 4-20mA at terminal A1-A8+/- with a multimeter | Fix: Repair field wiring or replace transmitter
- Fault: All channels reading erratic | Cause: Backplane power issue or loose seating | Relevancy: 15% chance it’s module seating | Quick Check: Reseat the EMERSON 1C31224G01 and check P1-P8 voltage | Fix: Clean backplane pins or replace base
- Fault: Diagnostics flagging bad channel | Cause: Internal A/D failure or out-of-range signal | Relevancy: 5% chance it’s internal module failure | Quick Check: Swap known good 4-20mA source into the flagged channel | Fix: Replace the 1C31224G01 if signal is proven good
Application Scenarios & Pain Points
- Thermal Power Generation: Boiler drum level and steam pressure loops demand high-resolution feedback. A noisy AI card here means false trips during load changes.
- Petrochemical Refining: Crude distillation columns rely on precise temperature and pressure gradients. Drift in a 4-20mA signal ruins product purity.
- Water Treatment Facilities: Chlorine dosing and pH control loops need stable analog inputs. Bad data equals chemical waste or compliance violations.
Real-world case: Engineer at a coal-fired power plant faced erratic feedwater valve hunting during midnight shifts. The Ovation historian showed the AI card feeding the PID loop was dropping packets. Swapped the EMERSON 1C31224G01 during a weekend outage. Valve stabilized instantly. Turns out the internal voltage regulator on the old card was failing under heat stress. Saved them from a forced outage the following week.

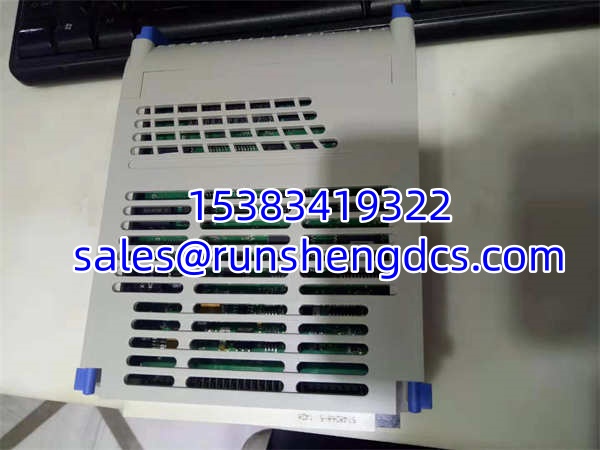

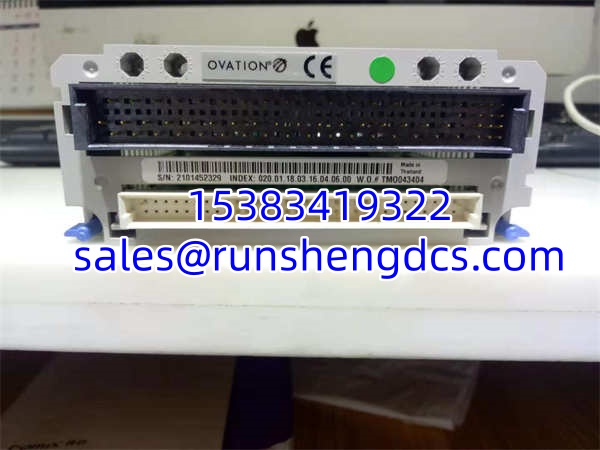

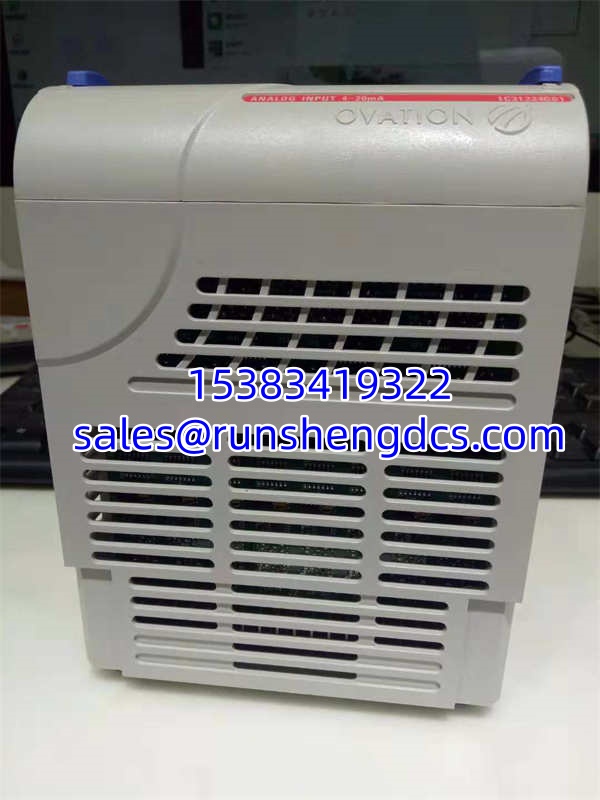

EMERSON 1C31224G01
Compatible Replacement Models
- ✅ Drop-in Replacement: 1C31224G01 (Exact match. Ensure same hardware revision suffix if running legacy Ovation controllers. Cost varies wildly based on surplus availability.)
- ⚠️ Software Compatible: 5X00070G01 (High-speed AI module. Same Ovation platform, but requires controller reconfiguration and potential logic recompilation. Budget 4-8 hours of engineering time for re-download and loop tuning.)
- ❌ Hardware Incompatible: 1C31113G05 (Older 13-bit AI module. Different backplane footprint and resolution. Do not attempt to force this into a 14-bit slot without a full I/O base upgrade.)
