Description
Key Technical Specifications
- Model Number: CC-PAIH51 (51410069-275)
- Manufacturer: Honeywell
- Product Type: Analog Input Module (HART)
- System Platform: Experion PKS / C300 Controller
- Channels: 8 Single-Ended / 4 Differential
- Signal Types: 4-20mA, 1-5VDC, HART
- Resolution: 16-bit ADC
- Update Rate: Configurable (up to 100ms)
- Isolation: Channel-to-channel and channel-to-bus
- Power: 24 VDC via backplane
Functional Role & Application Analysis
The Honeywell CC-PAIH51 51410069-275 is a critical analog input module designed for the Experion PKS and C300 controller environments. It solves the challenge of integrating intelligent field devices into the DCS network by providing native HART protocol support. This allows engineers to extract secondary diagnostic data directly from smart transmitters without additional hardware.
Typical use cases include:
- Continuous process monitoring in refining and petrochemical plants.
- Smart device diagnostics and predictive maintenance via HART variables.
- High-density analog signal acquisition in compact C300 I/O racks.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. We have established a rigorous, multi-stage testing process to ensure every product we ship is 100% functional.
- Visual & Component Inspection: All parts undergo professional cleaning and visual inspection to ensure no physical damage, corrosion, or compromised components.
- Live System Test: The module is installed in a live Honeywell Experion test rack and run for 24 hours to verify continuous operation and communication.
- Full-Function Diagnostics: We simulate 4-20mA and HART signals to test the full range and accuracy of every single channel.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

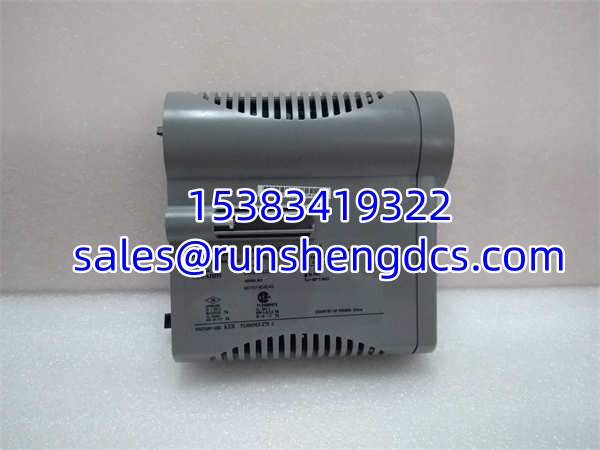

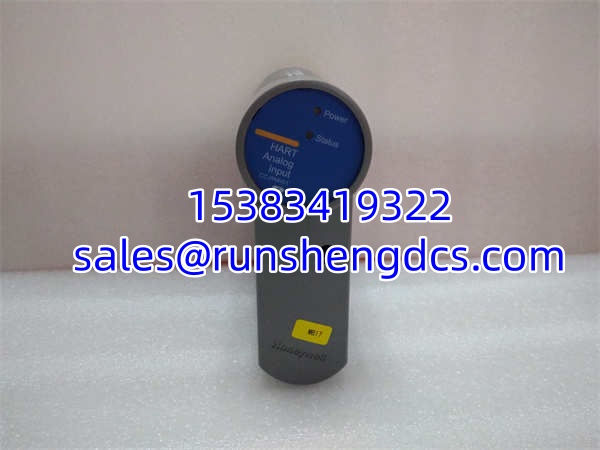

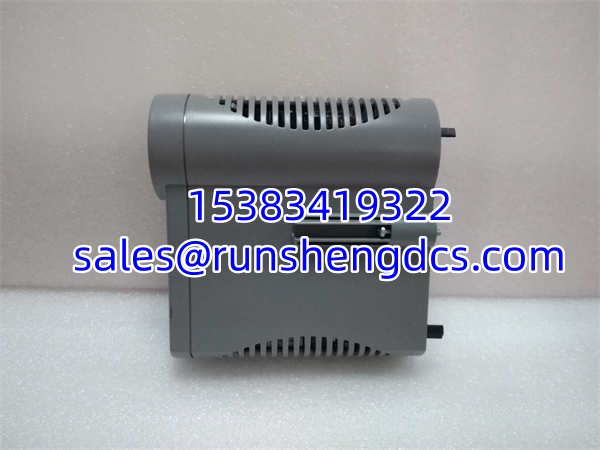

Honeywell CC-PAIH51 51410069-275
Compatibility & Migration Paths
To ensure this CC-PAIH51 51410069-275 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk.
- Firmware/Hardware Revisions: You must confirm your C300 controller firmware is R400 or higher. Earlier versions may not support the -275 revision of this module.
- Required Components: This module requires a compatible C-Series I/O terminal assembly (e.g., CC-TAIX01). Verify your terminal block matches before ordering.
- Replacement & Alternatives: This model (51410069-275) is the direct replacement for older 51410069-175 units. If HART is not required, the CC-PAIX01 (non-HART) can be used as a cost-effective alternative.
- Get Expert Help: Unsure about your system? Contact our technical team today for a free compatibility check.
