Description
Key Technical Specifications
- System Architecture: Procontrol P13 Local Bus
- Processing Power: Dual DSPs + 32-bit Communication Processor
- Ethernet Interface: High-speed 100 Mbit/s (Custom App Protocol)
- Safety Certification: SIL3 (IEC 61508)
- Configuration Memory: Onboard Flash-based
- Power Supply: 24 VDC (via Local Bus backplane)
- Operating Temp: 0 °C to 60 °C
- Humidity Tolerance: 5% – 95% non-condensing
- Dimensions: 15.2 cm x 7.6 cm x 22.9 cm
- Weight: 0.6 kg
- Engineering Tool: Seamless integration with P13 tools
Product Introduction
You are looking at the brain of a legacy ABB Procontrol P13 Distributed Control System. The 70PR05B-ES is a programmable processor module that mounts directly into the local bus subrack. It runs your stored AWL (Anweisungsliste) control programs and manages I/O across the P13 bus. Unlike older generations, this updated version packs dual digital signal processors and a 32-bit comm chip, allowing it to execute up to three times more instructions per cycle than its predecessors.
Why keep these on the shelf? Because replacing a P13 CPU means migrating an entire plant’s control logic. This module is certified for SIL3 safety applications, meaning it handles critical safety interlocks, not just basic process control. The 100 Mbps Ethernet port lets you download configs and run diagnostics without tying up the local bus. Honestly, it’s a highly reliable piece of kit. Sourcing them now is your only option to keep legacy plants running without a multi-million-dollar DCS migration.
Troubleshooting Quick Reference
- Processor Won’t Boot | Corrupt AWL Program | 50% Probability | Connect via P13 Engineering Tool | Download known-good backup. If it loops, the flash memory might be degraded.
- Comm Drops on Local Bus | Backplane Seating Issue | 40% Probability | Reseat module in subrack | Vibration loosens connections. Clean backplane pins with contact cleaner.
- Ethernet Port Unresponsive | IP/Address Mismatch | 30% Probability | Check DIP switch and TCP/IP settings | Address conflict. Verify configuration matches DCS database.
- Overtemperature Alarm | Cabinet Cooling Failure | 60% Probability | Check cabinet fan RPM and filters | Clogged filters kill CPUs. Clean heat sinks. Verify airflow direction.
- Safety Fault Trips | SIL3 Degradation | 20% Probability | Run P13 self-diagnostics | Internal watchdog or memory error. If it fails self-test, the module is dead.

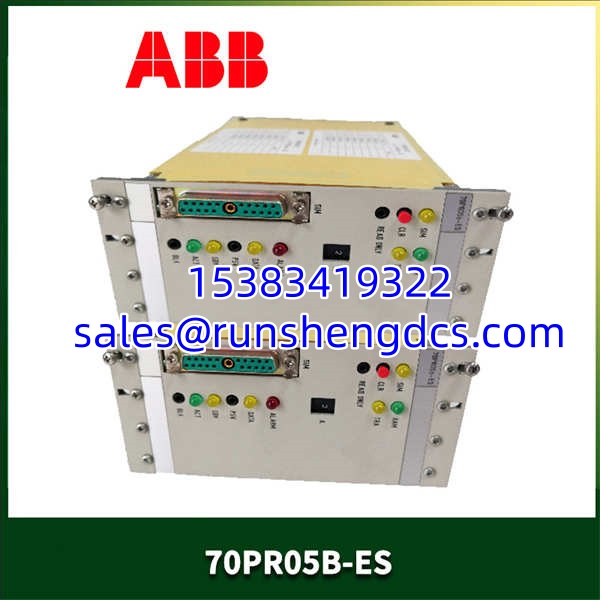

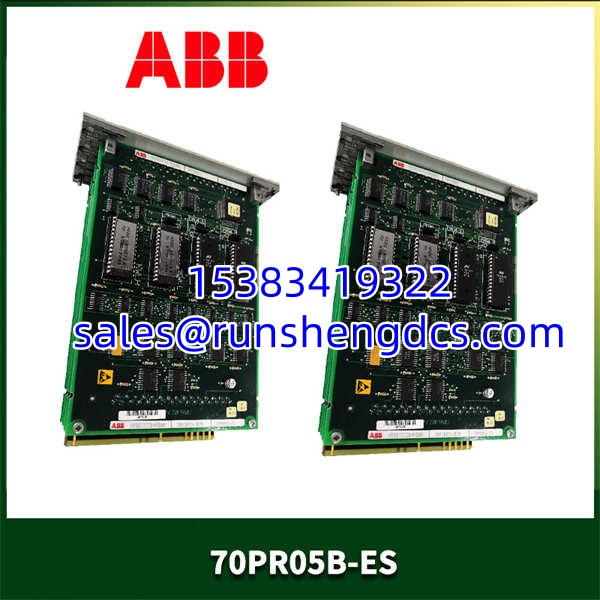

ABB-70PR05B-ES
Application Scenarios & Pain Points
- Chemical Reactor Safety Systems: SIL3 certification is mandatory. A failing processor causes safety interlocks to trip, shutting down the entire production line unnecessarily.
- Brownfield Power Generation: Legacy Procontrol P13 networks refuse to die. This module bridges 20-year-old control logic to newer engineering stations via the 100 Mbps Ethernet port.
- Heavy Metallurgy Mills: Massive processing loads demand fast execution. The dual DSP architecture handles complex PID loops without choking during peak production.
Compatible Replacement Models
- ✅ Drop-in Replacement: ABB 70PR05B-ES (HESG332204R1). Exact same hardware revision. Verify serial number and firmware version match your existing rack. No reprogramming needed if versions align.
- ⚠️ Software Compatible: ABB 70PR07A. Same Procontrol P13 engineering tool and AWL protocol. Hardware is updated with newer DSP tech. Expect 2-4 hours for parameter migration and functional testing.
- ❌ Hardware Incompatible: ABB AC800M / PM Series. Completely different architecture, backplane, and engineering software (Control Builder). Rewiring and full DCS migration required. Do not attempt as a quick swap.
