Description
Key Technical Specifications
- Processor Type: High-performance microprocessor for fast cycle times
- Memory Capacity: 10 MB total RAM (2 MB battery-backed)
- Ethernet Port: 100 Mbit/s for controller/operator station communication
- Serial Interfaces: Dual serial ports (Modbus and Diagnostics)
- Task Configuration: Up to 8 cyclic and priority tasks with adjustable times
- I/O Scan Time: Minimum 2 milliseconds for local S700 I/O
- Max Local I/O: Up to 8 S700 I/O modules directly connected
- Third-Party I/O: Modbus ASCII/RTU, IEC 60870-5-101, PROFIBUS
- Diagnostics: Short circuit and wire break detection per channel
- Physical Dimensions: 54mm (D) x 76mm (H) x 67.5mm (W)
- Weight: 0.15 kg
- Security Feature: Key-lock to prevent unauthorized firmware/app downloads
Product Introduction (2 Paragraphs)

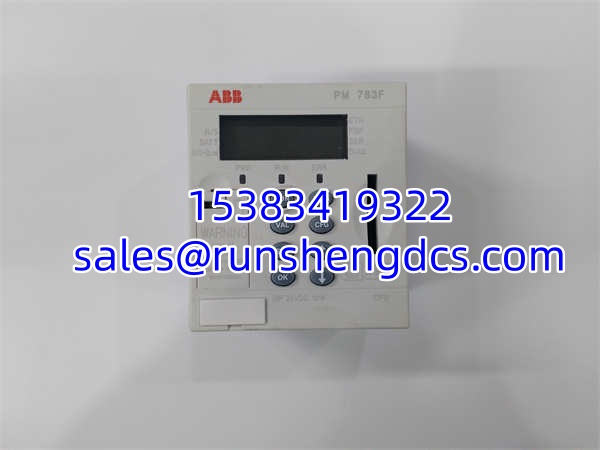

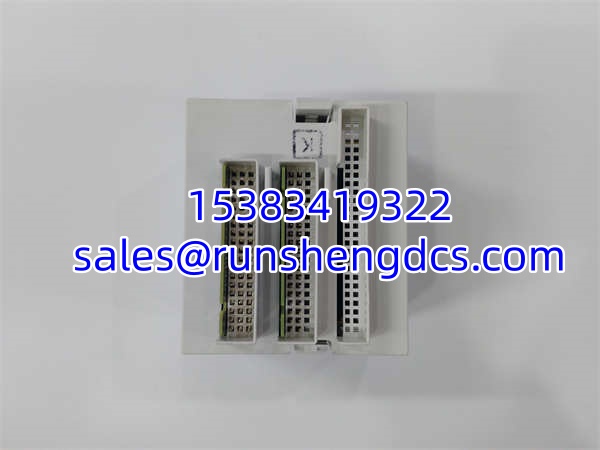

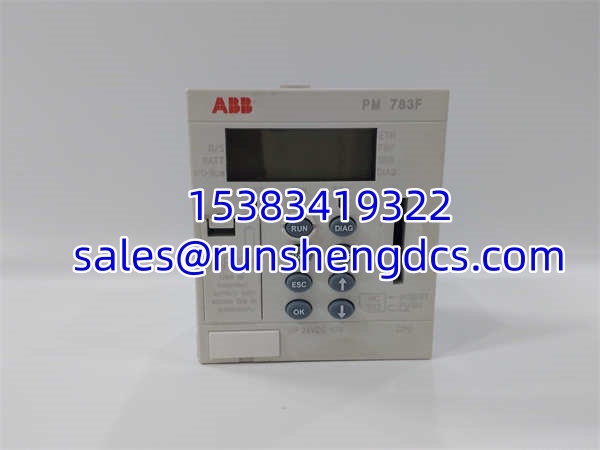

You’re staring at a tripped controller at 3 AM, and the front panel is dead. The ABB 3BDH000364R0002 PM783FB0 is the central processing unit for the AC800F platform, designed to run DCS logic directly on PLC hardware. It handles everything from basic loop control to complex batch processing. Honestly, finding a working 3BDH000364R0002 PM783FB0 today means you’re likely dealing with a legacy system that hasn’t been upgraded in a decade.
Why keep it running? Because ripping out a DCS costs hundreds of thousands of dollars. The ABB 3BDH000364R0002 PM783FB0 gives you a 2 ms I/O scan time and 10 MB of RAM, which is plenty for small applications (up to ~300 I/O signals). It has a key-lock mechanism to stop rogue engineers from downloading bad firmware. Bottom line—it’s a workhorse, but treat it like the aging asset it is.
Troubleshooting Quick Reference
- Fault: Front panel display is completely blank | Cause: No 24VDC power or blown internal fuse | Relevancy: 80% chance it’s power supply | Quick Check: Measure TB711F base terminals for 24VDC | Fix: Replace external PSU or check TA521 battery
- Fault: ERR LED solid red | Cause: Corrupt application or watchdog timeout | Relevancy: 60% chance software crash | Quick Check: Connect engineering tool via Ethernet | Fix: Cold restart; reload app if necessary
- Fault: Intermittent communication drops | Cause: Failing Ethernet PHY or bad cable | Relevancy: 40% chance physical layer | Quick Check: Ping module continuously while wiggling cable | Fix: Replace CAT5e/6 cable; if persists, swap CPU
- Fault: I/O scan time exceeding 2 ms | Cause: Too many tasks or heavy Modbus polling | Relevancy: 30% chance overload | Quick Check: Check task utilization in Control Builder | Fix: Reduce priority task load or optimize Modbus map
- Fault: Battery backup failure alarm | Cause: Dead TA521 battery | Relevancy: 90% chance dead battery | Quick Check: Read system diagnostics via HMI | Fix: Replace TA521 battery immediately (do it hot!)
ABB 3BDH000364R0002 PM783FB0
Application Scenarios & Pain Points
- Water/Wastewater Pump Stations: Remote unattended sites where a CPU failure means raw sewage overflow. The 2 ms scan time handles pump sequencing, but aging electrolytic caps inside the 3BDH000364R0002 PM783FB0 are a ticking clock.
- Small-Scale Chemical Batch Reactors: Requires precise temperature ramp profiles. The 8-task priority structure handles the PID loops, but Modbus polling of third-party analyzers can starve the main control task if not configured properly.
- Power Substation Auxiliaries: Uses IEC 60870-5-101 for SCADA comms. Harsh EMI environments degrade the serial interfaces over time. Grounding issues cause phantom communication faults.
Engineer at a municipal water plant faced repeated 3BDH000364R0002 PM783FB0 failures every 18 months. Root cause wasn’t the CPU itself—it was a failing 24VDC power supply sending voltage spikes through the TB711F base. Replaced the PSU, added a surge suppressor, and the CPUs stopped dying. Always check the power first.
Compatible Replacement Models
- ✅ Drop-in Replacement: ABB PM783F 3BDH000364R0001 (Same hardware family, verify firmware version ≥9.2SP2. Same TB711F base and TA521 battery. May require Control Builder project migration.)
- ⚠️ Software Compatible: ABB PM803F 3BDH000030R1 (AC800F platform, different hardware revision. Requires recompile and hardware config update in Control Builder. Budget ~4-8 hours engineering time for migration.)
- ❌ Hardware Incompatible: ABB AC800M series (PM860/PM861). Completely different backplane, different programming paradigm (Control Builder M vs F). Requires full system redesign. Do NOT attempt as a quick swap.
