Description
Key Technical Specifications
- Input Channels: 8 points per module
- Resolution: 14-bit A/D conversion
- Signal Type: Analog Current (typically 4-20mA)
- System Power: System powered (draws from backplane)
- Platform: Emerson Ovation DCS
- Legacy Lineage: Westinghouse Ovation
- Mounting: Horizontal Carrier / Backplane slot
- Typical Application: Process variable monitoring (Temp, Pressure, Flow)
- Diagnostics: Built-in channel open/short detection
- Form Factor: Standard Ovation I/O personality module
Product Introduction

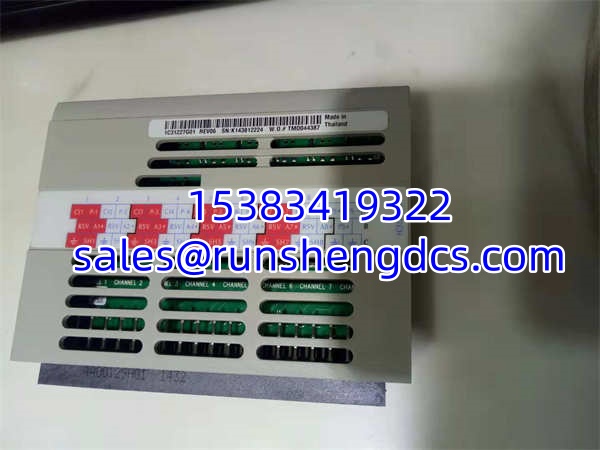

Ovation DCS operators know the drill. You get a bad channel alarm on a critical pressure transmitter, and the first suspect is usually the input card itself. The EMERSON 1C31227G01 is an 8-channel, 14-bit analog input module built specifically for this exact headache. It lives in the Ovation horizontal carrier, pulling system power directly from the backplane to digitize standard 4-20mA field signals. No external power supplies needed for the inputs. Just plug it in, configure the personality in the Ovation workstation, and start reading process data.
Why keep spares of the EMERSON 1C31227G01? Because Ovation systems run for decades, and OEM lead times on legacy cards can stretch into months. This module gives you 14-bit resolution across 8 independent channels, which is plenty for standard process control loops. It handles the A/D conversion and basic diagnostics locally, keeping backplane traffic manageable. Bottom line—it’s a workhorse I/O card. When your turbine inlet temp reading goes haywire at 3 AM, having a verified EMERSON 1C31227G01 on the shelf is the difference between a 15-minute swap and a 6-week production loss.
Troubleshooting Quick Reference
- Fault: Single channel reads zero or max scale | Cause: Field wiring open/short or sensor failure | Relevancy: 70% probability | Quick Check: Measure mA at module terminal block | Fix: Repair field wiring or replace transmitter before blaming the EMERSON 1C31227G01
- Fault: All 8 channels reading garbage | Cause: Backplane power issue or seating fault | Relevancy: 80% probability | Quick Check: Reseat module, verify backplane 5V/12V | Fix: Clean backplane connectors, check system power supply
- Fault: Channel reads stable but wrong value | Cause: Configuration mismatch or calibration drift | Relevancy: 60% probability | Quick Check: Verify range config in Ovation workstation | Fix: Recalibrate sensor or update module personality parameters
- Fault: Intermittent readings | Cause: Ground loop or EMI | Relevancy: 50% probability | Quick Check: Check shield grounding at junction box | Fix: Isolate signal grounds, verify twisted pair routing
Application Scenarios & Pain Points
- Power Generation Turbine Control: High-vibration environments degrade solder joints over time. The EMERSON 1C31227G01 must survive continuous mechanical stress while monitoring bearing temps and lube oil pressure. Vibration-induced cracks on the PCB are a known failure mode after 15+ years.
- Chemical Reactor Monitoring: Corrosive atmospheres attack terminal blocks. Field techs report pitted contacts on older EMERSON 1C31227G01 units installed in unconditioned I/O cabinets. Regular contact cleaning extends life.
- Oil & Gas Pipeline Metering: Long cable runs introduce noise. 14-bit resolution helps, but poor shielding kills accuracy. Engineers often chase ghost readings that turn out to be grounding issues, not bad cards.
Engineer at a Midwest coal plant faced a recurring false trip on a boiler feedwater pump. The Ovation system kept flagging a low-flow condition on channel 3 of an EMERSON 1C31227G01. Swapped the card twice. Same fault. Turned out to be a corroded terminal strip on the backplane carrier itself. The EMERSON 1C31227G01 was fine. Lesson: always inspect the carrier before condemning the module. Saved them from ordering three more spare cards unnecessarily.

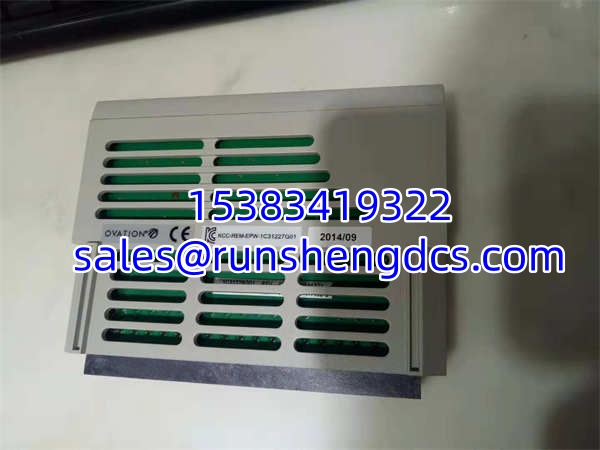

EMERSON 1C31227G01
Compatible Replacement Models
- ✅ Drop-in Replacement: 1C31224G01 — Same 8-channel analog input personality, same form factor. Verify revision suffix (G01 vs G02) for minor firmware differences. Functionally identical for most Ovation configurations. Cost varies by vendor stock levels.
- ⚠️ Software Compatible: 5X00167G01 — Later-generation Ovation analog input. Same backplane, same carrier. Requires Ovation workstation personality update and potential range reconfiguration. Budget 2-4 hours of engineering time for download and loop validation. Not a midnight swap-and-go.
- ❌ Hardware Incompatible: 1C31129G03 — This is an analog OUTPUT module. Different pinout, different function. Do not attempt to force this into an input slot. Will not work. Will not even fit correctly despite similar part number structure.
