Description
Key Technical Specifications
- Manufacturer: ABB
- Product Line: AC 800M Controller
- Processor Type: MPC860 PowerPC
- Clock Speed: 48 MHz
- Memory: 16MB Total RAM (7.155MB Application Available)
- Boolean Performance: 0.23ms per 1000 operations
- Ethernet Ports: 2x RJ45 (CN1, CN2)
- Serial Ports: 2x RJ45 (COM3 RS232C, COM4 Isolated)
- Supported Protocols: PROFIBUS DP, Modbus, OPC
- Redundancy: CPU, CEX Bus, Communication Interface
- Mounting: Standard DIN Rail / TP830 Base
Product Introduction

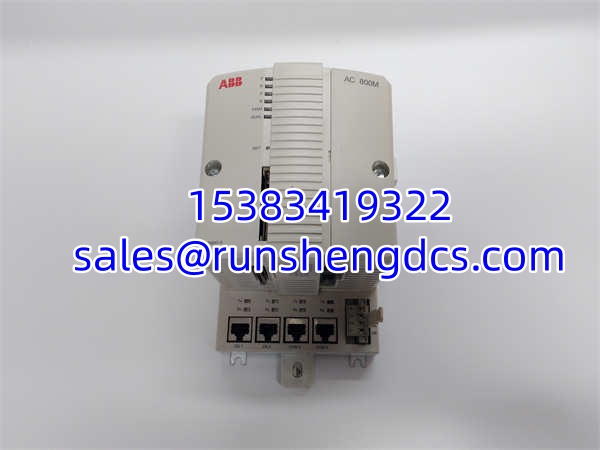

When a critical AC 800M controller fails at 3 AM, the PM861AK01 (3BSE018157R1) is the exact board you need in your spare parts cabinet. This is the high-performance processor module at the heart of ABB’s AC 800M series. Built around an MPC860 PowerPC processor running at 48MHz, it handles the heavy lifting of complex control algorithms, logic execution, and CEX bus management. It is not just a basic PLC; it is a full DCS-grade controller designed for mid-to-large scale industrial processes where downtime translates directly to massive financial loss.
Why specify the PM861AK01? Because it brings serious hardware redundancy to the table. It supports hot-standby CPU configurations, meaning if the primary processor dies, the backup takes over in milliseconds without dropping the process. With 16MB of RAM and dual RJ45 Ethernet ports built directly into the base, it handles high-speed data exchange natively. Bottom line—this module is the workhorse of your control network, and having a pre-configured 3BSE018157R1 ready to go is non-negotiable for plant reliability.
Troubleshooting Quick Reference
- Primary CPU Fault LED: 70% chance of internal processor failure or severe watchdog timeout. Check diagnostic logs via Control Builder. If unresponsive, swap the PM861AK01.
- Redundancy Switch Failure: 80% chance of CEX bus cable issue or secondary CPU fault. Verify the redundant link cables. Check the secondary module’s status LEDs.
- Communication Loss (Ethernet): 60% chance of bad RJ45 cable or port failure. Swap the patch cable. Test on CN2 instead of CN1. Verify IP configuration hasn’t been corrupted.
- Module Not Booting: 90% chance of 24VDC power supply issue. Measure voltage at the TP830 base terminals. Ensure it is within tolerance and properly grounded.
- Firmware Mismatch After Swap: 100% chance of revision incompatibility. Always verify the AK01 suffix matches. You may need to re-download the application or upgrade the backup CPU first.

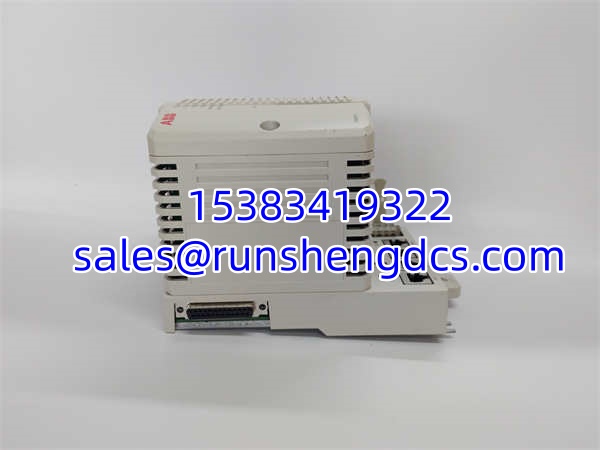

ABB 3BSE018157R1 PM861AK01
Application Scenarios & Pain Points
- Power Generation Auxiliaries: Coal or gas plants rely on this CPU for boiler feed pumps and cooling fans. Ground loops from nearby VFDs can fry the serial ports. Proper grounding at the TP830 base is mandatory.
- Petrochemical Safety Interlocks: Refineries use the AC 800M for critical safety logic. The PM861AK01 must execute deterministic scan times. High network traffic on the CEX bus can degrade performance if not properly segmented.
- Metallurgy Rolling Mills: Extreme electrical noise from massive DC drives. The 3BSE018157R1 requires isolated serial connections and shielded Ethernet to prevent data corruption during the rolling process.
- Real-World Case: An engineer at a pulp mill faced random CPU faults during high-humidity nights. The issue wasn’t the PM861AK01 itself, but condensation causing micro-shorts on the CEX bus connectors. After replacing the module and upgrading the cabinet climate control, the system stabilized.
Compatible Replacement Models
- ✅ Drop-in Replacement: PM861AK02. Same form factor and footprint. Supports enhanced redundancy switching. Verify firmware compatibility with your existing 800xA Control Builder project before swapping.
- ⚠️ Software Compatible: PM864AK01. Same AC 800M platform, different processor/memory specs. Requires hardware configuration update and application re-download. Plan for at least 4 hours of engineering labor.
- ❌ Hardware Incompatible: PM851AK01. Older AC 800M CPU with different base unit requirements. Will NOT physically fit or communicate on the same CEX bus. Do not attempt to substitute.
