Description
Key Technical Specifications
- Architecture: Triple Modular Redundancy (TMR)
- Input Channels: 16 Differential, DC-Coupled
- Input Voltage: 24V DC Nominal (Field Power)
- Signal Range: 0-5V DC (Standard), Programmable
- Resolution: 12-bit
- Update Rate: 10 ms
- Accuracy: < 0.15% Full Scale Range
- Isolation: 1500Vrms (Field to Logic)
- Input Overrange Protection: 150 VDC Continuous
- Diagnostics: PASS, FAULT, ACTIVE LEDs per Channel
- Safety Integrity: SIL 3 (IEC 61508)
- Mounting: Tricon Backplane Slot
Product Introduction
Process control loops don’t fail gracefully; they drift silently until a safety trip forces a shutdown. The TRICONEX AI3351 is a 16-channel analog input module that uses Triple Modular Redundancy to ensure a single sensor or internal circuit failure never causes a false plant shutdown. It belongs in your SIS or ESD system where analog precision matters.
This module’s 10 ms update rate and <0.15% accuracy mean you get deterministic signal processing even in electrically noisy environments. Honestly, the real value here is the TMR voting logic; two channels can fail, and the system still operates safely. If your current analog inputs are showing intermittent drift, don’t just blame the transmitter—check the AI3351’s diagnostic LEDs first.
Troubleshooting Quick Reference
| Fault | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| FAULT LED Solid | Internal Hardware Failure | 90% | Check event log in TriStation | Replace module; do not attempt field repair |
| Channel Reads Zero | No Field Power or Wire Break | 85% | Measure 24V at terminal block | Verify field power supply; check fuse |
| Intermittent Drift | Loose Terminal or EMI | 70% | Retorque screws; check shielding | Verify ground continuity; inspect cable |
| Channel Stuck High | Short to 24V in Field | 60% | Disconnect field wire; measure | Isolate field wiring; check junction box |
| TMR Mismatch | One Channel Failed | 50% | Review TMR diagnostic status | Module will auto-vote; schedule replacement |
| Comm Error | Backplane Connection | 40% | Reseat module firmly | Inspect backplane pins for corrosion |
Application Scenarios & Pain Points
- Refinery Process Control: High EMI from nearby VFDs couples into unshielded analog wiring, causing false pressure/temperature readings that trigger safety trips.
- Offshore Platforms: Salt spray and humidity corrode terminal blocks, causing high-resistance connections that mimic failing transmitters.
- Chemical Plants: Extreme temperature swings cause plastic connectors to expand/contract, leading to intermittent contact issues.

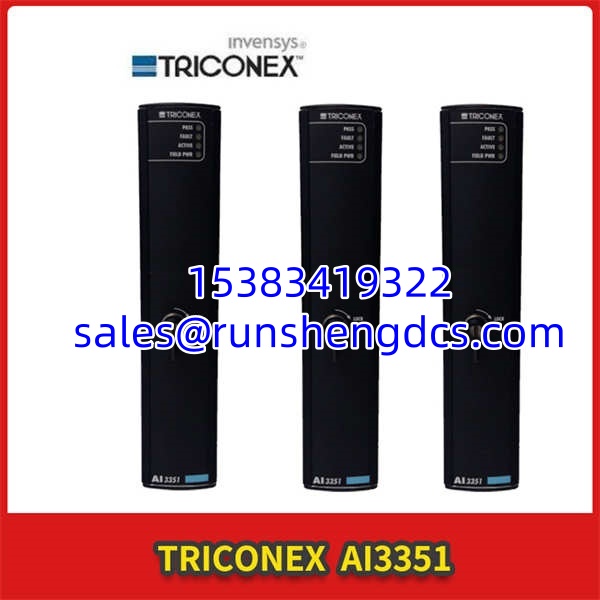

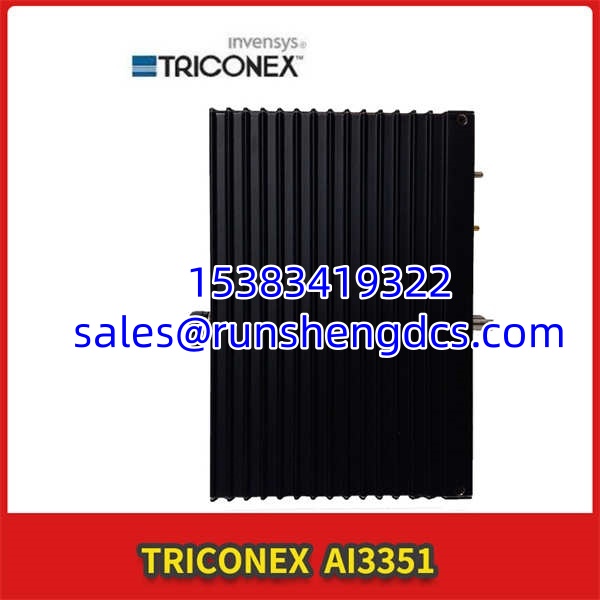

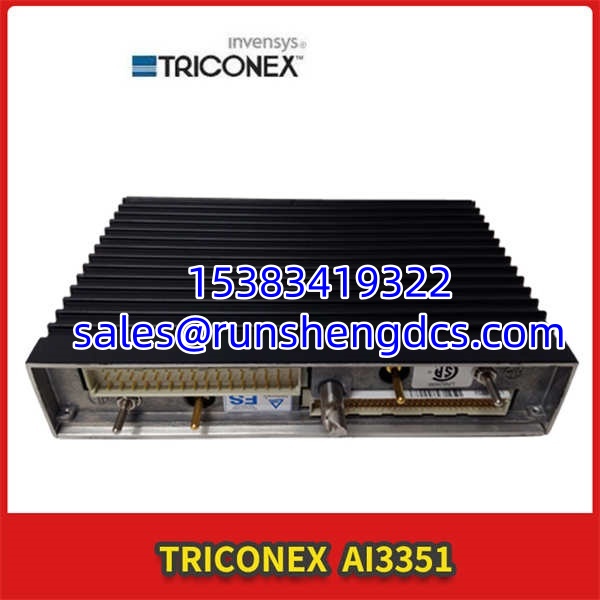

TRICONEX AI3351
Compatible Replacement Models
- ✅ Drop-in Replacement: TRICONEX AI3351 (Exact Match). The AI3351 is the standard 16-ch differential analog input. Cost:
(Safety premium applies).
- ⚠️ Software Compatible: TRICONEX AI3350 (Older Revision). Requires firmware verification in TriStation 1131. Labor: +1 hour for compatibility check and possible re-download.
- ❌ Hardware Incompatible: TRICONEX DI3351 (Digital Input). Different signal type, different slot keying. DO NOT FORCE. Will not fit and will damage backplane.
