Description
Key Technical Specifications
- Function: Digital Output (DO) Terminal Board
- System: Tricon TMR Safety Controller
- Compatible Modules: 3664, 3625, 3604E (Verify Pinout)
- Field Voltage: 24V DC (Typical)
- I/O Capacity: Supports up to 600 points (System dependent)
- Wiring Type: Screw Terminal / Spring Clamp (Verify Rev)
- Mounting: DIN Rail or Panel Mount
- Diagnostics: LED Indicators per Channel (Module Dependent)
- Isolation: Channel-to-Channel / Channel-to-Ground
- Condition: New Surplus / Refurbished
- Cross Reference: 9662-610 (Check Pinout), 9771-210
- Environment: -10°C to 60°C (Verify Enclosure Rating)
Product Introduction
Terminal boards are the unsung heroes of safety systems. They don’t make decisions; they just pass the word. The 9563-810 is the physical bridge between your Tricon DO module and the field solenoids. It handles the 24VDC switching, the fuse protection, and the messy field wiring that technicians inevitably short out during maintenance.
Why care about a piece of plastic and copper? Because a cracked terminal block or a corroded screw terminal looks exactly like a failed DO module in the diagnostics. You’ll swap a $4,000 card, only to find the new one faults immediately. The 9563-810 is cheap insurance. It’s passive, so it doesn’t drift, but it does fail mechanically. Check the screw torque. Check the backplane pins. Honestly, 80% of “DO Module Failures” are actually bad terminal boards.
Troubleshooting Quick Reference
| Fault | Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| DO Module FAULT | Backplane Pin Damage | 90% | Inspect gold fingers on 9563-810 | Straighten pins; clean with IPA. |
| Channel Dead | Blown Fuse / Open Wire | 85% | Measure 24V at terminal screw | Check fuse; verify field wiring. |
| Intermittent Signal | Loose Screw Terminal | 75% | Torque check all field wires | Retorque to spec; check for oxidized copper. |
| No LED on Module | Bad Backplane Contact | 60% | Reseat DO module firmly | Check for debris in slot; reseat. |
| Short Circuit Trip | Field Wiring Fault | 95% | Measure resistance to ground | Isolate field wires; check solenoid coil. |

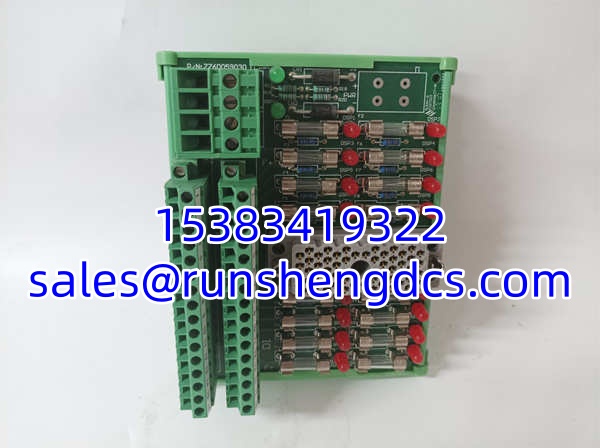

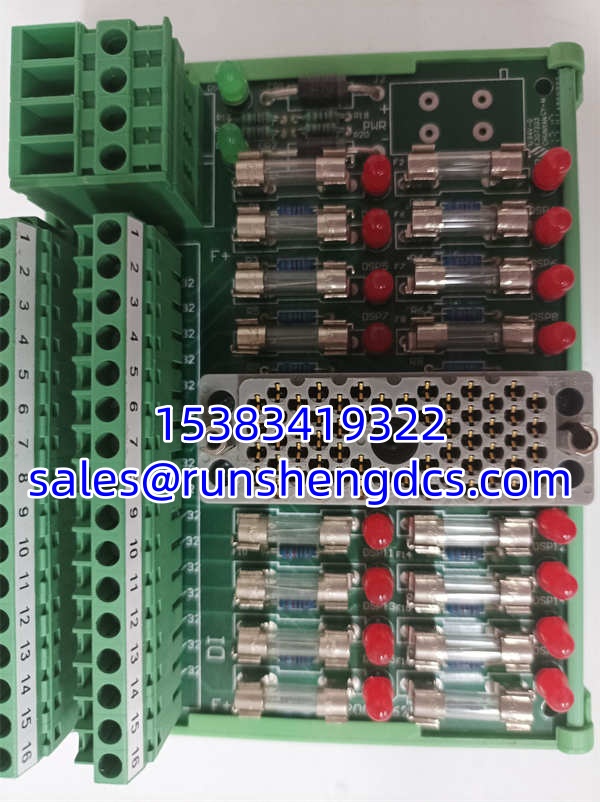

TRICONEX 9563-810
Application Scenarios & Pain Points
- Refinery ESD Valves: High vibration from compressors loosens terminal screws. Annual torque checks are mandatory. A loose wire here means a valve that won’t close during an emergency.
- Marine Platform: Salt air eats copper. Terminal boards without conformal coating fail in 2 years. Verify coating integrity before install.
- Power Plant Turbine Trip: 24VDC solenoids on long cable runs generate voltage spikes. Terminal board snubbers (if equipped) absorb the hit, not the DO module.
Compatible Replacement Models
- ✅ Drop-in Replacement: 9563-810. Exact match. Same pinout, same mechanical key. Cost: ~200–600 surplus.
- ⚠️ Software Compatible: 9662-610. Same family, different pinout. Requires rewiring. Labor: 4-8 hours + loop check. Verify pinout diagram first.
- ❌ Hardware Incompatible: 9563-800. Older revision. Different backplane connector. Do not force. Requires new DO module or adapter.
