Description
Key Technical Specifications
- Product Type: Controller / Communication Interface Module
- Communication Protocol: Profibus DP (Slave Expansion)
- Product Length: 153 mm
- Product Width: 121.5 mm
- Product Height: 49.5 mm
- Product Net Weight: 0.2 kg
- Target Platform: Panel 800 Series
- Core Features: High reliability, flexibility, and high performance
- Maintainability: Designed for easy maintenance and integration
- Typical Applications: Manufacturing, Industrial Automation, Energy, Transport

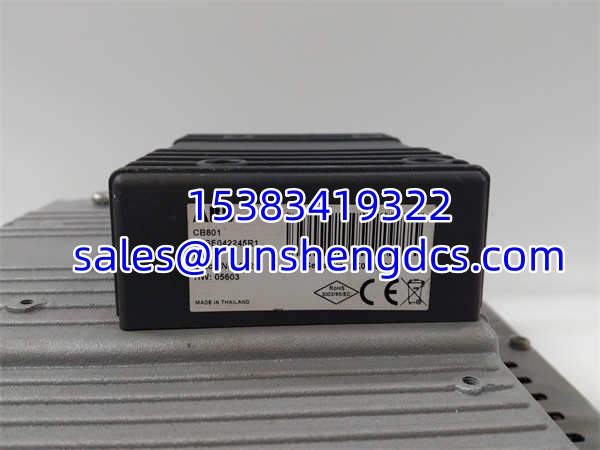

ABB 3BSE042245R1 CB801
Product Introduction (2 Paragraphs)
You’re troubleshooting a legacy Panel 800 HMI setup, and the Profibus DP network is dropping packets. The ABB CB801 3BSE042245R1 is the exact communication interface module designed to handle this. It acts as a Profibus DP slave expansion module, bridging the gap between the Panel 800 and the broader automation network. Honestly, finding a working 3BSE042245R1 today means you’re likely dealing with an aging DCS or PLC architecture that hasn’t been upgraded in years.
Why keep it running? Because ripping out a distributed control system costs hundreds of thousands of dollars. The ABB CB801 3BSE042245R1 gives you high reliability and flexible integration in a compact 153mm x 121.5mm x 49.5mm form factor. It weighs just 0.2 kg but carries the heavy lifting of process monitoring. Bottom line—it’s a specialized workhorse, but treat it like the aging asset it is.
Troubleshooting Quick Reference
- Fault: Profibus DP communication drops intermittently | Cause: Failing DP connector or bad termination resistor | Relevancy: 70% chance physical layer | Quick Check: Measure bus termination resistance (should be 110 ohms) | Fix: Replace DP cable or re-terminate ends
- Fault: Module not recognized by Panel 800 | Cause: Corrupt firmware or baseboard seating issue | Relevancy: 50% chance hardware seating | Quick Check: Reseat module on backplane, check pin alignment | Fix: Clean contacts with contact cleaner; re-flash if possible
- Fault: High latency on DP slave network | Cause: Bus overload or ground loop interference | Relevancy: 40% chance EMI | Quick Check: Check shield grounding at both ends | Fix: Isolate ground loops; reduce DP baud rate temporarily
- Fault: Module fails to power up | Cause: Blown internal fuse or backplane power failure | Relevancy: 60% chance power supply | Quick Check: Measure backplane 5VDC at module pins | Fix: Replace backplane power supply or swap module
- Fault: Intermittent process data corruption | Cause: Aging electrolytic caps on PCB | Relevancy: 30% chance component aging | Quick Check: Visual inspection for bulging caps | Fix: Replace module (board-level repair rarely cost-effective)
ABB 3BSE042245R1 CB801
Application Scenarios & Pain Points
- Manufacturing Assembly Lines: Legacy Panel 800 HMIs controlling robotic cells. The CB801 3BSE042245R1 handles Profibus DP slave expansion, but aging connectors cause intermittent signal loss during high-vibration operation.
- Energy Sector Substations: Process monitoring in harsh EMI environments. The 3BSE042245R1 bridges older control panels to modern networks, but ground potential differences degrade the DP interface over time.
- Transport & Logistics Conveyors: Distributed I/O expansion via Profibus DP. Cable routing near VFDs induces noise that corrupts slave communication. Shielding degradation is the silent killer.
Engineer at a paper mill faced repeated CB801 3BSE042245R1 failures every 12 months. Root cause wasn’t the module itself—it was a failing 5VDC backplane regulator sending voltage spikes through the Panel 800 rack. Replaced the PSU, added a line conditioner, and the modules stopped dying. Always check the backplane power first.
Compatible Replacement Models
- ✅ Drop-in Replacement: ABB CB801 3BSE042245R1 (Same exact model. Verify firmware version matches existing Panel 800 config. No recompile needed if identical revision.)
- ⚠️ Software Compatible: ABB CB801 alternate revisions (e.g., 3BSE042245R2). Same hardware family, different revision. May require Control Builder parameter adjustment. Budget ~2-4 hours engineering time for config migration.
- ❌ Hardware Incompatible: ABB CI854A or newer AC800M comm modules. Completely different backplane, different protocol stack. Requires full system redesign and new Panel 800 firmware. Do NOT attempt as a quick swap.
