Description
Key Technical Specifications
- Input Type: Analog Voltage (0-5V or 0-10V)
- Channel Count: 64 (Commoned)
- Architecture: TMR (Triple Modular Redundant)
- Resolution: 12-Bit
- Accuracy: <0.25% FSR (0°C to 60°C)
- Update Rate: 75 ms
- Input Impedance: 30 MΩ (DC)
- Overrange Protection: 150 VDC / 115 VAC Continuous
- Diagnostics: PASS, FAULT, ACTIVE LEDs
- Color Code: Copper Label
- Software: TriStation 1131
- Safety Rating: SIL 3 Capable
Product Introduction
Safety systems don’t tolerate “maybe.” When a reactor pressure hits 98% of trip setpoint, you need to know if that’s real or a 3704E drifting in the heat. This module handles 64 channels of analog input through three independent ADCs that vote on every value. It’s not a standard PLC card; it’s a safety-critical sensor interface that physically isolates each channel to prevent a single ground fault from taking down your entire ESD logic.
Why does the 75ms update rate matter? It’s slower than modern DCS, but it’s deterministic. You know exactly when the data arrives. The 12-bit resolution gives you 4096 counts across your range—enough for pressure, level, and temp, but don’t expect lab-grade precision for flow metering. Honestly, for safety trips, this is overkill; for process control, it’s adequate. The real value is the TMR architecture: two channels can fail, and the third still trips the plant safely. That’s the difference between a nuisance trip and a catastrophic event.
Troubleshooting Quick Reference
| Fault | Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| FAULT LED Solid | Internal ADC Failure | 95% | Check TriStation diagnostics | Replace module; RMA if under warranty. |
| Erratic Readings | Ground Loop / Noise | 80% | Measure shield-to-ground voltage | Isolate shield at panel; check grounding. |
| All Channels High | Open Common Wire | 70% | Measure common terminal to ground | Verify common bus continuity; reseat connector. |
| Single Channel Dead | Field Wiring Fault | 60% | Measure voltage at terminal block | Check fuse, sensor, and wire break. |
| Intermittent FAULT | Backplane Pin Damage | 40% | Inspect gold fingers with magnifier | Clean contacts; check backplane socket. |

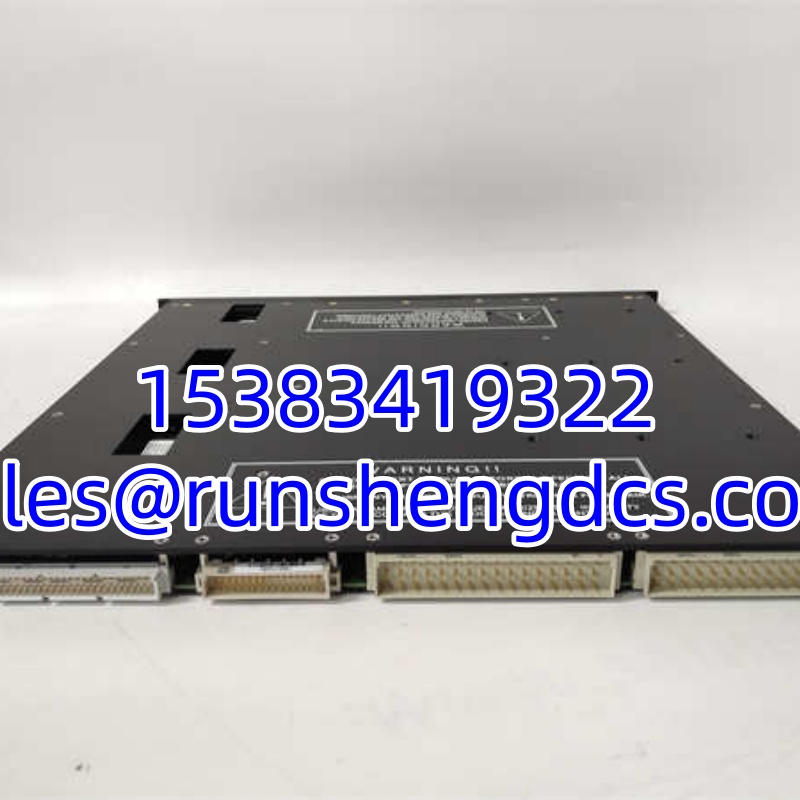

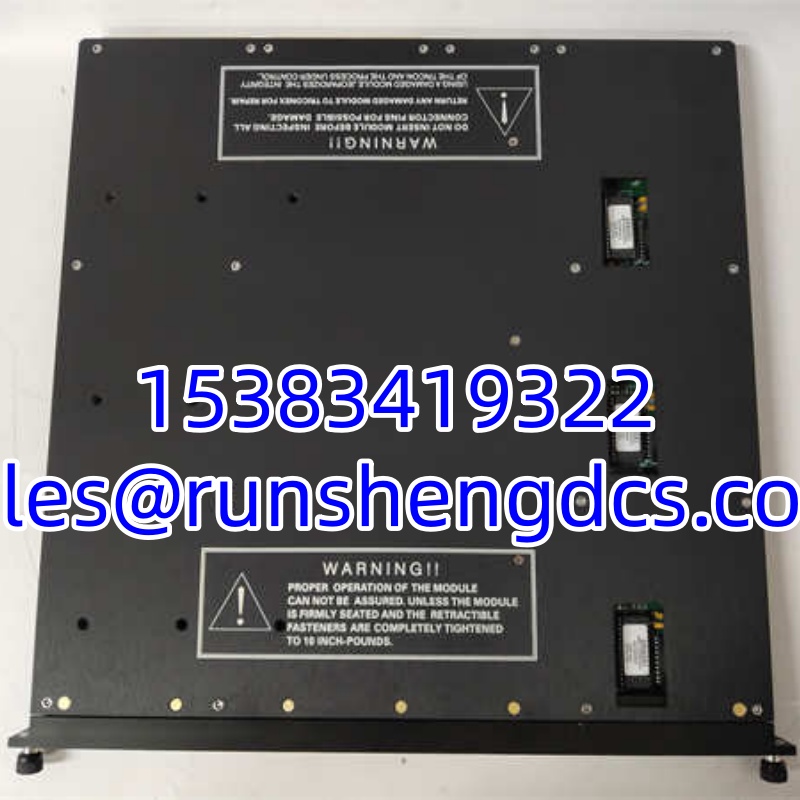

TRICONEX 3704E
Application Scenarios & Pain Points
- Refinery ESD System: Pressure transmitters near compressors see massive EMI. Standard AI cards saturate; the 3704E’s 150V overrange protection and TMR filtering ignore the spikes, only tripping on sustained overpressure.
- Power Plant Turbine Trip: Bearing temp sensors in 80°C ambient. Accuracy drift kills reliability. This module’s <0.25% FSR spec holds across the full temp range, no recalibration needed during outage.
- Chemical Reactor Level Control: 64 channels in one card reduces wiring. But commoned points mean one bad sensor can drag the common reference. Always use isolated transmitters or barrier strips.
Compatible Replacement Models
- ✅ Drop-in Replacement: 3704E. Exact match. Same copper label, same 64-point commoned config. No software changes. Cost: ~3,500–5,000 surplus.
- ⚠️ Software Compatible: 3720. 64-point, but isolated channels. Better noise immunity, but requires TriStation recompile and I/O reassignment. Labor: 4-8 hours + loop check.
- ❌ Hardware Incompatible: 3501E. Digital input module. Different pinout, different function. Do not confuse part numbers; 35xx is DI, 37xx is AI.
