Description
Key Technical Specifications
- Model Number: CC-PDIL01
- Order Code: 51308388-175
- Manufacturer: Honeywell
- Series: Experion C300 Control System
- Module Type: Digital Input (DI) Expansion Module
- Channel Count: 32 Channels
- Input Voltage: 24V DC
- Cable Length: Up to 500m (shielded) or 300m (unshielded)
- Installation: Modular design with Quick Start guide for rapid commissioning
- Application: Valve status monitoring, sensor signal acquisition
Functional Role & Application Analysis
The Honeywell CC-PDIL01 serves as a high-density digital input module within the Experion C300 architecture. It solves the challenge of acquiring discrete status signals from field devices over long distances without signal degradation. By supporting up to 500 meters of shielded cabling, this module allows engineers to place I/O closer to the process while keeping the controller in a safe, centralized control room. The modular design and built-in startup wizards significantly reduce installation and commissioning time. It reliably captures critical discrete states such as valve open/closed positions, pump run statuses, and limit switch triggers.
Typical use cases include:
- Process Plant Monitoring: Acquiring discrete signals from valves, sensors, and limit switches in chemical and petrochemical facilities.
- Power Generation: Monitoring equipment statuses across large turbine and boiler systems.
- Oil & Gas Facilities: Collecting high-speed digital inputs in refineries and natural gas processing plants.
- Legacy C300 Upgrades: Replacing failed DI modules in aging Honeywell Experion systems to restore critical I/O functionality.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. A failed input module leaves operators blind to critical process states. We have established a rigorous, multi-stage testing process to ensure every product we ship is 100% functional. Every unit undergoes comprehensive validation to guarantee it meets industrial standards.
- Visual & Component Inspection: All parts undergo professional cleaning and visual inspection to ensure no physical damage, corrosion, or compromised backplane connectors.
- Live System Test: The module is installed in a live Honeywell C300 test rack and run for 24 hours to verify continuous operation and FTEB communication.
- Full-Function Diagnostics: We simulate 24VDC digital signals across all 32 channels to test full-range response, isolation, and logic accuracy.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

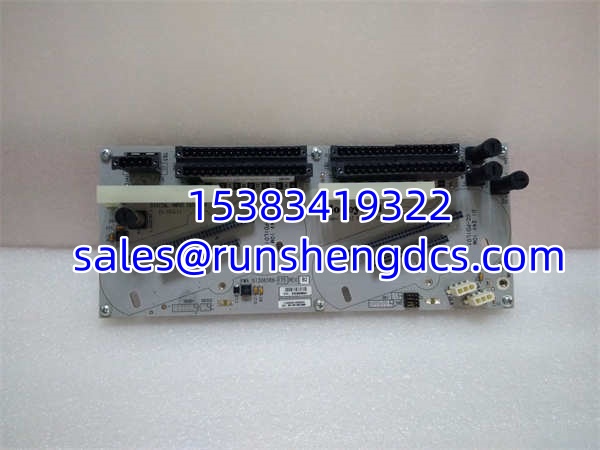

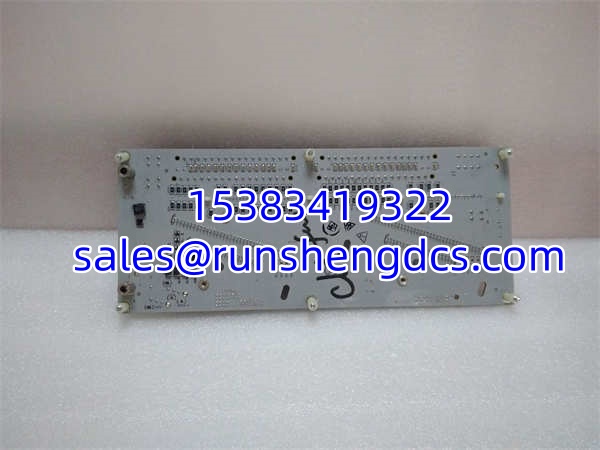

Honeywell CC-PDIL01 51308388-175
Compatibility & Migration Paths
To ensure this CC-PDIL01 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to costly installation delays.
- Firmware/Hardware Revisions: You must confirm your C300 controller firmware supports this specific DI module revision. Check your system configuration in Control Builder.
- Required Components: This module must be paired with the correct non-redundant DI terminal board (CC-TDIL01) or redundant terminal board (CC-TDIL11). Verify your existing FTA part number.
- Replacement & Alternatives: The CC-PDIL01 is a standard 24VDC module. If your application requires Sequence of Events (SOE) high-speed timestamping, you must use the CC-PDIS01 instead. For high-voltage inputs, specify the CC-PDIH01.
- Get Expert Help: Unsure about your terminal board compatibility or C300 firmware version? Contact our technical team today for a free compatibility check.
