Description
Key Technical Specifications
- Product Model: TRICONEX 3301
- Possible Variant: 3501-3301
- Brand: Triconex / Schneider Electric
- Product Type: Digital Input Module
- Architecture: Triple Modular Redundancy / TMR
- Input Type: Dry contact / discrete signals
- Typical Channels: 8 or 16 channels, depending on sub-model and hardware version
- Input Voltage Range: Commonly 0–24 VDC or 0–48 VDC depending on version
- Safety Application: Part of Triconex SIS; system SIL capability depends on full application and certification
- Configuration Tool: TriStation 1131
- Installation: Tricon I/O rack / chassis
- Typical Use: ESD, F&G, process interlocks, critical equipment protection
Product Introduction
On a Tricon safety system, the digital input module is not just reading “on/off.” It is deciding whether a field contact is a real process alarm, a wiring fault, or a dangerous failure. The TRICONEX 3301 is a TMR digital input module built for that job.
It accepts dry-contact signals from field devices and passes them into the Tricon controller using triple-redundant processing. That matters in ESD, fire-and-gas, and process interlock applications, where one bad channel, one loose wire, or one failed input circuit can create a spurious trip — or worse, hide a real safety demand.
Troubleshooting Quick Reference
| Fault | Likely Cause | Quick Check | Fix |
|---|---|---|---|
| Channel stuck at 0 | Field contact open, wiring fault, or fuse issue | Measure voltage at DI terminal | Check 24/48 VDC supply, field contact, and wiring continuity |
| Channel stuck at 1 | Shorted field contact or wiring fault | Disconnect field wire and recheck | Isolate field device; inspect terminal block |
| Intermittent input | Loose terminal, corroded pin, or bad backplane contact | Reseat module per procedure | Clean terminals; check backplane pins |
| Module fault LED active | Module fault or configuration mismatch | Read Tricon diagnostics in TriStation 1131 | Verify module type matches project configuration |
| Wrong channel state | Wrong voltage range or wiring polarity | Compare nameplate to field wiring | Confirm 24 VDC vs 48 VDC version and wiring scheme |
| Module not recognized | Wrong variant or revision | Check nameplate: 3301, 3501-3301, revision | Replace with exact matching hardware/revision |

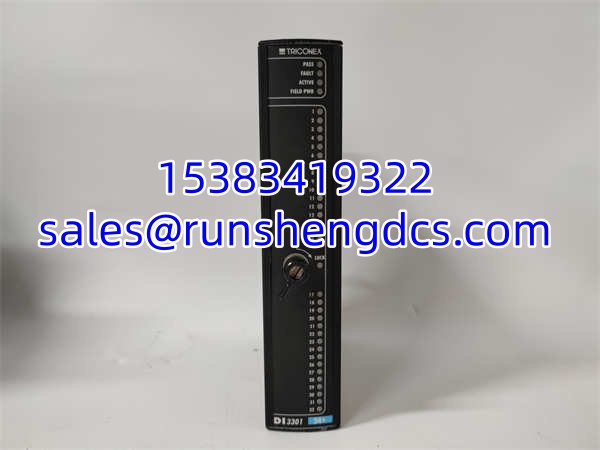

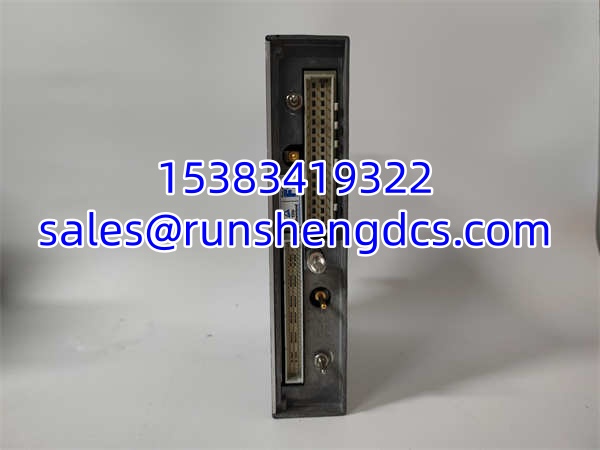

TRICONEX 3301
Application Scenarios & Pain Points
- Oil and gas / ESD systems: Emergency shutdown buttons and pressure switches must be read reliably. The pain is intermittent DI faults that look like field problems but may be module or wiring related.
- Petrochemical plants: Reactor and compressor protection depends on accurate discrete inputs. A failed channel can cause nuisance trips or mask a real safety demand.
- Power generation: Turbine overspeed, lube oil pressure, and trip signals are safety-critical. The bottleneck is often proving the input path, not the logic itself.
- Chemical processing: Fire-and-gas detector contacts feed the SIS. Corrosion, moisture, and terminal degradation can create false alarms.
- LNG / offshore facilities: Vibration, salt air, and temperature swings increase the risk of backplane contact issues and intermittent DI channels.
