Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140CHS11000 |
| Product Type | Modicon Quantum Hot Standby synchronization module |
| Series | Modicon Quantum Hot Standby (HSBY) |
| Synchronization Medium | Fiber-optic link |
| Transmission Rate | 10 Mbit/s |
| Switching Time | 13–48 ms typical |
| Bus Current | 700 mA |
| Front-Panel Controls | Key switch, A/B designation switch, program update button |
| Compatible CPUs | Quantum Hot Standby CPUs (e.g., 140CPU67160, 140CPU67060) |
| Product Status | Legacy / obsolete spare |
Product Introduction
In critical process lines, a single CPU failure should not mean a full production stop. The Schneider 140CHS11000 is the synchronization backbone of the Modicon Quantum Hot Standby architecture. It keeps the standby CPU aligned with the primary controller, mirroring application memory, I/O images, and communication state so that failover occurs without operator intervention.
This module is not a general-purpose communication card. It is purpose-built for Quantum Hot Standby pairs, typically working alongside CPUs such as 140CPU67160 or 140CPU67060. When the primary controller loses power, encounters a hardware fault, or stops responding, the standby unit can take over within tens of milliseconds. For aging water treatment plants, power generation auxiliaries, chemical process racks, and legacy manufacturing cells, a tested 140CHS11000 is often the fastest way to restore redundancy.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm full model 140CHS11000, serial number, hardware revision, and country of origin. Inspect connectors, front-panel switches, and LED indicators for physical damage.
- Visual & Mechanical Inspection — Check for corrosion, cracked housings, damaged fiber ports, and loose front-panel components. Verify that the key switch and A/B selector operate smoothly.
- Hot Standby Functional Test — Install into a compatible Quantum Hot Standby test rack with matched CPUs. Verify power-up, LED status, synchronization handshake, and failover behavior.
- Fiber Link & Timing Check — Confirm fiber-optic link integrity, synchronization stability, and failover timing within the expected 13–48 ms range under test conditions.
- Final QC & Anti-Static Packaging — Seal in ESD-safe packaging with test results, nameplate photos, revision data, and compatibility notes. Include fiber port caps if removed during testing.
Field Engineer Gotchas
- It is not a drop-in I/O module. The 140CHS11000 is a Hot Standby synchronization unit. Replacing it without matching CPUs, firmware, and fiber cabling will not restore redundancy.
- Fiber cable type matters. Quantum Hot Standby systems use specific fiber-optic links. Using the wrong cable length or connector type can prevent synchronization or cause intermittent faults.
- Primary/standby assignment must be correct. The A/B designation switch and key switch positions determine which rack is primary and which is standby. Incorrect settings can block synchronization.
- Synchronization is not instant. Even healthy systems show a brief transition window during failover. Do not assume a 13–48 ms switch means zero process disturbance; verify downstream equipment tolerance.
- Firmware and CPU revision must match. A mismatched CPU or outdated Hot Standby configuration can prevent the standby controller from accepting program transfer.
- Do not confuse it with 140CHS21000/32000. 140CHS21000 is a Hot Standby kit and 140CHS32000 relates to remote I/O termination. They are not direct substitutes for 140CHS11000.

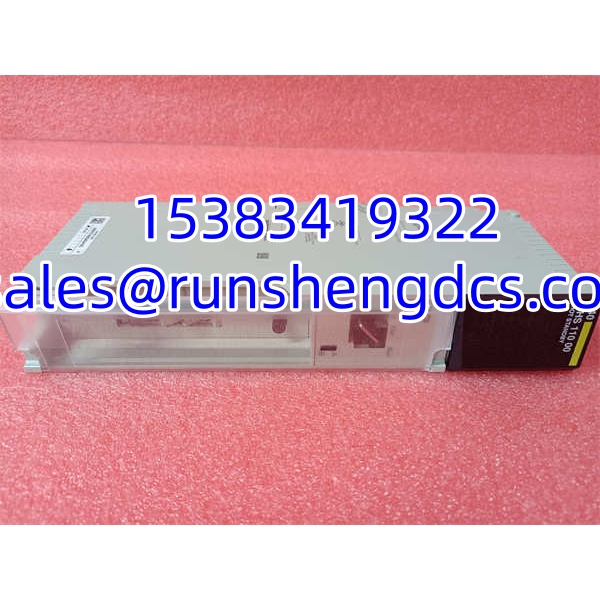

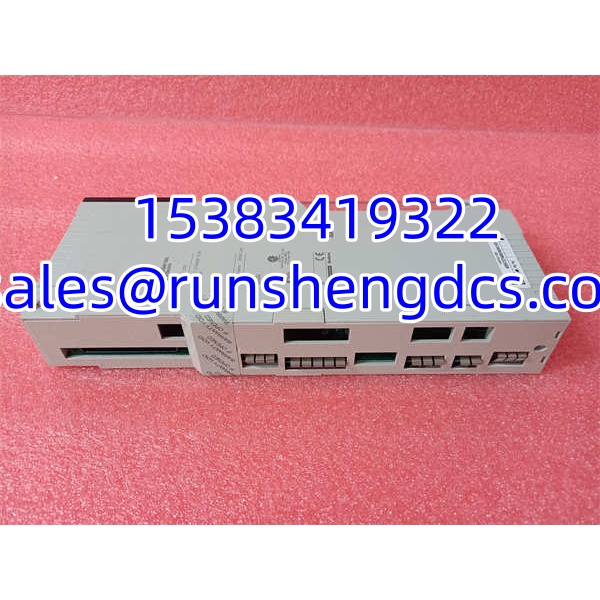

Schneider 140CHS11000
Application Scenarios
- Water and wastewater treatment plants. Maintains continuous control of pumps, valves, and filtration trains where unscheduled shutdowns are costly.
- Power generation and utilities. Supports auxiliary process control, fuel handling, and balance-of-plant systems requiring high availability.
- Chemical and pharmaceutical processes. Keeps critical batch and continuous processes stable during CPU faults.
- Legacy manufacturing and material handling lines. Extends the life of existing Modicon Quantum Hot Standby installations while migration plans are developed.
FAQ
Is 140CHS11000 still in production?
It is a legacy Modicon Quantum component. Supply now depends on surplus, refurbished, or tested used inventory.
What does the 140CHS11000 do?
It synchronizes the primary and standby Quantum CPUs and manages automatic failover in a Hot Standby system.
Can I use it with any Quantum CPU?
No. It must be used with Quantum Hot Standby-compatible CPUs and the correct Hot Standby configuration. It is not a general-purpose communication module.
What is the switching time?
Typical switching time is 13–48 ms, depending on system configuration and fault conditions.
Does it require fiber-optic cables?
Yes. The Hot Standby synchronization link uses fiber-optic cabling. Cable type and length must match the installed topology.
How do I confirm compatibility?
Provide photos of the module nameplate, installed CPUs, fiber connectors, and current Hot Standby configuration. The CPU model and firmware revision are critical.
