Description
Key Technical Specifications
- Model Number: T8311
- Manufacturer: ICS Triplex (Trusted)
- Series/System: Trusted TMR Industrial Control System
- Module Type: Expander Interface Module
- Architecture: Hardware Implemented Fault Tolerant (HIFT) TMR
- Voting Logic: 3-2-0 Fault Tolerant Operation
- Safety Certification: TÜV Certified IEC 61508 SIL 3
- Expansion Capacity: Supports up to 4 or 7 expansion racks (via T8312 adapters)
- System Scale: Supports up to 10 expansion racks and 128 I/O modules total
- Hot Swap: Fully supported without program download or system downtime
- Diagnostics: Comprehensive module-level and bus-level monitoring
Functional Role & Application Analysis
The ICS TRIPLEX T8311 is the critical communication bridge that allows a Trusted TMR controller to scale beyond its local chassis. In safety-critical environments, you often need hundreds of I/O points, but cramming them all into one rack creates a single point of failure and physical space constraints. The T8311 solves this by providing a high-bandwidth, fault-tolerant link to remote expansion racks. It acts as the “master” interface on the module interconnect bus (IMB), ensuring that data flows reliably even if a cable degrades or an expansion rack loses power.
Engineers deploy this module in high-integrity safety instrumented systems:
- Large-Scale ESD Systems: Expanding Emergency Shutdown System I/O across multiple racks to monitor hundreds of valves and sensors across a refinery or offshore platform.
- Fire & Gas Detection: Distributing F&G detectors across a facility while maintaining a centralized, SIL3-rated TMR controller.
- Turbine & Compressor Control: Adding specialized speed monitoring (T8442) and mixed TMR modules to a core controller without overloading the main processor.
- Legacy System Maintenance: Sourcing exact replacements for failed expander interfaces in aging Trusted systems where migrating to a newer platform is not currently feasible.
Our Quality Standard & Testing Process
Safety system components cannot have intermittent faults. A marginal T8311 might pass basic power-on tests but fail under TMR voting stress. We test these modules to simulate real fault conditions.
- Visual & Component Inspection: We inspect the IMB and expander bus connectors for pin damage, oxidation, and verify the HIFT TMR ASICs show no signs of thermal degradation.
- Live System Test: The module is installed in a Trusted test chassis and run for 24 hours to verify stable TMR synchronization and IMB communication.
- Full-Function Diagnostics: We inject simulated faults on the expander bus to verify the module’s fault containment and alarm generation. We confirm hot-swap functionality and diagnostic reporting.
- Warranty Backing: Only modules that pass all TMR and bus diagnostics ship with our 12-month warranty. Any module showing timing marginality is rejected.

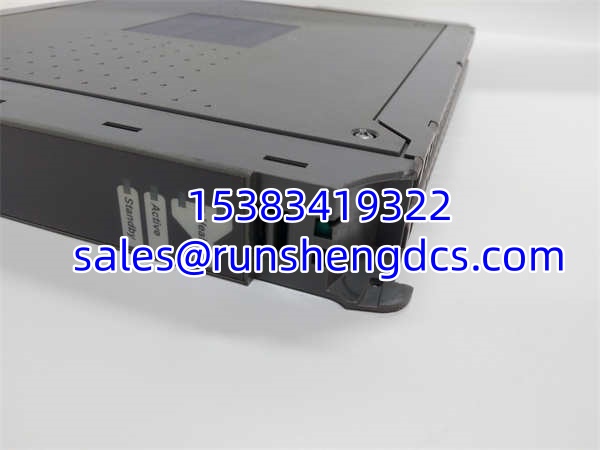

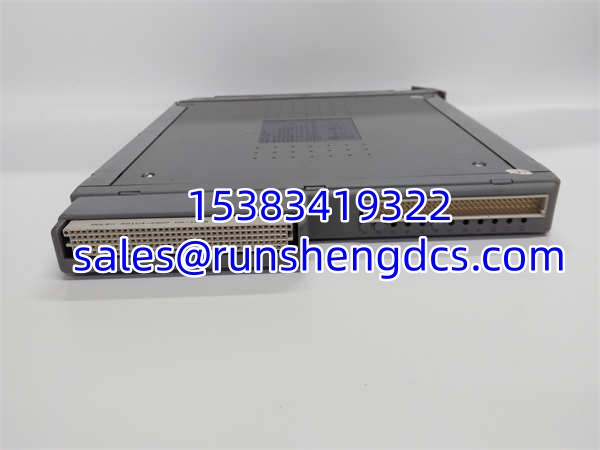

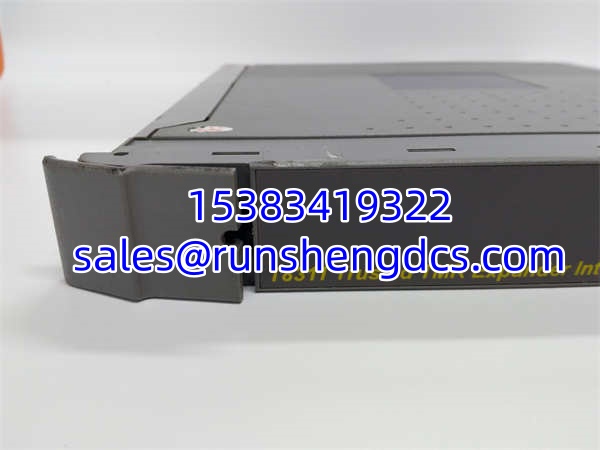

ICS TRIPLEX T8311
Compatibility & Migration Paths
The Trusted platform has strict hardware revision requirements. The T8311 must match your system’s generation. Verify these points before ordering:
- Adapter Matching: The T8311 does not connect directly to expansion racks. You must use either the T8312-4 (4-rack) or T8312-7 (7-rack) expander interface adapters. Ensure you have the correct adapter for your expansion count.
- CCoat Variants: If your system uses conformal-coated modules for harsh environments, you need the T8311C variant. Standard and CCoat modules should not be mixed in the same chassis.
- Processor Compatibility: Verify your TMR processor module (e.g., T8110B, T8403) supports this revision of the . Older processors may require a firmware update to recognize newer expander interfaces.
- System Scale Limits: Remember the hard limit: maximum 10 expansion racks and 128 I/O modules. If you exceed this, you need a second controller chassis.
- Get Expert Help: Unsure about your Trusted system’s generation or adapter requirements? Contact our technical team with your controller serial number for a free compatibility check.
