Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | T8231 |
| Manufacturer | ICS Triplex / Rockwell Automation |
| Product Type | TMR Power Supply Module |
| Output Voltage | 24 VDC |
| Output Power | 750 Watts |
| Input Voltage | 85-264 VAC (Universal) |
| Redundancy | Triple Modular Redundant (TMR) |
| Operating Temp | -20°C to +60°C |
| Chassis Compatibility | T8240 Power Rack |
| Protection | Overload, Short Circuit, Overvoltage |
| Mounting | Plug-in Backplane |
| Dimensions | Standard Trusted Module Form Factor |
Product Introduction
In a Triple Modular Redundant (TMR) safety system, the logic is only as good as the power feeding it. The ICS TRIPLEX T8231 is the 750W workhorse designed specifically for the Trusted T8240 power chassis. It takes universal AC input and converts it to a clean, isolated 24VDC rail. The T8231 isn’t just a power supply; it’s a critical node in the voting architecture. If one supply fails, the other two continue to feed the bus without a glitch.
The real engineering value of the ICS TRIPLEX T8231 is its fault tolerance. It includes built-in diagnostics that report health status back to the TMR processor, allowing the system to vote out a failing supply before it causes a trip. These units run hot and hard in power plant BOP and turbine control panels. Bottom line — when you’re maintaining a Trusted system, you don’t use generic industrial power supplies. You need the T8231 to maintain the integrity of the TMR architecture.
QA/QC Transparency SOP
Power supplies are the most stressed component in any rack. Here is how we verify the ICS TRIPLEX T8231:
- Intake & Origin Verification: We inspect the for physical damage, check the date code, and verify the backplane connector pins are straight and free of corrosion. We also check the cooling fan (if equipped) for free rotation.
- Live Functional Testing: The module is installed in a T8240 test chassis. We apply 120VAC and 240VAC to verify universal input compatibility. We verify the 24VDC output is within tolerance under no-load conditions.
- Electrical Parameter Tests: We apply a calibrated electronic load to pull the full 750W (approx. 31A). We verify voltage regulation stays within spec and check ripple current. We also test the over-voltage and short-circuit protection circuits to ensure they trip correctly.
- Firmware/Config Verification: We verify the module’s diagnostic reporting via the backplane. The must correctly report its health status to the test controller.
- Final QC & Anti-Static Packaging: After a 2-hour full-load burn-in, the is cooled, cleared, labeled with test data, and sealed in an anti-static bag.
Field Engineer Gotchas
- T8240 Chassis Configuration: The is designed for the T8240 power chassis, which typically holds three power modules. Risk: Installing a in the wrong slot or mixing it with incompatible modules can cause voting faults. Fix: Always verify your chassis configuration. A standard T8240 setup uses two modules and four blind plates (T8235).
- Fan Failure: The has an internal cooling fan. After 10+ years, these fans fail. Risk: Overheating and thermal shutdown. Fix: Listen to the rack. If the fan is loud, grinding, or not spinning, replace the immediately. Don’t wait for the thermal fault.
- Capacitor Aging: These power supplies are old. The electrolytic capacitors inside the can dry out, causing excessive ripple. Risk: The supply passes a no-load test but fails under load. Fix: Always buy from a supplier that does full-load testing. Our burn-in catches this.
- Blind Plate Requirement: The chassis has 6 slots. If you only have two modules, you MUST install blind plates (T8235) in the empty slots. Risk: Missing blankers disrupt airflow and can cause EMI issues. Fix: Count your slots. 2 supplies + 4 blind plates = correct configuration.

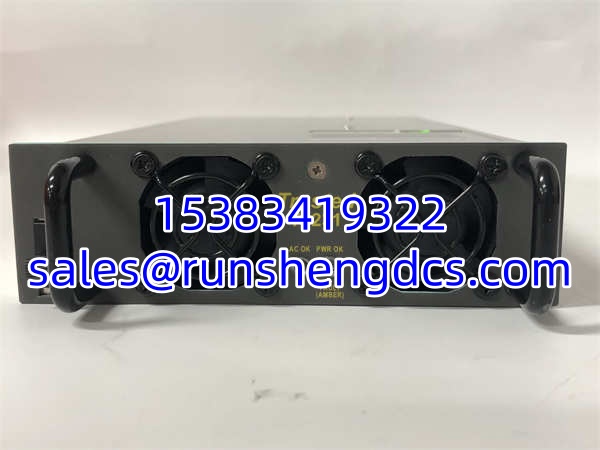

ICS TRIPLEX T8231
Application Scenarios
- Gas Turbine Control Systems: The is the standard power supply for GE Mark V and Mark VIe turbine control retrofits using the Trusted platform. The TMR architecture ensures that a single power supply failure doesn’t cause a turbine trip. The 750W capacity handles the solenoid loads during startup and shutdown transients.
- Fire and Gas (F&G) Safety Systems: In offshore platforms and refineries, the powers the safety controllers that monitor for hydrocarbon leaks and fire. The triple redundancy means the F&G system remains operational even if two power supplies fail simultaneously. The diagnostic reporting allows operators to identify a degraded supply before it becomes a critical failure.
- Real-World Failure Case: A power plant had a Trusted system reporting intermittent “Power Supply Fault” alarms. Maintenance replaced the , but the alarm returned. Root Cause: The backplane connector on the chassis had a cracked solder joint on the 24VDC bus bar. The vibration from the turbine building had caused a cold solder joint. Resolution: The backplane was reflowed, and a new was installed. Lesson: When a power supply fails repeatedly, always inspect the backplane.
FAQ
No. The is designed to work in a TMR voting scheme. A standard power supply doesn’t have the diagnostic reporting or the fault-tolerant output stage required by the Trusted controller. Using a generic supply will cause the system to fault.
Typically, you need two modules for redundancy, plus four T8235 blind plates. The chassis has six slots. You can install three modules for maximum redundancy, but two is the standard configuration. Always check your system documentation.
What does the T8235 blind plate do?
The T8235 is a passive filler module that occupies an empty slot in the chassis. It maintains proper airflow and EMI shielding. Never leave slots empty in a Trusted power chassis. The T8235 is inexpensive and critical for system reliability.
Yes, the supports hot-swap. You can remove and replace a failed module without shutting down the system. The TMR architecture ensures the remaining supplies continue to power the bus. However, always follow your site’s safety procedures and verify the system is in a stable state before swapping.
The is a 750W power supply and will generate significant heat. Normal operating temperature is up to 60°C. However, if the module is too hot to touch, check the internal fan. A failed fan is the most common cause of overheating. Also verify that the blanking plates are installed correctly to maintain airflow.
Generally, yes. The revisions are typically backward compatible. However, always verify with the Trusted hardware manual. Mixing revisions can sometimes cause minor diagnostic differences, but the TMR voting should still function correctly. When in doubt, match the revision of your existing modules.
