Description
Key Technical Specifications
- Input Voltage: 18V to 32V DC (Nominal 24V)
- Power Routing: Direct connection to Engineering Card
- Protection: On-board fuse, reverse polarity, short circuit
- Filtering: RFI (Radio Frequency Interference) suppression
- Auxiliary Input: Supports backup battery connection (AUX)
- Isolation: PSU and AUX connections diode-isolated
- Termination: 2-part terminal block TB1 (hot-swappable)
- Operating Temp: 0°C to 70°C
- Humidity: 0-90% non-condensing
- Dimensions: 17cm x 2.5cm x 11.2cm
- Weight: 0.165 kg
- Certification: CE
Product Introduction
Rack goes dark, and the first thing you check isn’t the CPU—it’s the power entry. The 05701-A-0325 is the front door for DC power in a System 57 sub-rack, taking your 24V supply and distributing it through the backplane to every card in the slot. It’s not a logic card; it’s a glorified, fused distribution block with RFI filtering and reverse polarity protection so one wiring mistake doesn’t fry your entire analyzer system.
Why keep spares? Because when this card fails, nothing in that sub-rack works. You get a 2-part TB1 terminal block that lets you pull the card without chasing every wire, plus diode isolation between main and backup battery inputs. Honestly, for gas detection panels running 24/7, this is the cheapest insurance against a total rack blackout. Just verify your load current if you’re stacking more than eight 5704 catalytic cards—backplane trace limits are real.
Troubleshooting Quick Reference
- Fault: Entire Sub-Rack Dead | Cause: Blown On-Board Fuse or No Input Power | Relevancy: 95% | Quick Check: Measure 24V at TB1 terminals | Fix: Verify external PSU; replace 05701-A-0325 if input is good
- Fault: Intermittent Rack Resets | Cause: Loose TB1 Connection or Backplane Pin | Relevancy: 80% | Quick Check: Reseat card; torque TB1 screws | Fix: Clean backplane pins; verify wire strip length
- Fault: Backup Battery Not Charging | Cause: AUX Diode Failure or Wiring | Relevancy: 70% | Quick Check: Measure voltage at AUX terminals | Fix: Verify battery polarity; check AUX fuse if present
- Fault: Card Overheating | Cause: Excessive Backplane Load or Short | Relevancy: 60% | Quick Check: Count installed 5704 cards; measure rail current | Fix: Reduce card count or add dedicated power feed via relay interface

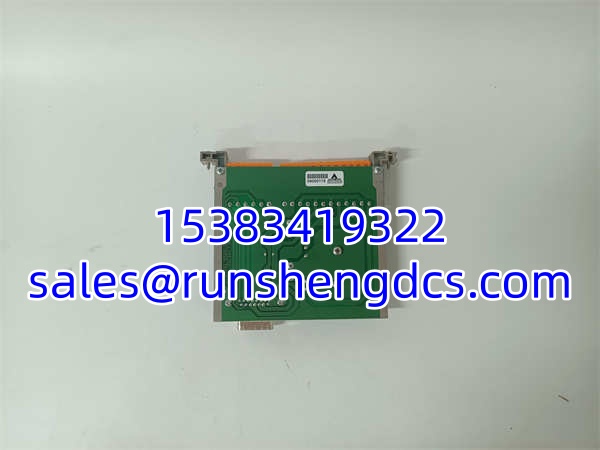

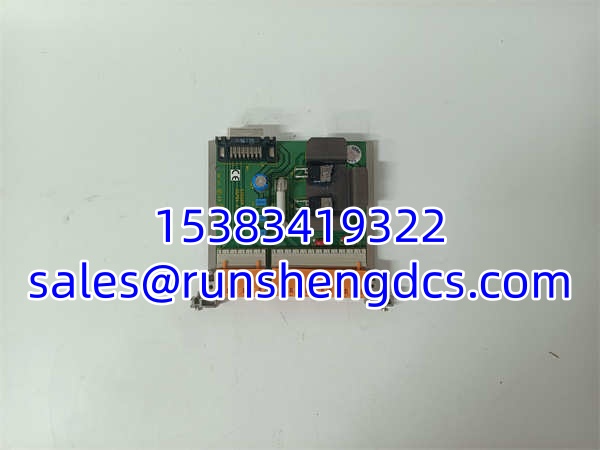

Honeywell 05701-A-0325
Application Scenarios & Pain Points
- Offshore Gas Detection: Salt spray corrodes TB1 contacts; periodic inspection prevents voltage drop under load.
- Refinery Analyzer Shelters: Ambient temps hit 65°C; card derates but backplane resistance increases, causing brownouts.
- Legacy Water Treatment: 20-year-old backplanes have oxidized pins; new card won’t seat properly without cleaning.
Compatible Replacement Models
- ✅ Drop-in Replacement: 05701-A-0325 (New Surplus). Same wiring, same fuse, same TB1 layout. Cost varies wildly (980–6,990); verify date code matches existing rack firmware.
- ⚠️ Software Compatible: 05701-A-0326. Slight revision, same function. Labor: 30 mins to verify pinout; no config changes needed.
- ❌ Hardware Incompatible: 05701-A-0361 (Engineering Card) or 05704-A-0121 (Relay Card). Different function, different wiring. Do not buy unless migrating the entire System 57 panel; requires full re-engineering.
