Description
Key Technical Specifications
- Product Model: F3-DIO-88-01-982200425
- Manufacturer: HIMA
- Channel Configuration: 8 Digital Inputs (DI), 8 Digital Outputs (DO)
- Output Type: DO+ (L grounded), DO- (S+ grounded), Pulse Outputs
- Safety Integrity Level: SIL 3 (IEC 61508)
- Operating Voltage: 24 VDC
- Communication: SafeEthernet / HiMatrix Bus
- Diagnostics: Built-in wire break, short circuit, and cross-circuit detection
- Enclosure: Compact Metal Housing
- Operating Temp: 0°C to +60°C
Product Introduction
Safety system failures don’t give you a second chance. The HIMA F3-DIO-88-01-982200425 is a compact, metal-housed digital I/O module built specifically for safety-critical environments. Sitting in the HiMatrix F3 series, it acts as the physical interface between your safety controller and the field—reading emergency stop states and driving final control elements when process variables go sideways.
Bottom line—this module is your last line of defense, and it’s discontinued. You need to verify the hardware revision index (HW Rev.) on the nameplate matches your existing rack. It features comprehensive internal diagnostics (wire breaks, shorts, cross-circuits) that will trigger a fault LED and generate an error code before a dangerous failure occurs. Always check the FW Rev. against your safety designer configuration to avoid integration headaches.
Troubleshooting Quick Reference
- Fault LED Flashing: Internal or field wiring fault. 90% chance it’s a field issue. Check for wire breaks, shorts to ground, or cross-circuits between parallel lines. Read the diagnostic error code via Safety Designer.
- Inputs Stuck Low: Open circuit or tripped E-stop. Measure voltage at the DI terminal. If 24V is present but the channel reads low, the input stage is likely damaged.
- Outputs Not Energizing: Load fault or safety logic lockout. Verify the safety controller is commanding the output. Check for a short on the DO+ or DO- line—the module will inhibit output to prevent unsafe states.
- Comm LED Off: Bus communication lost. Check the HiMatrix bus connector seating. Verify the module’s system ID matches the controller configuration.
- Module Won’t Power Up: Blown internal fuse or bad backplane power. Measure 24V at the module’s power pins. If voltage is good but no LEDs, the module is dead.
Application Scenarios & Pain Points
- Oil & Gas ESD Systems: Emergency shutdown logic in hazardous areas. Pain point: False trips from field wiring degradation. The F3-DIO-88-01’s built-in diagnostics distinguish between real faults and wiring issues, reducing nuisance trips.
- Chemical Reactor Protection: High-pressure vessel safety interlocks. Pain point: Legacy system obsolescence. This module keeps aging HiMatrix systems running when OEM support has ended.
- Power Plant Turbine Trip: Overspeed protection and lube oil pressure monitoring. Pain point: Mean Time To Repair (MTTR) during unplanned outages. Having a tested, verified spare on the shelf cuts downtime from weeks to hours.

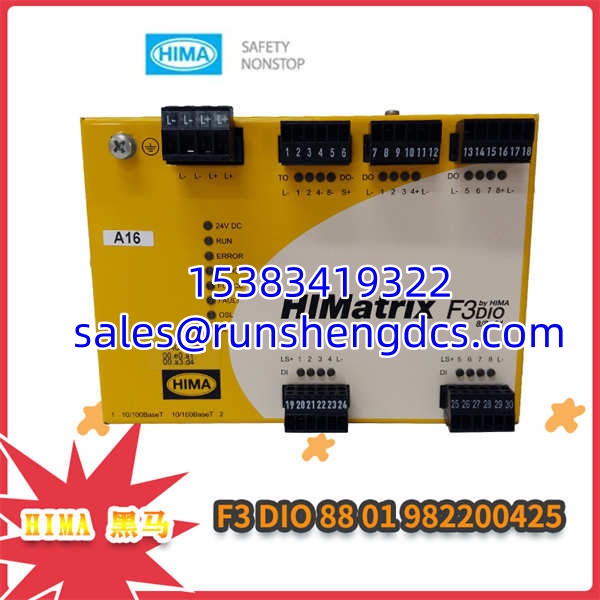

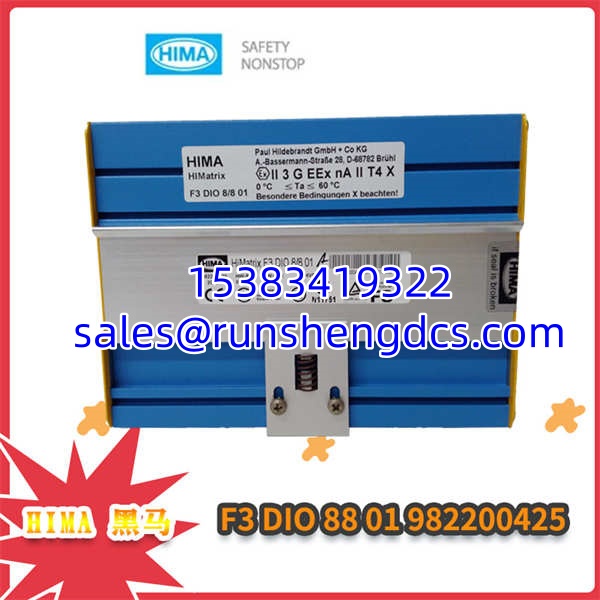

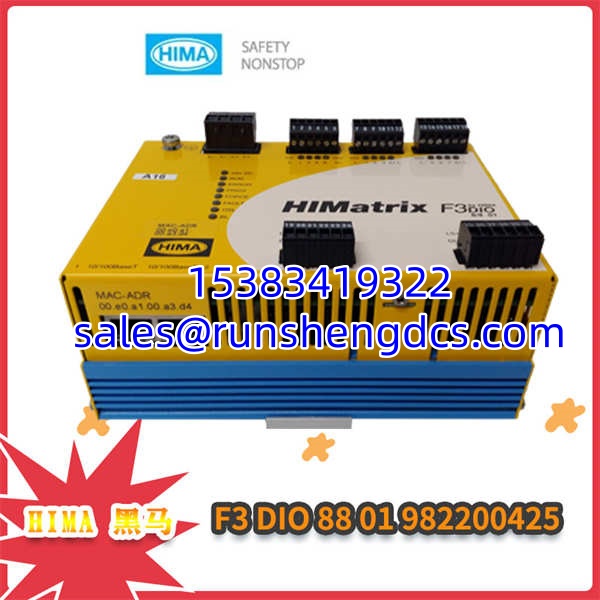

HIMA F3-DIO-88-01-982200425
Compatible Replacement Models
- ✅ Drop-in Replacement: F3-DIO-88-01-982200425 (Exact match, verified surplus). No config changes. Swap and verify diagnostics. Stock is finite—secure your spare now.
- ⚠️ Software Compatible: F3-DIO-16/8-01 (16 DI / 8 DO). Same F3 platform, same safety rating, but different channel count. Requires Safety Designer reconfiguration and point mapping. Budget 2-4 hours of engineering time.
- ❌ Hardware Incompatible: F35 Compact Controller I/O. Integrated I/O on the F35 controller platform. Different architecture. Cannot be used as a remote I/O module in an F3 rack. Do not attempt.
