Description
Key Technical Specifications
- Model Number: VMIVME-3122-210
- Manufacturer: GE (General Electric)
- Series: VMIVME / VMEbus Data Acquisition
- Module Type: High-Performance Analog-to-Digital Converter (ADC)
- Resolution: 16-bit digital resolution
- Input Channels: 64 differential or single-ended analog inputs
- Bus Interface: Standard 6U VME Bus form factor
- Operating Modes: Automatic scanning, data burst, external synchronization
- Physical Size: 160mm x 233.25mm x 20.32mm
- Operating Temperature: 5°C to 50°C
- Power Requirements: +5V supply, 2.5A max current
Functional Role & Application Analysis
The GE VMIVME-3122-210 is a high-performance data acquisition and control board card designed for the VMEbus architecture. It solves the challenge of capturing and processing massive volumes of analog sensor data with extreme precision in complex industrial control environments. By providing 64 channels of 16-bit resolution, this module accurately converts analog signals into digital data for high-precision measurement and control tasks.
This board features program-controlled gain, allowing it to adapt to analog input signals of varying amplitudes without hardware changes. Built-in timers, interruptors, and channel counters simplify the monitoring of dual-port data buffers, facilitating seamless synchronization and data interaction with other system components.
Typical use cases include:
- Industrial Automation: Monitoring production equipment status and collecting sensor data on factory automation lines to optimize processes and diagnose faults.
- Process Control: Accurately measuring and controlling analog parameters like temperature, pressure, and flow rate in chemical, power, and metallurgy plants.
- Data Acquisition Systems: Serving as the core ADC component in scientific research and laboratory instruments for high-speed signal capture and analysis.
- Training Simulators: Simulating real-world signal acquisition and control scenarios to provide practical operational environments for trainees.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. A failed acquisition board can corrupt critical process data. We have established a rigorous, multi-stage testing process to ensure every VMIVME-3122-210 we ship is 100% functional.
- Visual & Component Inspection: All boards undergo professional cleaning and visual inspection under magnification. We check for damaged VME connectors, degraded ADC chips, and compromised solder joints on high-density PCBs.
- Live System Test: The module is installed in a live VMEbus test chassis and run for 24 hours. We verify stable +5V power draw, correct VME bus handshake, and uninterrupted data transfer.
- Full-Function Diagnostics: We inject precision analog signals across multiple channels to validate 16-bit conversion accuracy, automatic scanning functionality, and program-controlled gain switching.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty. We document test results for traceability.

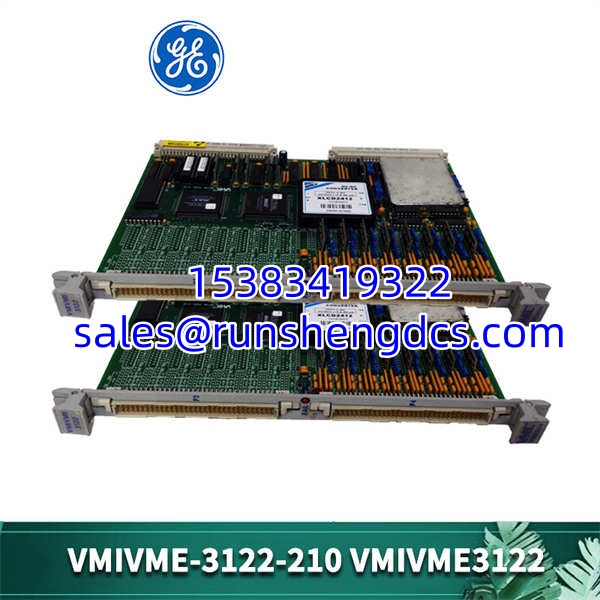

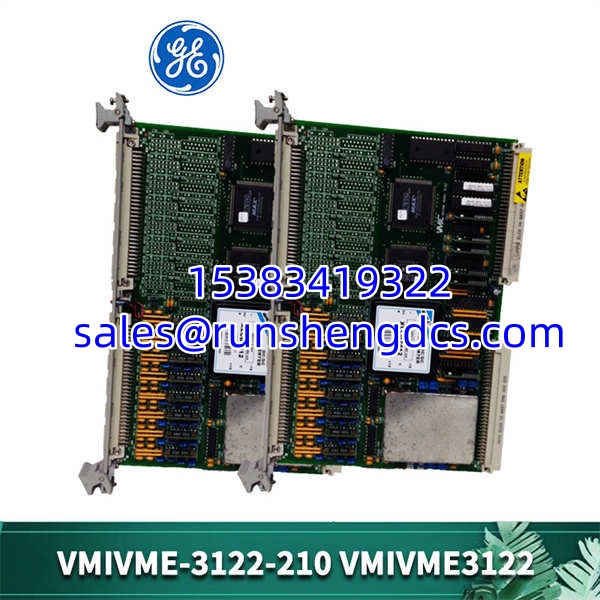

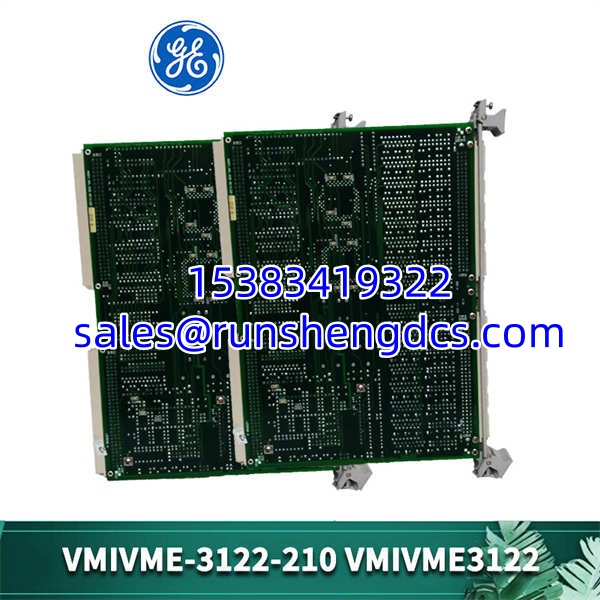

GE-VMIVME-3122-210-VMIVME3122
Compatibility & Migration Paths
To ensure this VMIVME-3122-210 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to integration failures.
- VME Bus Revision: Confirm your VME backplane supports the 6U form factor and the specific VMEbus revision required by this ADC module. Older backplanes may not support the required data transfer rates.
- Software Configuration: This board requires specific VME data acquisition software or custom drivers. Verify your host system’s OS and software stack supports the VMIVME-3122 driver package.
- Replacement & Alternatives: The VMIVME-3122-210 is a specific variant. Check your existing board’s exact suffix. If your application requires fewer channels, verify compatibility with lower-channel variants in the family.
- Get Expert Help: Unsure about your system? Contact our technical team today for a free compatibility check. Send us a photo of your existing board label and your VME chassis model for immediate verification.
