Description
Key Technical Specifications
- Product Model: IS200EROCH1ABB
- Manufacturer: GE Industrial Systems
- Product Category: Exciter Regulator Option Card (EROC)
- System Platform: GE EX2100 Excitation Control System
- Data Transfer: Dual-position transfer via regulator rack
- Connectors: Dual ISBUS connectors, Tool D-pin connector
- Communication Interface: RS-232 via front/rear keyboard connectors
- Component Highlights: CPU socket, 4 high-voltage electrolytic capacitors
- Status Indicators: Front-panel Power LED
- Ground Fault Detection: Supports third-party GE ground detectors
- Power Supply: Terminal board power connection support
- Operating Temp: 0°C to 60°C (32°F to 140°F)
Product Introduction
You’re staring at a generator that’s tripping on excitation faults and need to know if this board is the culprit. The GE IS200EROCH1ABB is the Exciter Regulator Option Card (EROC) that sits at the heart of the EX2100 excitation platform, managing field current regulation and ensuring your generator maintains stable terminal voltage under load swings. It transfers data to two positions in the regulator rack and integrates directly with GE ground fault detectors to catch insulation failures before they become catastrophic.
Bottom line—this card is discontinued, but it’s still the only valid replacement for EX2100 racks running EROC logic. You’re paying for the dual ISBUS architecture and the integrated CPU socket that handles real-time excitation algorithms. The RS-232 keyboard connector on both front and rear panels means you can troubleshoot without pulling the card, and the four high-voltage electrolytic capacitors handle the ripple current that cheaper boards can’t survive. Verify your EX2100 firmware revision before ordering; early EX2100 controllers had different EROC timing parameters.
Troubleshooting Quick Reference
| Fault Symptom | Probable Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| Power LED Off | No backplane power | High (80%) | Measure 24V at ISBUS connector | Check regulator rack power supply |
| Excitation Unstable | CPU socket loose | High (70%) | Reseat CPU module on EROC card | Verify CPU retention clips |
| Ground Fault Alarm | Insulation degradation | High (60%) | Check connected IS200ERGTH1A detector | Measure field winding insulation |
| Comm Loss to HMI | RS-232 cable fault | Med (50%) | Swap RS-232 cable; check pinout | Verify keyboard connector seating |
| Over-voltage Trip | Regulator feedback open | Med (40%) | Check PT sense wiring at terminal board | Verify voltage feedback loop |
| Card Not Recognized | ISBUS connector dirty | Med (30%) | Inspect backplane connector pins | Clean contacts; reseat card |

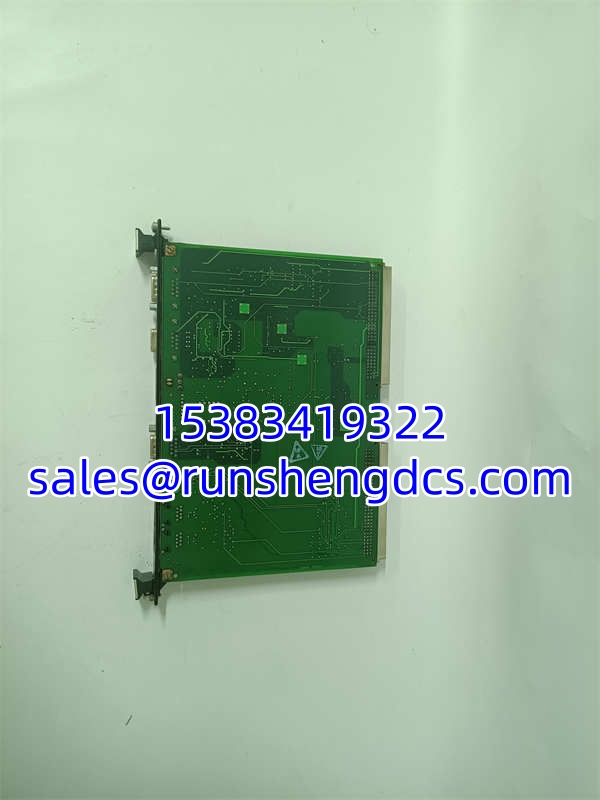

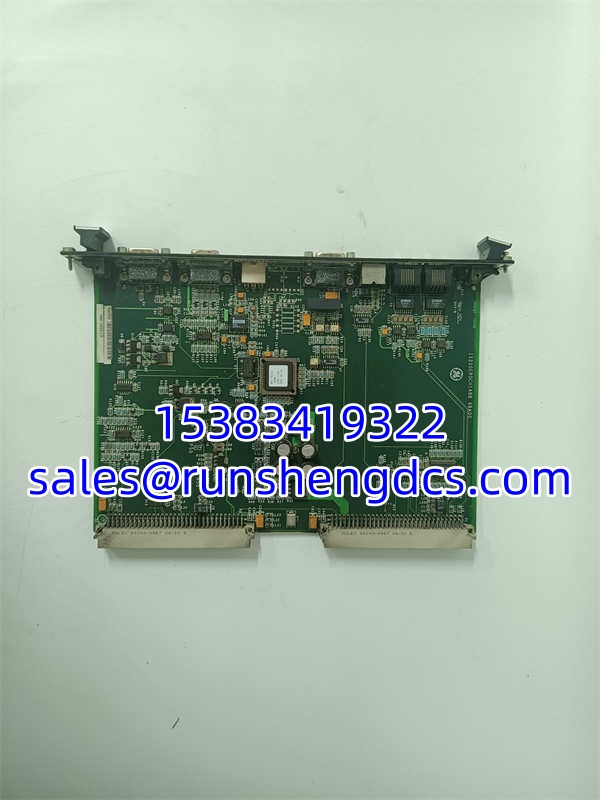

GE IS200EROCH1ABB
Application Scenarios & Pain Points
- Combined-Cycle Power Plants: Gas turbines with fast load ramps. The IS200EROCH1ABB’s dual-position data transfer ensures excitation response stays synchronized with turbine speed changes, preventing voltage dips during 50MW/min ramp rates.
- Hydro Generator Retrofits: Replacing aging analog excitation systems. The EX2100 platform with this EROC card integrates directly with existing turbine governors without third-party gateways, saving 3-4 weeks of integration labor.
- Marine Diesel Gensets: High vibration and salt spray. The four high-voltage capacitors on the IS200EROCH1ABB are rated for marine-grade ripple current, though keeping the cabinet sealed is still your best defense against corrosion.
