Description
Key Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC752SPL013-BA |
| Manufacturer | GE (General Electric) |
| Product Type | Excitation Controller Module |
| System Platform | Ex2100 Excitation System |
| Primary Application | Gas Turbine & Steam Turbine Control |
| Function | Generator Voltage & Reactive Power Regulation |
| Hardware Architecture | Microprocessor-Based Digital Control |
| Operating Environment | Industrial Power Generation |
| Key Feature | Redundant Control Capability |
| Signal Processing | Fast-Acting AVR Logic |
Product Introduction
When a gas turbine trips offline, the financial bleeding starts by the second. The GE IC752SPL013-BA is the brain of the Ex2100 excitation system, and its job is to keep the generator’s magnetic field perfectly stable. It constantly monitors terminal voltage and reactive power, adjusting the DC current to the rotor in milliseconds. If this card fails or drifts, your generator either over-excites and damages itself, or under-excites and collapses the local grid.
I’ve worked on units where a failing excitation controller caused wild voltage swings that tripped the entire plant. The GE IC752SPL013-BA is built to prevent that. It uses high-speed digital processing and redundant architectures to ensure that even if one processing path fails, the generator stays online. It’s not a cheap part, but compared to the cost of a turbine overspeed event or a grid penalty, it’s pennies. Just make sure you’re buying the exact BA revision; mixing revisions in an Ex2100 rack is a guaranteed way to create a headache.
Quality SOP & Tech Pitfalls
The Lab Report:
We don’t just clean the conformal coating and ship it. Every GE IC752SPL013-BA gets a visual inspection under magnification for cracked solder joints or corroded traces. Then, it goes on our simulated excitation test bench where we verify the AVR response time and redundancy switchover logic. We check insulation resistance on all high-voltage isolation barriers with a megger. Finally, it’s logged with its firmware version and sealed in anti-static packaging.
The Engineer’s Warning:
Here’s a brutal reality: excitation controllers are incredibly sensitive to grounding. I’ve seen a GE IC752SPL013-BA fry because someone didn’t verify the ground strap between the control cabinet and the generator frame. A ground loop induced enough noise to destroy the sensing circuit. Also, NEVER pull this card while the generator is online unless your system has verified hot-swap capability. The transient can take out the entire excitation rack. Always verify your backup excitation system is active before touching this card.
Installation & Configuration Guide
- Pre-Installation: ⚠️ Lockout/Tagout and verify zero energy. Take photos of ALL wiring, jumper settings, and DIP switches. Record the firmware version from the old card’s display or via the HMI.
- Removal: Label every single wire. Release the ejector screws or DIN clips. Pull the GE IC752SPL013-BA straight out; do not rock it. Inspect the backplane pins for arcing or corrosion.
- Installation: This is non-negotiable. Slide the module into the correct slot and lock it down. Reconnect wiring per your photos.
- Power-On & Testing: Restore control power first. Watch the module’s status LEDs for a normal boot sequence. Verify firmware matches. Only then restore field power. Run a manual excitation test at low load to verify voltage regulation before returning to automatic mode.

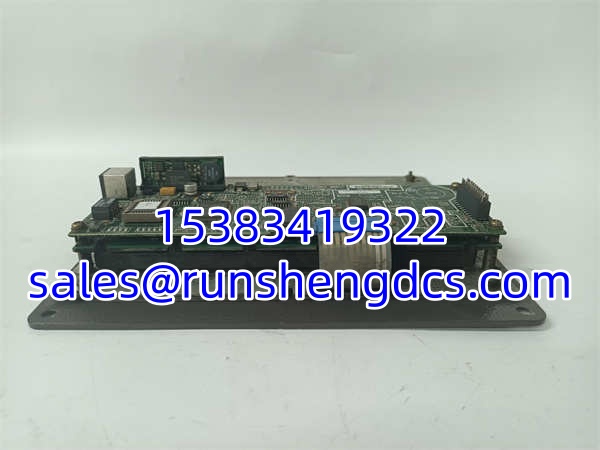

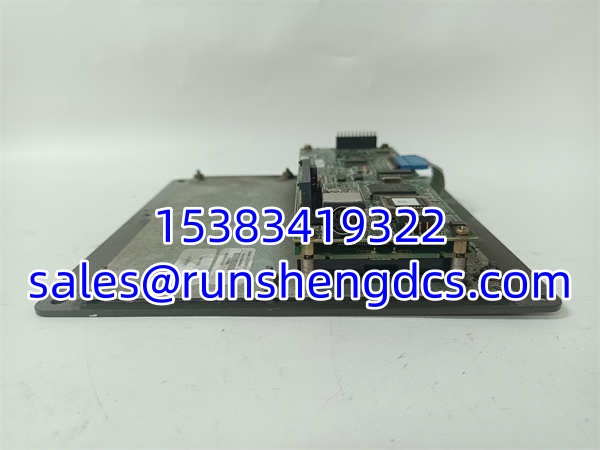

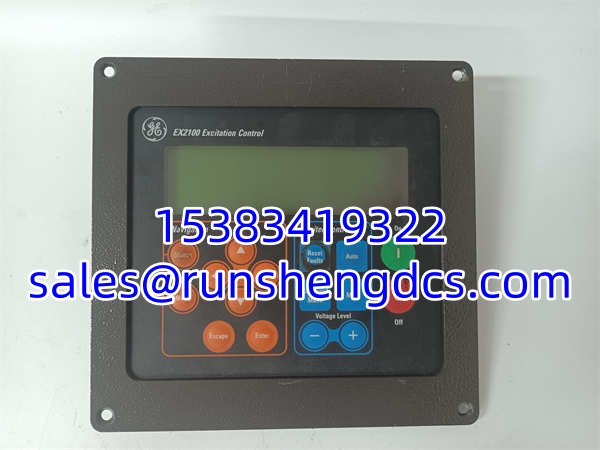

GE IC752SPL013-BA
Compatible Replacement Models
| Model | Compatibility Tier | Notes |
|---|---|---|
| GE | ✅ Drop-in Replacement | Exact match for Ex2100 excitation applications. |
| GE IC752SPL013-AA | ⚠️ Verify Revision | Earlier revision; may require firmware update or jumper changes. |
| GE IC752SPL013-CA | ⚠️ Software Compatible | Later revision; verify Ex2100 system firmware supports it. |
Frequently Asked Questions
Can I hot-swap this excitation controller?
Only if your Ex2100 system is configured for redundant excitation AND the redundancy is actively tracking. I’ve seen techs assume redundancy was working, pull the card, and watch the generator trip because the backup card had been in fault for months. Verify redundancy health on the HMI first.
Why is my new card showing a configuration fault?
Jumper mismatch. The GE has hardware jumpers that tell the system what type of generator and PT/CT ratios are connected. If these don’t match the software configuration, the card will fault. Double-check every jumper against the old card.
How do I know if this card is actually regulating voltage?
Check the Ex2100 HMI for the AVR output percentage and field current. If the card is healthy, you should see the AVR output changing smoothly as load changes. If it’s pegged at 0% or 100% with no response, the card is either in manual mode, faulted, or the sensing circuit is bad.
Is this compatible with my older Mark V system?
No. The GE is specifically for the Ex2100 excitation platform. Mark V uses completely different excitation hardware. Don’t waste your time trying to make it fit; the backplane and software are incompatible.
What happens if this card fails completely?
If you have redundant excitation, the backup should take over seamlessly. If you don’t have redundancy, the generator will lose field voltage and trip offline. This is why having a spare GE on the shelf isn’t optional for critical generation assets.
