Description
Key Technical Specifications
- Model Number: IC697CPX772
- Manufacturer: GE Fanuc
- Series: Series 90-70 PLC System
- Module Type: Central Processing Unit (CPU)
- Processor Speed: 96 MHz
- User Memory: 512 Kbytes (Fixed)
- Discrete I/O Capacity: 2,048 points (2K)
- Expansion Interface: High Speed Parallel Bus
- Expansion Racks: Supports up to 7 additional racks
- Configuration: No DIP switches, software-configurable
Functional Role & Application Analysis
The GE IC697CPX772 is a high-performance CPU module for the Series 90-70 programmable logic controller platform. It serves as the central processing unit for complex industrial control applications requiring fast scan times and substantial memory. This processor solves the challenge of managing large-scale discrete I/O systems with up to 2,048 points while maintaining deterministic cycle times. Its 96 MHz clock speed and 512K fixed user memory provide the processing headroom needed for demanding manufacturing and process control applications.
Typical applications include:
- Automotive Manufacturing: Serving as the main controller for assembly line logic, robot coordination, and conveyor systems requiring high-speed discrete I/O processing.
- Power Generation: Managing turbine auxiliary systems, boiler controls, and balance-of-plant equipment in utility-scale power stations.
- Material Handling: Coordinating high-speed sorting, packaging, and distribution center automation with extensive I/O requirements.
- Legacy System Maintenance: Direct replacement for failed or degraded CPUs in existing Series 90-70 installations where migration to newer platforms is not economically viable.
Our Quality Standard & Testing Process
We understand that a failed CPU in a Series 90-70 system can halt production and cost thousands per hour. We have established a rigorous testing protocol to ensure every IC697CPX772 module we ship performs to original specifications.
- Visual & Component Inspection: Every board undergoes professional cleaning and microscopic inspection. We check for solder joint integrity, capacitor leakage, connector pin damage, and PCB trace corrosion.
- Live System Test: The CPU is installed in a live Series 90-70 test rack and powered up for continuous operation. We verify boot sequence, memory initialization, and backplane communication.
- Full-Function Diagnostics: We load test logic and verify scan times, I/O scanning, and expansion rack communication. We confirm the processor correctly addresses all 2K discrete points and maintains timing specifications.
- Warranty Backing: Only CPUs that pass all diagnostic tests are approved for shipment. Every unit is backed by our full 12-month warranty against manufacturing defects.

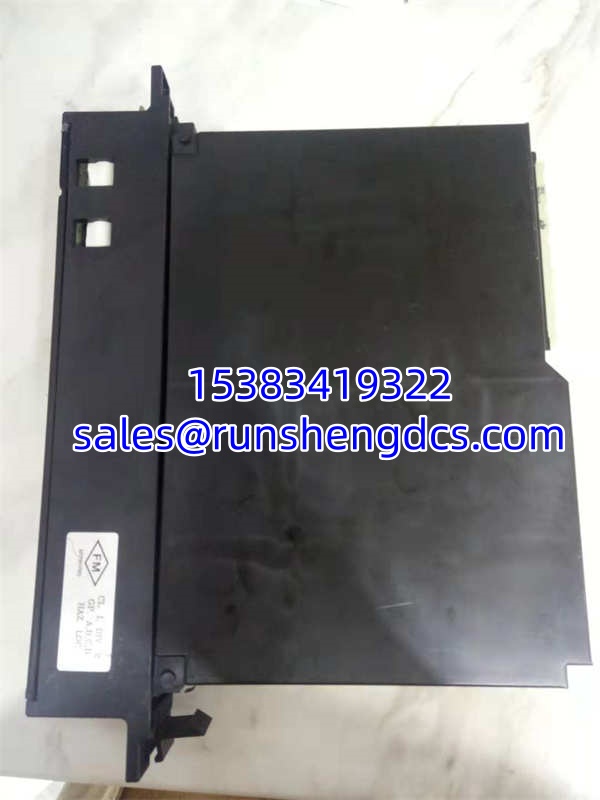

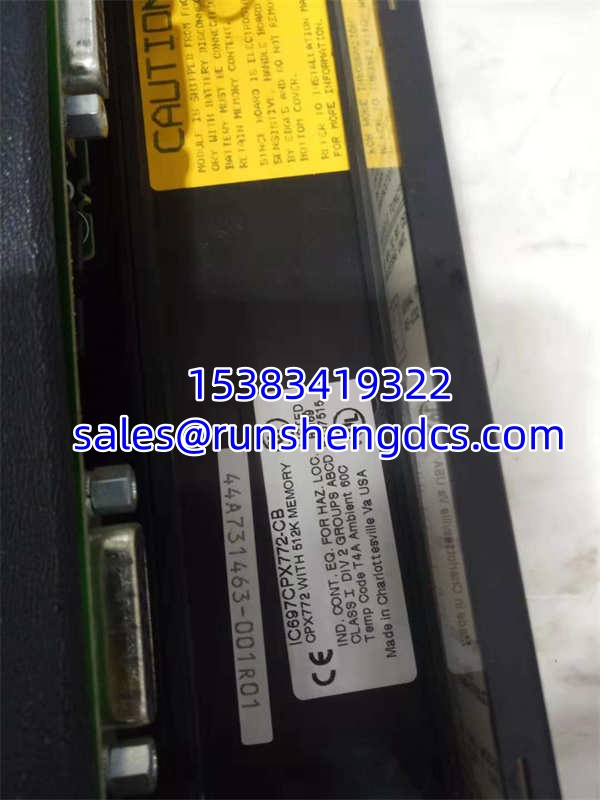

GE IC697CPX772
Compatibility & Migration Paths
To ensure this IC697CPX772 is 100% compatible with your Series 90-70 system, you must verify these key points. CPU replacement in legacy PLC systems carries significant risk if not properly validated.
- Memory Configuration: Confirm your application requires exactly 512K fixed memory. The CPX772 has fixed (non-expandable) memory. If your program exceeds this, you need the CPX782 (1M) or CPX928 (6M). Check your existing CPU label before ordering.
- Firmware Compatibility: Verify that your existing I/O modules, communication cards, and programming software (Logicmaster 90 or Proficy Machine Edition) are compatible with this CPU revision. Firmware mismatches can cause communication failures or unrecognized modules.
- Expansion Rack Verification: If your system uses expansion racks, confirm you have the correct Bus Receiver Module (IC697CPX772 requires proper bus termination). The CPU supports up to 7 expansion racks via high-speed parallel bus.
- Get Expert Help: Unsure about memory requirements or system compatibility? Contact our technical team today for a free verification. Send us a photo of your existing CPU label and your I/O configuration, and we will confirm the exact match before you buy.
