Description
Key Technical Specifications
- Model Number: FBM219
- Manufacturer: FOXBORO (Invensys)
- Product Type: Discrete I/O Interface Module
- Input Channels: 24 Discrete Inputs (Voltage/Contact)
- Output Channels: 8 Discrete Outputs
- Input Voltage Range: 15-60 VDC
- Output Voltage: 120VAC/125VDC or 240VAC
- Power Supply: 24 VDC ±10%
- Power Consumption: ≤6W
- Operating Temperature: -20°C to +60°C
Functional Role & Application Analysis
The FOXBORO FBM219 is a critical discrete I/O interface module within the I/A Series DCS architecture. It acts as the primary signal translation layer between field devices (like proximity switches, limit switches, and solenoid valves) and the central control system. This module solves the challenge of integrating mixed-voltage field signals into a unified control environment, supporting both 15-60 VDC inputs and high-voltage AC/DC outputs. Its modular design and hot-swap capability significantly reduce maintenance downtime and allow for flexible system expansion without major rewiring.
Typical use cases include:
- Automotive Manufacturing: Collecting signals from proximity and photoelectric sensors on assembly lines to control conveyors and lifts at individual workstations.
- Chemical DCS Systems: Controlling valves and pumps in hazardous environments, managing hundreds of discrete points across the plant architecture.
- Legacy System Maintenance: Replacing failed I/O cards in aging I/A Series systems to prevent costly plant-wide shutdowns and maintain production continuity.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. A faulty I/O module can cause phantom alarms or fail to trigger critical safety outputs. We have established a rigorous, multi-stage testing process to ensure every FBM219 we ship is 100% functional and reliable.
Our professional process includes:
- Visual & Component Inspection: All modules undergo professional cleaning and visual inspection to ensure no physical damage, bent connector pins, or compromised solder joints.
- Live System Test: The module is installed in a live FOXBORO I/A Series test rack and run for 24 hours to verify continuous operation, backplane communication, and thermal stability.
- Full-Function Diagnostics: We simulate 15-60 VDC inputs and load the output channels to verify accurate signal translation, switching speed, and isolation integrity.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty.

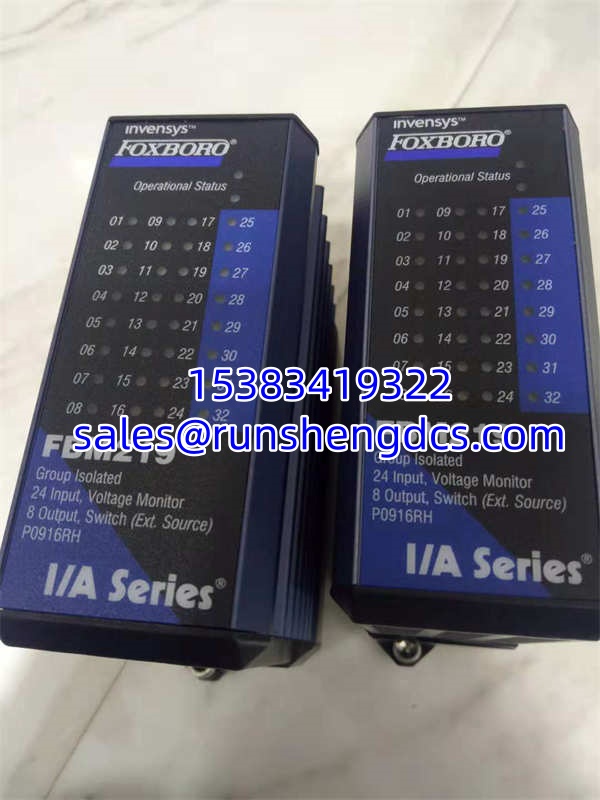

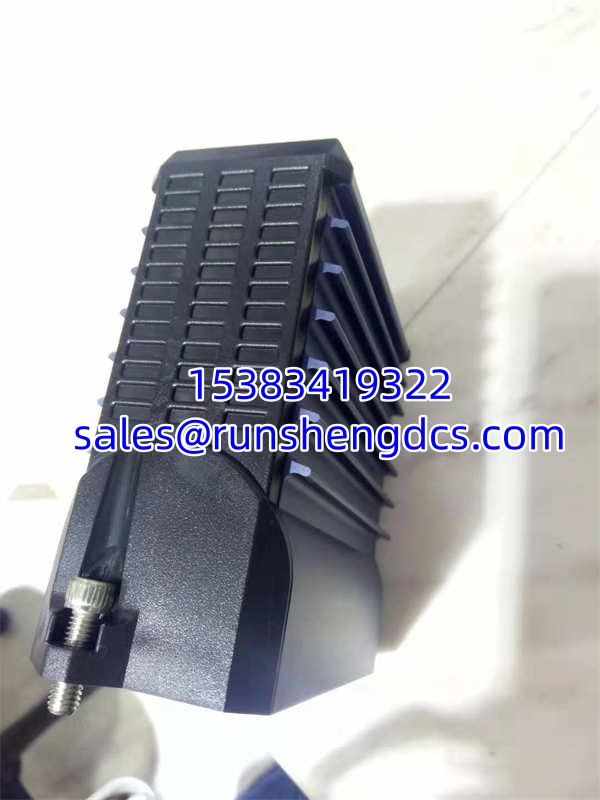

FOXBORO FBM219
Compatibility & Migration Paths
To ensure this FBM219 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to integration failures and costly downtime.
Key verification steps:
- Part Number Suffix: FOXBORO frequently updates suffixes (e.g., P0916RH vs. P0917LE). You must confirm the exact part number on your failed module, as different suffixes may indicate varying output voltage ratings or firmware revisions.
- CHARM Compatibility: If integrating with a DeltaV system, verify that the FBM219 matches the required CHARM interface specifications (e.g., 24 DI / 8 DO configuration).
- Hot-Swap Verification: While the module supports hot-swapping, ensure your system firmware is configured to allow live insertion. Forcing a module into a locked backplane slot can damage the connector.
- Get Expert Help: Unsure about your system’s exact I/O configuration? Contact our technical team today for a free compatibility check and cross-reference validation.
