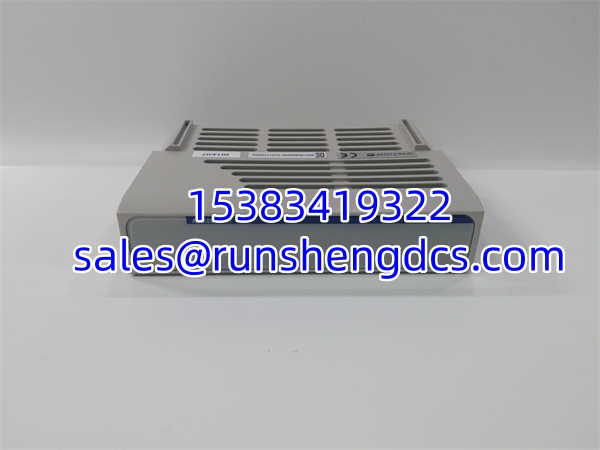

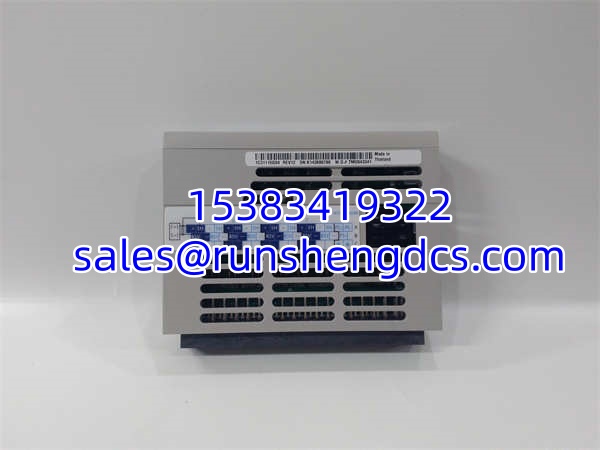

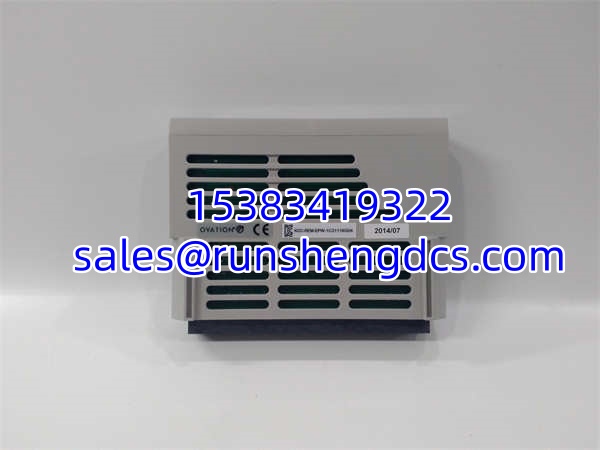

For the engineer maintaining an Ovation system, the 1C31116G04 is a familiar workhorse. It sits in the logic solver rack, translating field device status—pumps, valves, breakers—into processible data.
Sixteen channels of 120 VAC input provide a standard interface for plant floor monitoring. Its design prioritizes noise immunity and channel-to-channel isolation, keeping the control system blind to electrical transients from the field side.
Key Technical Specifications
- Module Type: 120 VAC Digital Input
- Number of Points: 16
- Nominal Input Voltage: 120 VAC
- Input Frequency: 50/60 Hz
- Isolation: Field-to-Logic (Opto-coupler)
- Status Indication: LED per channel + Module OK
- Backplane Interface: Ovation Chassis
- Firmware: Field Programmable (verify revision)
- Agency Approvals: CE, UL Listed
Compatibility & Replacement Matrix
- 1C31116G01 → 1C31116G04: Direct Replacement — G04 is the updated revision.
- 1C31116G02 → 1C31116G04: Direct Replacement — compatible in the same chassis.
- 1C31115G01 → 1C31116G04: Incompatible — different voltage (24 VDC vs 120 VAC).
- 1C31117G01 → 1C31116G04: Incompatible — different point count (32pt vs 16pt).
EMERSON 1C31116G04
Quality Inspection & SOP Transparency
Incoming Inspection
Every unit arrives with traceable packing lists and customs documentation. We verify the serial number against Emerson’s public databases to rule out recalls. The physical label is checked for tampering; the epoxy seal on the logic side must be intact. No signs of field repair, corrosion, or excessive yellowing are accepted.
Live Functional Test
We use a calibrated AC source (Fluke 754) to simulate field inputs on a working Ovation rack. Each of the 16 channels is toggled from 0 V to 120 VAC while monitoring the corresponding LED and the DCS console feedback. The Module OK LED must remain steady—no flickering indicates a logic fault.
Electrical Parameter Test
Using a Megger MIT430, we test the insulation resistance between the field terminals and the logic ground. It must read >100 MΩ at 500 VDC. A Fluke 115 checks continuity on the common return paths.
Firmware Verification
The module’s firmware revision is read via the Ovation cabinet software. We note if it requires a specific patch level to run on older cabinet versions.
Final QC & Packaging
After a 24-hour powered burn-in, the unit is sealed in an anti-static bag with a “Tested & Passed” label. The outer box uses double-wall cardboard to prevent crushing during shipping.
Common Replacement Pitfalls
Firmware Revision Mismatch
Older Ovation cabinets sometimes reject newer module firmware. The module powers up but shows “Fault” on the console. Always check the cabinet’s software revision before ordering. If your cabinet is on R5.0, a module shipped with R6.0 firmware might need a downgrade—this is a headache you want to avoid.
Wiring Termination
The 1C31116G04 uses a specific terminal block (TB1xxx). Do not assume the old block slides out and into the new module. Check the pinout: the common return and input channels can be arranged differently between G01 and G04 revisions. A miswired common can short the entire rack section.
Field Power Source
This module needs a clean 120 VAC source. If the plant floor voltage sags below 90 VAC or spikes above 140 VAC, the inputs will chatter. Use a multimeter to verify the field supply at the terminal block before blaming the module.
ESD Precautions
The logic board is sensitive. Always clip a wrist strap to the grounded rack before handling. I’ve seen a module kill its internal opto-isolators because an engineer pulled it from the box while wearing a wool sweater. It worked for two days, then died mysteriously.
Channel Overload
Do not connect DC voltage to these terminals. It’s an AC-only input. Connecting 24 VDC will not damage it immediately, but it won’t register a “True” state either—leaving you chasing a ghost fault.
Get these five right and you’ll cut rework time by most of the afternoon.
EMERSON 1C31116G04
FAQ
Q: Is the 1C31116G04 a direct swap for my old 1C31116G01?
A: Yes, it is a form-fit-function replacement. The G04 revision fixes some thermal tolerance issues found in early G01 units. You can pull the old one and slide this in without changing the wiring or configuration.
Q: What’s the deal with the firmware? Will it work on my old R4.5 system?
A: Honestly, we’ve run into this—here’s what happened. The G04 ships with firmware R5.0 or higher. If your cabinet is on R4.5, the module will power up but show “Incompatible” on the console. You’ll need to order the module with the older firmware loaded, or upgrade the entire cabinet. Verify your system revision first.
Q: Can I hot-swap this module?
A: Yes. The Ovation system supports hot swapping for I/O modules. However, ensure the field wiring is de-energized before disconnecting the terminal block. The logic side is safe to swap live, but the field side carries 120 VAC—treat it like live electrical work.
Q: Is this brand new or refurbished?
A: We only list New Original (New Surplus) units. These are excess stock from decommissioned projects, never installed in a plant. They come in the original sealed box or with a verified anti-tamper seal.
Q: What if I receive a damaged module?
A: Inspect it before signing. If the box is crushed or the anti-static bag is torn, refuse the delivery. If you open it and find physical damage, send us a photo within 24 hours. We cover return shipping and issue a full refund or replacement—no questions asked.
Q: Do you have the matching terminal block?
A: The standard block is the TB1016. However, Emerson changed the screw terminal spec in 2012. If your old block uses 1/4-20 screws, the new module might need a different crimp ferrule size. Check the terminal screw size before ordering extra blocks.
