Description
Key Technical Specifications
- Model Number: KJ3242X1-BK1 (12P4711X052)
- Manufacturer: Emerson Process Management
- Series/System: DeltaV S-Series / Fieldbus H1
- Module Type: Foundation Fieldbus H1 Interface Card
- Local Bus Power: 12 VDC, 300 mA
- Field Circuit Power: 32 VDC max, 12 mA per port
- Operating Temperature: -40°C to +70°C
- Humidity: 5% to 95% non-condensing
- Vibration Resistance: 10 g shock (½ sine wave, 11 ms); 0.5 g from 16 to 150 Hz
- Environmental Rating: ISA-S71.04 G3 class pollutant resistance, IP20
Functional Role & Application Analysis
The Emerson KJ3242X1-BK1 is a dedicated Foundation Fieldbus H1 interface card for the DeltaV S-Series control system. It solves the integration challenge of connecting intelligent field devices directly to the DCS over a single twisted-pair bus, eliminating the need for individual analog wiring to each transmitter or valve positioner. By consolidating communication and power onto the H1 trunk, this module reduces cabling costs, simplifies field termination, and enables remote diagnostics and configuration of every device on the segment.
Typical deployment scenarios include:
- Process Automation: Integrating H1 field devices (transmitters, actuators, analyzers) in oil & gas, chemical, and pharmaceutical plants.
- Distributed Field I/O: Extending the DeltaV control network to remote skids or sub-stations using a single H1 trunk cable.
- Legacy DeltaV Maintenance: Replacing failed H1 cards in aging S-Series controllers to restore fieldbus segment communication.
- HART/FF Migration: Supporting plants transitioning from traditional 4-20mA/HART to Foundation Fieldbus architecture while maintaining DeltaV as the host system.
Our Quality Standard & Testing Process
A failed Fieldbus H1 card can take down an entire segment of intelligent field devices, causing loss of visibility and control across critical process loops. We treat every KJ3242X1-BK1 as a mission-critical component. Our testing validates both electrical integrity and protocol-level functionality to ensure the card performs identically to a new unit in your live DeltaV system.
- Visual & Component Inspection: Boards are cleaned and inspected under magnification for cold solder joints, capacitor leakage, or corrosion on the backplane connector and fieldbus terminal block.
- Live System Test: The module is seated in an active DeltaV S-Series test chassis to verify backplane communication, LED status indicators, and correct slot recognition by the controller.
- Full-Function Diagnostics: We connect an H1 fieldbus simulator and test devices to verify segment power delivery (12 VDC local bus, 32 VDC field circuit), confirm per-port current limiting at 12 mA, and validate H1 protocol communication with DeltaV Control Studio.
- Warranty Backing: Only modules that pass every diagnostic step are shipped. Each unit carries our full 12-month warranty, backing our claim of functional integrity.

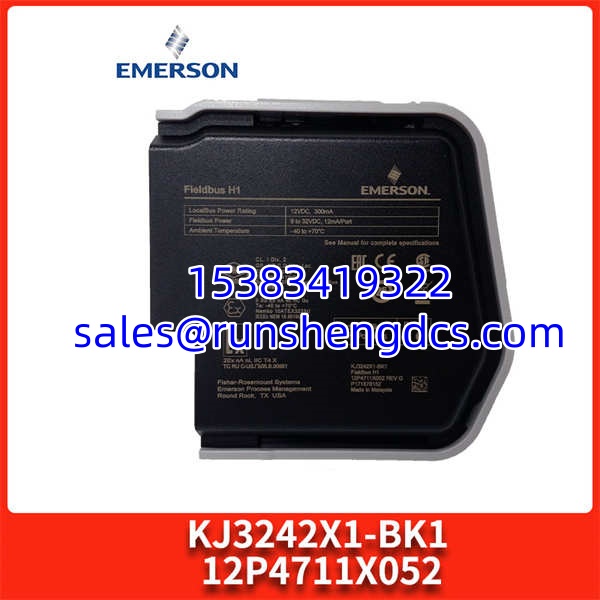

EMERSON KJ3242X1-BK1-12P4711X052
Compatibility & Migration Paths
Do not assume all DeltaV H1 cards are interchangeable. The KJ3242X1-BK1 has specific hardware, firmware, and terminal block dependencies. A mismatch can cause segment failures or prevent the controller from recognizing the card.
- Firmware/Hardware Revisions: Confirm your DeltaV controller firmware version supports the BK1 revision. Older controllers may require a firmware load to recognize this specific H1 card variant.
- Required Components: This card requires the matching KJ3242X1-EA1 (Simplex) or KJ3242X1-FA1 (Redundant) Fieldbus H1 terminal block. The older terminal blocks are not pin-compatible. Verify your existing terminal block part number before ordering.
- Replacement & Alternatives: The KJ3242X1-BK1 (12P4711X052) is a direct replacement for earlier KJ3242X1-BA1 units in most S-Series applications. For new installations requiring redundant H1 segments, evaluate the KJ3242X1-FA1 redundant terminal block configuration.
- Get Expert Help: Unsure about your controller compatibility, terminal block type, or segment power budget? Contact our technical team today for a free compatibility check. Provide your controller model, firmware version, and current terminal block part number for immediate validation.
