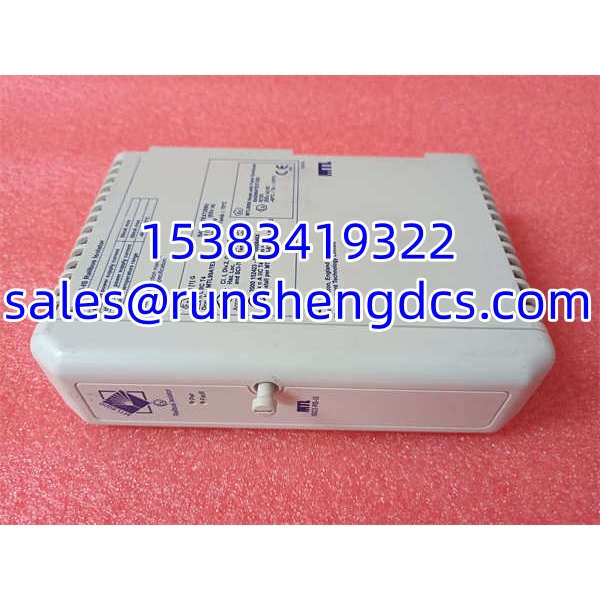

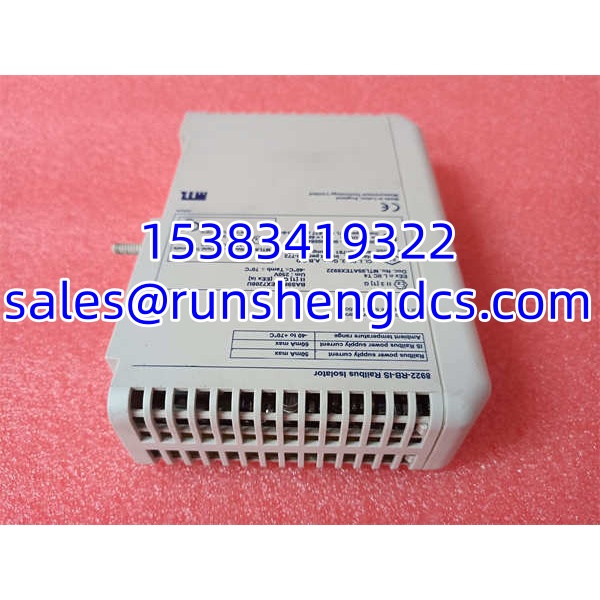

Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Eaton (MTL Instruments) |
| Model | 8922-RB-IS |
| Product Type | Railbus isolator / segment barrier |
| Function | Galvanic isolation between Railbus segments |
| Safety Concept | Intrinsically safe field wiring protection |
| Mounting | DIN rail |
| Approx. Dimensions | 110 × 160 × 42 mm |
| Voltage Rating | 250 V |
| Power Dissipation | ~1.2 W |
| Approx. Weight | 0.345 kg |
| Typical Application | MTL / Eaton I/O systems with Railbus architecture |
| Product Status | Legacy / surplus |
Product Introduction
In MTL-style distributed I/O systems, the Railbus is the backbone that carries power and communication between I/O segments. If a fault appears on one segment — short circuit, wiring damage, or accidental intrusion of higher voltage — it can pull down the entire bus unless it is properly segmented. The MTL 8922-RB-IS sits at that boundary.
It is an intrinsically safe Railbus isolator used to separate Railbus segments and prevent fault energy from reaching IS field wiring modules. It is not an HMI, not a general-purpose repeater, and not a standard 4-20 mA isolator. Public listings that describe “8922-RB-IS” as a capacitive touchscreen or XV200 display are misattributing the model number. The correct interpretation for this part number in the MTL context is a Railbus isolator module. Because documentation is limited in public sources, treat it as a legacy spare and verify the installed system architecture before substitution.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm model 8922-RB-IS, serial number, hardware revision, and system origin. Inspect DIN-rail clips, terminal blocks, PCB condition, and connector pins. Reject units with cracked housings, burnt traces, or corroded terminals.
- Visual & Mechanical Inspection — Check Railbus connectors for bent pins, loose contacts, or oxidation. Verify that the module matches the mechanical footprint of the installed Railbus segment.
- Electrical Parameter Tests — Measure insulation resistance between Railbus input and output sides. Check for shorts, open circuits, and abnormal leakage. Do not energize the Railbus if isolation resistance is out of spec.
- Live Functional Testing — Install into a compatible MTL/Eaton Railbus test setup. Verify segment isolation, bus communication, and fault behavior. Confirm that a fault on one side does not collapse the other segment.
- Final QC & Anti-Static Packaging — Label with model, serial number, revision, test date, and observed status. Pack in ESD-safe materials with terminal protection. Include a test summary for traceability.
Field Engineer Gotchas
- HMI vs. isolator confusion — Risk: ordering an Eaton XV200 touchscreen because “8922-RB-IS” appears in HMI listings. Solution: require the MTL Railbus isolator description and confirm the physical module matches your cabinet.

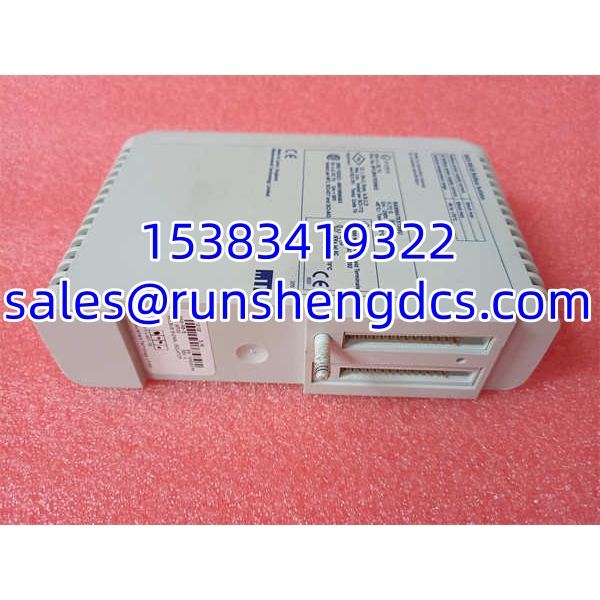

- Wrong Railbus generation — Risk: the module does not mate with the installed backplane or connector pitch. Solution: compare connector layout, pin count, and mechanical dimensions against the existing unit.
- Certification data missing — Risk: installing without confirmed IS parameters. Solution: obtain Uo, Io, Po, Co, Lo, temperature class, and certification body from the nameplate or OEM datasheet.
- Segment placement errors — Risk: installing the isolator in the wrong Railbus position defeats segmentation. Solution: follow the original wiring diagram and confirm which Railbus segment boundary the module protects.
- Grounding and bonding assumptions — Risk: incorrect grounding can compromise IS integrity. Solution: follow the system earthing scheme and do not modify ground links without OEM guidance.
MTL 8922-RB-IS
Application Scenarios
- MTL I/O system fault isolation — A Railbus segment develops a wiring fault. The 8922-RB-IS prevents the fault from taking down the entire I/O bus.
- Hazardous-area I/O cabinet maintenance — During replacement of IS field modules, the Railbus isolator helps maintain segment integrity while technicians work on one section.
- Legacy spare pool — Plants running older MTL/Eaton distributed I/O keep a verified 8922-RB-IS spare to reduce downtime when a Railbus segment fails.
- Commissioning support — When expanding an existing Railbus system, the isolator can be used to segment new field wiring from the existing bus architecture.
FAQ
Is MTL 8922-RB-IS a touchscreen?
No. Public HMI listings for “8922-RB-IS” refer to a different Eaton product family. The MTL 8922-RB-IS is a Railbus isolator module.
What does it isolate?
It isolates Railbus segments to prevent fault voltages from propagating into intrinsically safe field wiring.
Can I substitute it with a generic isolator?
Not recommended. Railbus isolators must match the connector, protocol, power distribution, and mechanical layout of the installed system.
What certifications does it carry?
Confirm from the nameplate. Public sources do not provide complete ATEX/IECEx or FM data for this specific model.
Is it still in production?
It is typically encountered as surplus or refurbished stock. Verify current Eaton/MTL availability before planning long-term spares.
What should I check before buying?
Model label, connector type, mechanical dimensions, system compatibility, and whether the seller has tested Railbus communication and isolation.
