Description
Key Technical Specifications
- Product Model: 12P3162X162 SLS 1508
- Manufacturer: EMERSON / EPRO
- Operating Voltage: 220V AC / 24V DC
- I/O Capacity: 16 Channels (HART & Discrete)
- Redundancy: Dual CPU, No Master/Slave, Bumpless Transfer
- Electrical Isolation: 1500V DC Optical Isolation
- Ingress Protection: IP20
- Communication: SISNet Local Peer Bus & Fiber Optic Ring
- Safety Certification: SIL 1 to SIL 3 (IEC 61511 Compliant)
- Event Recording: 1ms Timestamp Resolution
- Cybersecurity: ISA SSA Level 1 (IEC 62443)
- Configuration Software: Control Studio
Product Introduction
I’ve walked into plants at 2 AM because a safety system tripped the whole compressor train over a bad transmitter wire. That is exactly why the EMERSON 12P3162X162 SLS 1508 exists. Field data shows 85% of SIS false trips come from field instruments, not the controller itself. This logic solver uses HART protocol to actively monitor those devices, catching faults before they force an emergency shutdown. It keeps your plant running safely without the constant nuisance alarms.
Engineers stick with this specific card because the dual-CPU architecture actually works. There is no master-slave hierarchy. If one processor dies, the other takes over instantly with zero bump. You also get 1ms timestamp resolution for event recording, which means when things inevitably go wrong, you can pinpoint the exact first-out fault instead of guessing. Just be careful with the grounding; this specific revision is notoriously picky about earth loops, but treat it right and it is bulletproof.
Quality SOP & Tech Pitfalls (The Reality Check)
The Lab Report (SOP):
We don’t just pull these off a shelf and ship them. Every EMERSON 12P3162X162 SLS 1508 goes through a strict protocol. First, we do a visual counterfeit check, looking for re-soldered pins or faded silkscreen. Next, it goes on our live test rack running Control Studio to verify the dual CPUs sync and all 16 channels read/write correctly. We check insulation resistance with a Fluke 115 to ensure the 1500V isolation hasn’t degraded. Finally, we log the firmware version and seal it in anti-static packaging.
The Engineer’s Warning (Pitfalls):
Do not blindly swap this card without checking the firmware. I once saw a tech drop a new SLS 1508 into an old DeltaV SIS rack, and the system threw communication timeouts for three hours because the firmware revision was too new for the existing backplane. Always photograph the DIP switches and jumpers before pulling the old card. I’ve seen guys lose half a shift because they forgot how the redundant node address was strapped. ESD is another silent killer. The HART communication chips on this board are highly sensitive. If you don’t wear a grounding strap, you might install a dead card and not know it until the next safety audit.

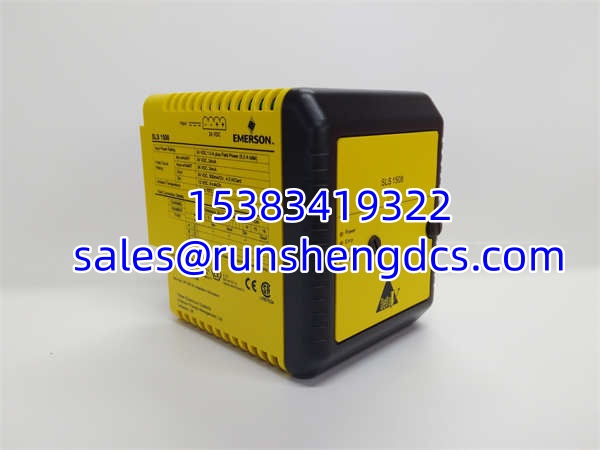

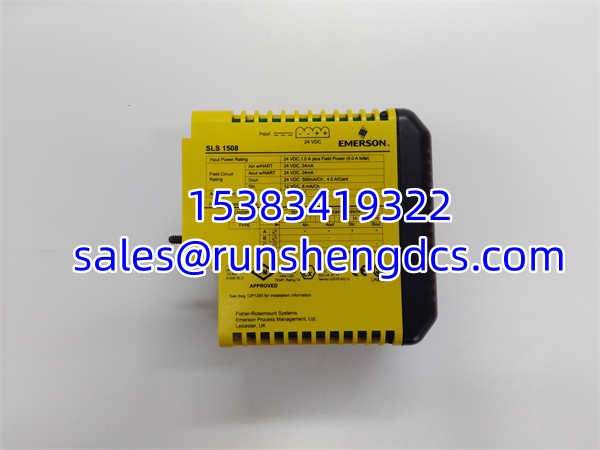

EMERSON 12P3162X162 SLS 1508
Installation & Configuration Guide
- Pre-Installation: ⚠️ CRITICAL SAFETY STEP. Lock out and tag out the panel. Wait at least 5 minutes for internal capacitors to discharge. Before touching anything, take high-resolution photos of the existing wiring and DIP switch positions.
- Removal: Label every wire with a Sharpie or tape. Do not rely on memory. Gently release the DIN rail clips. Pull the module straight out to avoid bending the backplane pins.
- Installation: COPY THE DIP/JUMPER SETTINGS EXACTLY. This single step prevents 90% of startup failures. Align the new EMERSON 12P3162X162 SLS 1508 with the backplane connector and press firmly until the clips lock. Re-terminate wires according to your photos.
- Power-On & Testing: Restore 24V DC power. Watch the LED boot sequence. You should see the run lights stabilize within seconds. Connect your laptop, open Control Studio, and verify the module is recognized. Download the logic and force a test input to confirm the output responds.
Compatible Replacement Models
| Replacement Model | Compatibility Tier | Notes |
|---|---|---|
| CSLS (Charm Smart Logic Solver) | ✅ Drop-in Replacement | Next-gen upgrade. Uses same Control Studio logic. Expands I/O to 96 CHARMs. Higher initial cost, but saves wiring. |
| SLS 1508 (Same Model) | ✅ Drop-in Replacement | Must match exact firmware revision. Cheaper upfront, but verify batch compatibility before buying. |
| Third-Party SIL3 PLC | ❌ Hardware Mod Required | Requires full logic rewrite, new wiring, and complete FAT/SAT testing. Do not attempt unless doing a full panel rip-out. |
EMERSON 12P3162X162 SLS 1508
Frequently Asked Questions (FAQ)
Can I hot-swap this module safely?
Yes, but only if your system is running in dual redundancy. The bumpless transfer handles the switch. Never hot-swap a single, non-redundant card. Always wear an ESD strap when doing it.
Are these actually brand new?
The OEM stopped manufacturing these a while ago. What we sell are New Surplus or professionally refurbished units. They are tested on a live rack and carry a 1-year warranty. Don’t expect factory-sealed boxes from 2015.
Will this work with my old DeltaV SIS software?
Generally, yes. The EMERSON 12P3162X162 SLS 1508 uses the same Control Studio environment. However, if your software version is ancient, you might need to recompile the logic. Always check the OEM compatibility matrix first.
Why does the module keep flashing a red fault LED after installation?
Nine times out of ten, the DIP switches are set wrong. Double-check your photos against the new card. If the switches match, you likely have a grounding issue or a bad backplane slot.
Is the 16-channel limit a hard limit?
Yes, for this specific card. If you need more channels without adding more physical modules, look at upgrading to the CSLS architecture. It uses CHARMs and gives you way more flexibility, though it costs more upfront.
Does it support standard Modbus?
Yes, but it usually routes through the SZ controller or DeltaV Highway for external DCS communication. Don’t try to wire Modbus directly to the safety solver unless your specific architecture explicitly allows it. Check the SISNet documentation.
