Description
Key Technical Specifications
| Parameter | Typical Value / Note |
|---|---|
| Product type | PROFIBUS-DP master communication card |
| Model | DPM-MC2 |
| Host platform | MICRO PANEL MC2 series controllers |
| Primary protocol | PROFIBUS-DP master |
| Connector | Sub-D 9-pin female |
| Interface isolation | Isolated PROFIBUS interface |
| Pinout standard | EN 50170 compliant (RxD/TxD-P/N, DGND, VP, CNTR-P) |
| Indicators | READY, RUN, ERROR, STATUS |
| Installation rule | Install/remove only when host power is OFF |
| Termination | Bus segment must be terminated at both ends; max 2 active terminations per segment |
| Typical applications | MC2-based machine control, packaging, material handling, legacy PROFIBUS-DP networks |
| Condition | Legacy / surplus or refurbished supply typical |
Product Introduction

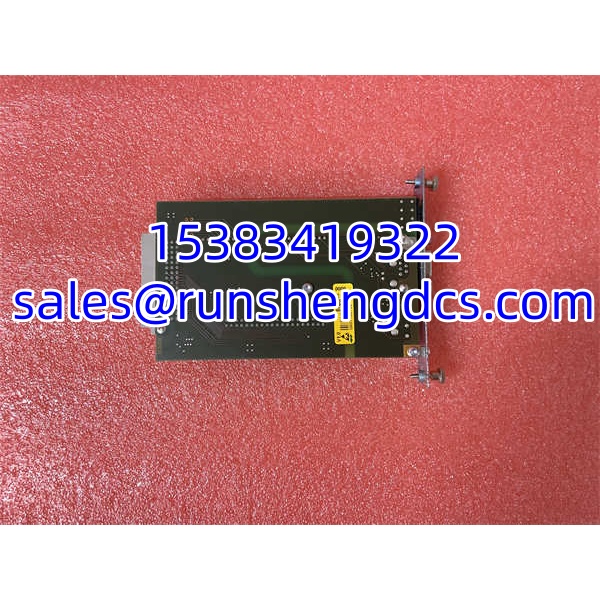

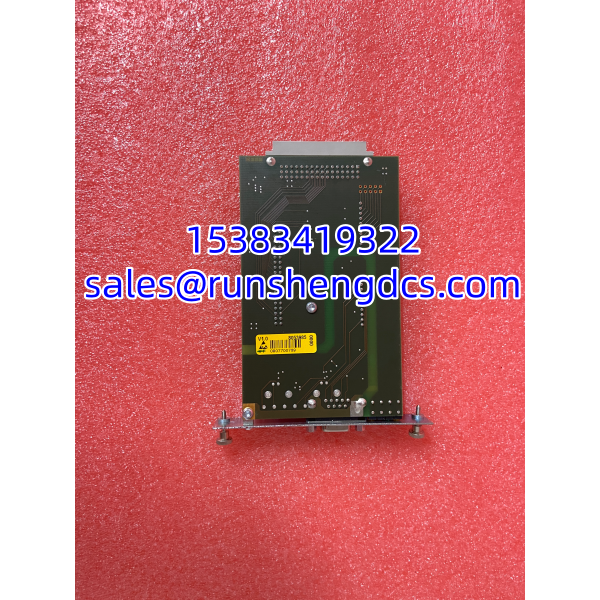

The Eaton DPM-MC2 is a PROFIBUS-DP master communication card designed for the MICRO PANEL MC2 controller platform. It installs into a compatible MC2 slot and allows the controller to manage distributed I/O, drives, valve islands, or other PROFIBUS-DP slaves on the fieldbus segment. Its LED indicators — READY, RUN, ERROR, and STATUS — provide direct visibility into bootstrap state, communication activity, PROFIBUS errors, and token/data transmission.
Procurement risk is significant here. Several surplus listings describe DPM-MC2 as a standalone power monitor, multi-circuit meter, or generic Modbus/EtherNet/IP gateway, but the primary documentation identifies it as a PROFIBUS-DP master card for MICRO PANEL MC2. For replacement, confirm the host controller is a MICRO PANEL MC2 unit with the correct expansion slot, verify the PROFIBUS address and GSD file availability, and check the physical condition of the Sub-D connector and card-edge contacts before deployment.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm Eaton/Micro Innovation branding, DPM-MC2 marking, MICRO PANEL MC2 compatibility, serial number, and hardware revision. Photograph the nameplate and Sub-D connector.
- Visual & Mechanical Inspection — Inspect the Sub-D 9-pin female connector, card-edge contacts, mounting clips, and LED window. Reject units with bent pins, cracked housings, or corrosion.
- Host Slot Installation — Install the card into a compatible MICRO PANEL MC2 controller only after removing power. Verify mechanical seating and retention.
- Power-Up & LED Diagnosis — Apply power to the MC2 host. Observe READY, RUN, ERROR, and STATUS LEDs for normal boot and PROFIBUS-DP master initialization.
- PROFIBUS Communication Test — Connect to a known-good PROFIBUS-DP slave segment with proper termination. Verify node addressing, cyclic I/O exchange, and absence of persistent ERROR indications.
- Final QC & Packaging — Document serial number, hardware revision, LED behavior, test results, and physical condition. Pack in anti-static material with moisture protection.
Field Engineer Gotchas
- Not a standalone power monitor — Despite some third-party descriptions, DPM-MC2 is documented as a PROFIBUS-DP master card for MICRO PANEL MC2, not a standalone multi-circuit power meter.
- Not a generic Modbus/EtherNet/IP gateway — Claims of native Modbus TCP, EtherNet/IP, BACnet, or DNP3 support are not confirmed by the primary DPM-MC2 documentation.
- Host dependency — The card requires a MICRO PANEL MC2 controller. It will not operate as a free-standing communication module.
- Hot-swap risk — The card must be installed and removed only when the host is de-energized.
- PROFIBUS termination — Each segment must be terminated at both ends, and no more than two terminations should be active per segment.
- GSD file availability — Replacing the card may require the correct GSD file and PROFIBUS address configuration in the MC2 project.
- Legacy platform risk — MICRO PANEL MC2 is a legacy platform. Firmware tools, GSD files, and replacement stock may be limited.
Eaton DPM-MC2
Application Scenarios
- MC2 controller PROFIBUS upgrade — Adding PROFIBUS-DP master capability to an existing MICRO PANEL MC2 controller for distributed I/O or drive communication.
- Legacy machine maintenance — Replacing a failed card in an older packaging, printing, or material-handling machine that uses MC2 + PROFIBUS-DP.
- Brownfield migration support — Keeping a PROFIBUS-DP segment operational while migrating higher-level control to a newer PLC platform.
- Spare pool standardization — Maintaining a tested surplus for facilities running MICRO PANEL MC2 controllers.
FAQ
It is documented as a PROFIBUS-DP master communication card for MICRO PANEL MC2 controllers. Some surplus listings describe it as a power monitor, but that is not supported by the primary documentation.
Can it work without a MICRO PANEL MC2 controller?
No. It is an expansion card for the MC2 platform and requires a compatible host controller.
Does it support Modbus, EtherNet/IP, or PROFINET?
The primary documentation describes it as a PROFIBUS-DP master card. Claims of multi-protocol support are not reliably confirmed and should be verified against the physical unit and OEM manual.
Can I hot-swap the card?
No. The card must be installed and removed only when the host controller is de-energized.
What connector does it use?
A 9-pin female Sub-D PROFIBUS connector, EN 50170-compliant.
What should I check before purchasing?
Confirm it is the MICRO PANEL MC2 PROFIBUS-DP master card, verify the host controller model and slot compatibility, and check connector condition, LED function, and GSD file availability.
Is it still available new?
MICRO PANEL MC2 is a legacy platform. Supply is mainly surplus, refurbished, or removed-from-service stock.
