Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Part number | 128229-01 |
| Product type | Rear I/O module / terminal block |
| Compatible front module | 3500/42M Proximitor/Seismic Monitor (e.g., 176449-02) |
| Channel count | 4 channels |
| Supported sensor types | Proximitor, seismic (accelerometer, velocity) — via front module |
| Termination style | Internal termination (wiring at rear of rack) |
| Processing capability | None — passive termination only |
| Firmware | None |
| Power draw | None — powered through front monitor via backplane |
| Mounting | Rear of 3500 rack, mates with front monitor module |
| Approximate weight | ~0.55 kg (vendor-listed) |
| Origin | USA (Bently Nevada) |
Product Introduction
The 128229-01 is not a monitor. It does not process signals, does not hold configuration, and does not generate alarms. It is the rear I/O module that plugs into the back of a 3500/42M Proximitor/Seismic Monitor — most commonly the 176449-02 front card — and provides the physical termination points for field wiring.
That distinction trips up procurement teams regularly. Listings bundle “3500/42M + 128229-01” as a single SKU, which is correct for a complete assembly. But if your 3500/42M front monitor is healthy and only the rear terminal block is damaged, you need the 128229-01 alone. Conversely, buying a 128229-01 without the matching front monitor gives you a block of screw terminals with no intelligence. It is field infrastructure, not a logic device.
QA/QC Transparency SOP
- Intake & Origin Verification — Confirm full part number 128229-01 and verify it is the rear I/O module, not the front 176449-02 monitor. Inspect for bent pins, cracked housing, or corroded terminal screws.
- Mechanical Fit Check — Seat the 128229-01 onto a known-good 3500/42M front module in a test rack. Verify the connector engages fully without force and the module seats flush in the 3500/05 frame.
- Electrical Continuity Tests — Using a Fluke multimeter, verify continuity from each terminal screw to the corresponding backplane pin. Check for shorts between adjacent channels and between signal and ground.
- Live Functional Verification — With the paired 3500/42M powered in a test rack, apply a known prox signal and confirm the front module reads correctly. A bad rear I/O will show open circuits or erratic gap voltage.
- Final QC & Anti-Static Packaging — Seal in ESD bag with desiccant. Include a test report documenting continuity readings, mechanical fit check, and compatibility confirmation with the front monitor part number.
Field Engineer Gotchas
- Buying the wrong half. The 128229-01 is the rear I/O. The 176449-02 is the front monitor. Some vendors list them together; others sell them separately. Ordering the 128229-01 when your front card is dead means you still have no working monitor.
- Internal vs. external termination mismatch. The 128229-01 is an internal-termination rear module. If your rack was wired for external termination (DIN-rail terminal blocks with a cable harness), this part will not match your existing wiring. Verify the termination style before swapping.
- Bent backplane pins. The 128229-01 mates with the front monitor through a pin-field connector. A single bent pin can kill one or two channels while the rest read fine. Inspect the connector before forcing the module into the rack.
- Wrong I/O module for the front card. Not every 3500 rear I/O mates with every 3500 front monitor. The 128229-01 is specific to the 3500/42M prox/seismic configuration. Do not attempt to pair it with a 3500/40M, 3500/45, or 3500/64M without confirming compatibility in the hardware manual.

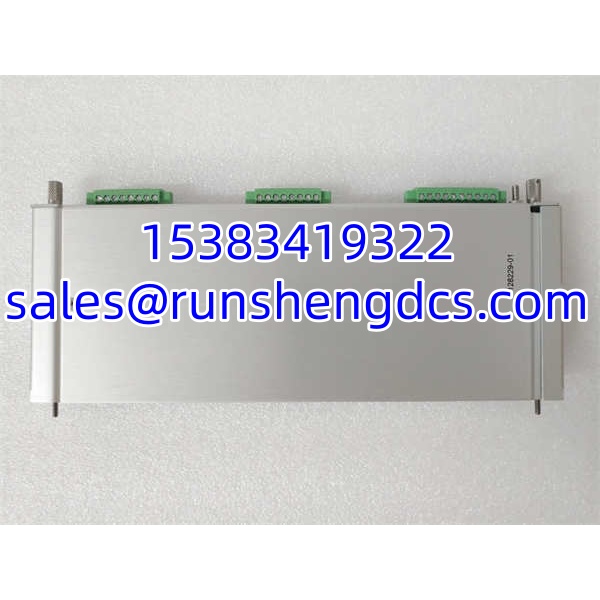

BENTLY 128229-01
Application Scenarios
- Steam turbine TSI rack retrofit. During a turnaround, a technician damaged the rear connector on a 3500/42M while re-terminating prox probes. The front monitor tested fine. Swapping in a 128229-01 restored all four channels without replacing the entire monitor assembly.
- Compressor train expansion. A plant added four new prox channels to an existing 3500 rack. The 128229-01 provided the rear termination for the new 3500/42M slot, keeping field wiring inside the rack rather than running external terminal blocks.
- Corrosion replacement in coastal facility. Salt-air exposure corroded the terminal screws on a 3500/42M rear I/O. The front module was unaffected. Replacing the 128229-01 and re-terminating with ferrules cleared the intermittent channel faults.
FAQ
Q: Is the 128229-01 the same as the 3500/42M monitor?
A: No. The 128229-01 is the rear I/O terminal block. The 3500/42M (e.g., 176449-02) is the front monitor that processes signals. You need both for a working channel.
Q: Can I use the 128229-01 with a 3500/40M?
A: No. The 3500/40M uses a different rear I/O module. The 128229-01 is specific to the 3500/42M prox/seismic configuration.
Q: Does the 128229-01 have firmware or configuration?
A: No. It is a passive terminal block. All configuration, filtering, and alarm logic reside in the front 3500/42M monitor.
Q: What does “internal termination” mean?
A: Field wires connect directly to terminal screws on the rear of the module inside the 3500 rack. The alternative is external termination, where wires land on DIN-rail blocks outside the rack and connect via a cable harness.
Q: My listing says “3500/42M-01-00 + 128229-01.” What am I buying?
A: That is a complete assembly — front monitor (176449-02) plus rear I/O (128229-01). If you only need the rear block, confirm the vendor is selling the 128229-01 separately.
Q: Can I hot-swap the 128229-01?
A: The 3500 system supports hot insertion of modules, but the rear I/O is not typically swapped live because it requires disconnecting field wiring. Always bypass associated trips and follow site MOC procedures before removing any 3500 module.
Q: How do I verify I have the right rear I/O for my front card?
A: Check the front monitor part number (e.g., 176449-02 for 3500/42M) and cross-reference it against the Bently Nevada 3500 hardware manual. The rear I/O must match the front module’s channel count and sensor type.
