Description
Key Technical Specifications
| Parameter | Typical Value |
|---|---|
| Product Type | Keyphasor I/O module |
| System Platform | Bently Nevada 3500 |
| Module Family | 3500/25 |
| Part Number | 125800-01 |
| Primary Function | Keyphasor signal conditioning and reference |
| Input Type | Keyphasor sensor / once-per-revolution pulse |
| Output Role | Digital reference for 3500 monitor modules |
| Typical Applications | Phase measurement, speed reference, vibration analysis synchronization |
| Operating Temperature | -30 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Mounting | 3500 rack-mounted module |
| Availability | Surplus/refurbished; verify revision and test status |
Product Introduction
Replacing a keyphasor module without confirming its role in the 3500 rack is how vibration analysis ends up with missing phase reference, unstable speed readings, or incorrect orbit plots. The Bently Nevada 125800-01 is not a general-purpose I/O card; it is the keyphasor reference interface for the 3500/25 function within the 3500 Machinery Protection System.
The 125800-01 accepts keyphasor sensor signals and conditions them into a digital once-per-revolution reference. That reference is used by 3500 monitor modules to correlate vibration data with shaft position, enabling phase measurement, speed tracking, and synchronous vibration analysis. It is commonly deployed in power generation, oil and gas, chemical processing, and heavy rotating equipment applications where reliable phase reference is critical for diagnostics and protection. Because the 3500 system is configuration-sensitive, this module should be treated as a revision-controlled spare rather than a generic replacement.
QA/QC Transparency SOP
- Intake & Origin Verification: Record the full part number 125800-01, serial number, hardware revision, and physical condition. Confirm it is a 3500/25 keyphasor module and not a 3500 monitor, relay, or display module.
- Live Functional Testing: Install the module in a compatible 3500 rack with proper power and backplane seating. Apply a valid keyphasor signal and verify that the 3500 system recognizes the reference input.
- Electrical Parameter Tests: Check connector integrity, input terminals, LED indicators, and insulation condition. Inspect for corrosion, damaged pins, or burnt components.
- Configuration Verification: Confirm the module is recognized by the 3500 configuration software and that the keyphasor reference is visible to associated monitor channels. Back up rack configuration before shipment.
- Final QC & Anti-Static Packaging: Protect connectors, apply anti-static packaging, and include part number, revision, serial number, and test notes. Do not ship without label confirmation.
Field Engineer Gotchas
- It is not a vibration monitor by itself: The 125800-01 provides the keyphasor reference. Vibration, displacement, or speed monitoring is performed by other 3500 monitor modules.
- Keyphasor wiring must be correct: A reversed, noisy, or missing keyphasor signal will prevent proper phase tracking even if the module appears powered.
- 3500 rack configuration matters: The module must be correctly recognized in the rack configuration. A swapped module without proper configuration may show no fault LEDs but still fail to provide a usable reference.
- Surplus revision risk: Hardware revisions and firmware may differ between units. Always verify compatibility with the existing 3500 rack and monitor modules.
- Do not confuse with display or relay modules: Some listings mislabel 3500 parts. Confirm the module type against the OEM nameplate and manual.

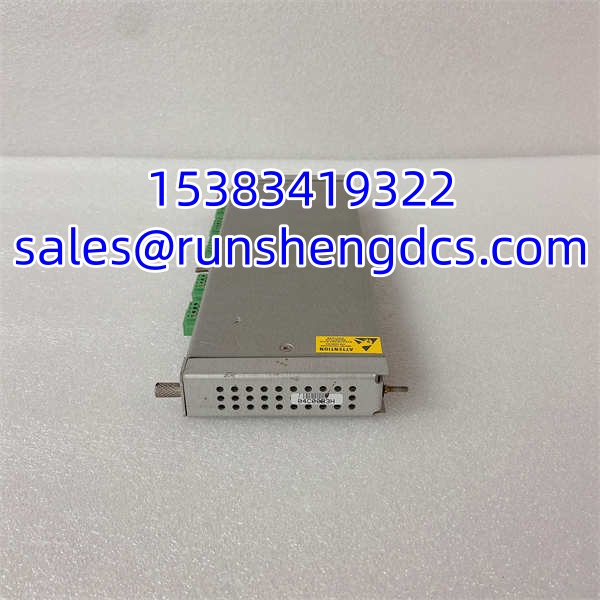

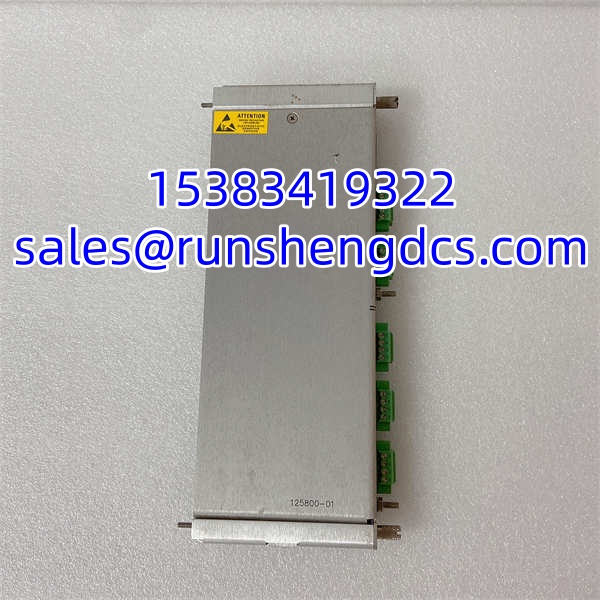

Bently Nevada 125800-01
Application Scenarios
- Turbine and compressor protection: Provides once-per-revolution reference for phase-synchronous vibration analysis.
- Generator and motor monitoring: Supports speed tracking and vibration phase measurement during startup, run-up, and steady-state operation.
- Brownfield 3500 maintenance: Used as a replacement keyphasor module when restoring an existing 3500 rack without migrating to a new platform.
- Vibration diagnostics: Enables orbit plots, phase angle measurement, and synchronous filtering when paired with compatible 3500 monitor modules.
FAQ
Is the 125800-01 a vibration monitor module?
No. It is a keyphasor I/O module for the 3500/25 function. It provides the phase and speed reference used by other 3500 monitor modules.
What does it do in the 3500 system?
It conditions keyphasor sensor signals into a digital once-per-revolution reference for phase-synchronous vibration analysis and speed measurement.
Can I use any 3500 module as a replacement?
No. The 125800-01 is specific to the 3500/25 keyphasor function. Other 3500 modules perform vibration monitoring, relay output, communication, or display functions.
Does it work in all 3500 racks?
It is designed for the Bently Nevada 3500 system. Compatibility depends on rack firmware, configuration, and module revision. Verify against the OEM documentation.
What should I check before buying surplus stock?
Confirm the full part number, revision, serial number, physical condition, test evidence, and compatibility with your existing 3500 rack configuration.
