Description
Key Technical Specifications
- Module Type: 3500/32M 4-Channel Relay Module
- Part Number: 149986-02
- Channel Count: 4 Independent Relay Outputs
- Relay Type: Single Pole Double Throw (SPDT)
- Logic Programming: AND / OR Voting Logic
- Mounting: Full-Height 3500 Rack Slot
- Operating Temp: -30°C to +65°C (-22°F to 150°F)
- Protection: Epoxy Sealed Relays
- Configuration: 3500 Configuration Software / TDXnet
- Compatibility: All 3500 Monitor Modules (42M, 45, 50, etc.)
- Contact Rating: 100,000 Cycle Life (Verify Amp/Volt Rating)
- Application: API 670 Compliant Machinery Protection
Product Introduction
Vibration monitors scream, but relays act. The 3500/32M is the muscle behind the 3500 system’s protection logic. It takes the alarm or danger states from your 3500/42M vibration card or 3500/45 position card and physically closes a contact to trip the turbine or alert the DCS. If this card fails, your machine protection is blind. No software workaround. No virtual relay. Just a silent, dangerous open circuit.
Why does this specific module matter? It’s a 4-channel module with independent programming for each output. You can configure AND/OR voting logic directly on the card, reducing the load on your ESD system. Honest warning: These are aging. The internal relays have mechanical life limits. If you’ve had multiple trips in the last year, the coil might be weak even if the LED says “OK.” Test the contact resistance under load, not just continuity.
Troubleshooting Quick Reference
- Relay Won’t Close / No Trip: 80% chance it’s the logic configuration or a blown fuse on the backplane. Check the 3500 Config software: Is the relay mapped to the correct channel? Is “Bypass” active?
- LED On, But No Voltage at Terminal: Relay contact welded open or coil failed. Measure voltage at the terminal block, not the LED. If LED is green but terminal is dead, the relay is toast.
- Intermittent Trips: Loose backplane connection or ground loop. Reseat the module. Check the rack ground strap. Vibration from the turbine itself can loosen these cards over time.
- All LEDs Off: Backplane power failure. Check the 3500/15 Power Supply. Measure 24VDC at the backplane test points. If power is good, the module is dead.
- Configuration Won’t Download: TDXnet communication error. Verify the 3500/20 RIM or 3500/22 TDI is healthy. Check the rack address dip-switches.

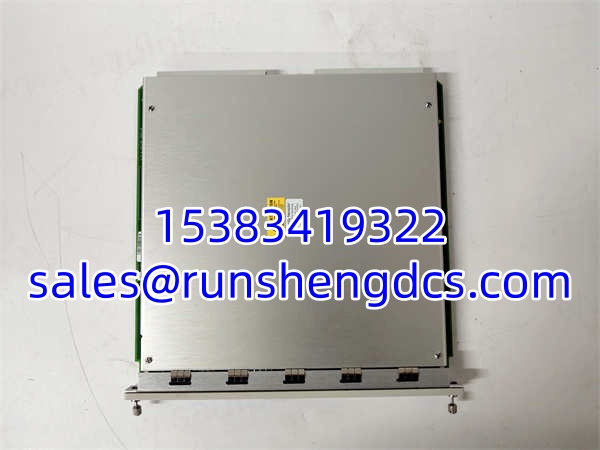

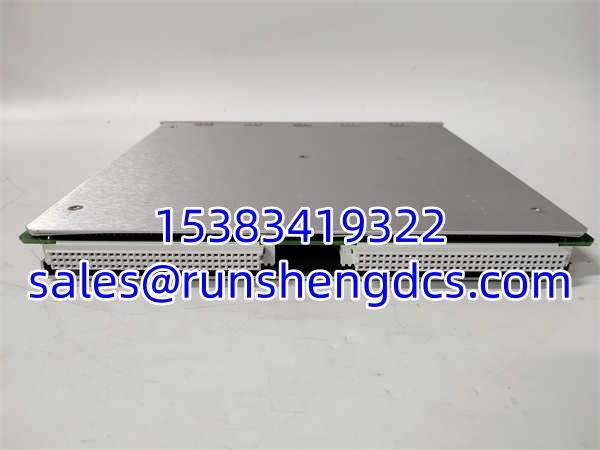

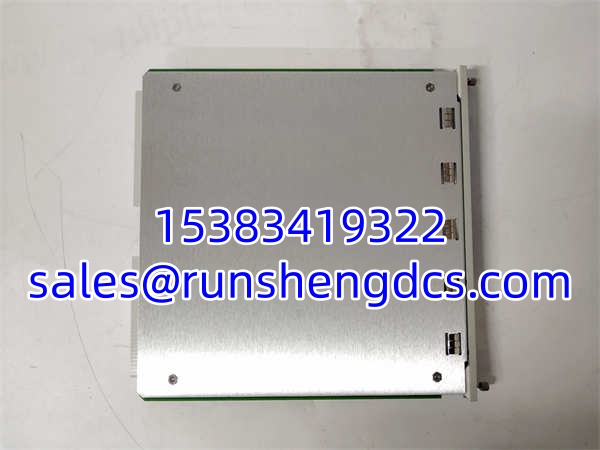

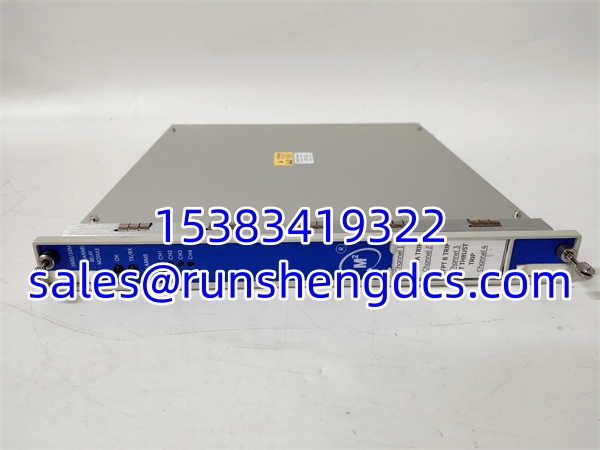

BENTLY 3500/32M
Application Scenarios & Pain Points
- Steam Turbine Trip Logic: Driving the ESD solenoid. If the relay sticks, the turbine overspeeds. If it fails to close, the turbine won’t start. The 3500/32M is the single point of failure between “safe” and “catastrophic.”
- Centrifugal Compressor Vibration: High-frequency vibration can fatigue relay contacts. Standard relays might fail in 2 years; these are spec’d for 100,000 cycles, but verify the trip count in the System 1 software.
- Legacy Refinery Pumps: Original 3500 racks from the 90s. Relay modules are failing faster than the monitors. Sourcing 149986-02 is a race against time.
Compatible Replacement Models
- ✅ Drop-in Replacement: 3500/32M (Exact match). 149986-02 is the ordering code. No config changes.
- ⚠️ Software Compatible: 3500/33M (16-Channel). Same rack, same software, but 4x the channels. Requires re-mapping in 3500 Config. More expensive, but future-proof. Budget 4 hours for engineering.
- ❌ Hardware Incompatible: 3300/16 Relay Module. Different form factor. Different backplane. Different voltage. Will not fit the 3500 rack. Do not buy this expecting a retrofit.
