Description
Key Technical Specifications
- System Platform: Bently Nevada 3500 Machinery Protection
- Module Type: Transient Data Interface (TDI)
- Mandatory Placement: Slot 1 (Adjacent to Power Input Module)
- Data Collection: Steady-state & High-Res Transient Waveforms
- Speed Input Limit: Up to 20 kHz (Multiple events per revolution)
- Analog Output/Static: Four nX static values (Amplitude & Phase) per point
- Communication Protocols: BN Master Computer Protocol, BN TDI Protocol
- Front Panel Port: RS232 (9-pin D-Sub, Max 30m / 100ft)
- Ethernet Options: 10/100 Base-TX (RJ-45) or 100Base-FX Fiber (MT-RJ)
- Alarm Data Buffer: Pre/Post alarm static & waveform capture
- Typical Power Consumption: 7.7 Watts
- Condition: New Surplus / Refurbished
Product Introduction
The 3500/22M is the absolute communications heart of a Bently Nevada 3500 rack. Sitting permanently in Slot 1, this Transient Data Interface (TDI) acts as the bridge between your physical monitoring modules and your host software (System 1 or 3500 Configuration Software). While it doesn’t execute the critical auto-trip protection logic, losing this module means your waveform captures, diagnostic trending, and remote monitoring go completely blind.
Why is this module non-negotiable for critical assets? It handles massive data throughput, supporting up to 20 kHz speed inputs and capturing 48 channels of synchronized waveform data. When a machine faults, the 3500/22M buffers up to 2.5 minutes of pre-alarm waveforms and 1 minute of post-alarm data at 10-second intervals. Honestly, if you are running a 600MW turbine or a critical petrochemical compressor, having a spare 3500/22M on the shelf isn’t a luxury; it’s mandatory insurance against extended diagnostic blackouts.
Troubleshooting Quick Reference
| Fault | Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| No Host Comm | Wrong Slot Placement | 99% | Verify physical location in rack | Must be installed in Slot 1. |
| Data Dropouts | Ethernet Link Loss | 85% | Check Link LED on RJ-45 port | Swap patch cable; verify switch port. |
| Ground Loop Noise | Signal Common Issue | 75% | Measure Signal Common to Earth | Slide PIM switch to “HP” to isolate. |
| No Waveform Capture | Memory / Config | 60% | Check System 1 TDI configuration | Verify dynamic channel enables & disk. |
| RS232 Comm Fail | Baud Rate Mismatch | 50% | Check laptop terminal settings | Ensure Auto-Baud or set to 115.2k. |

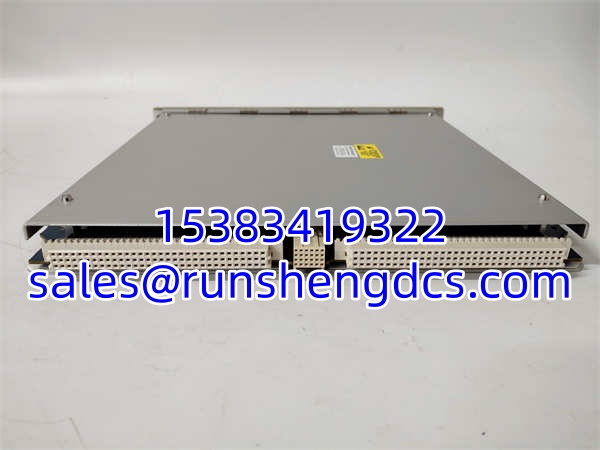

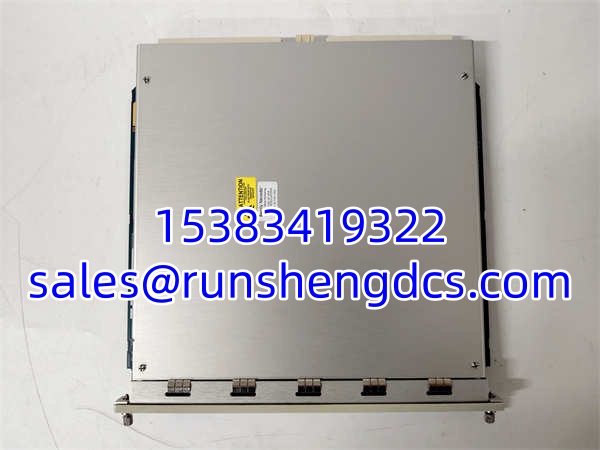

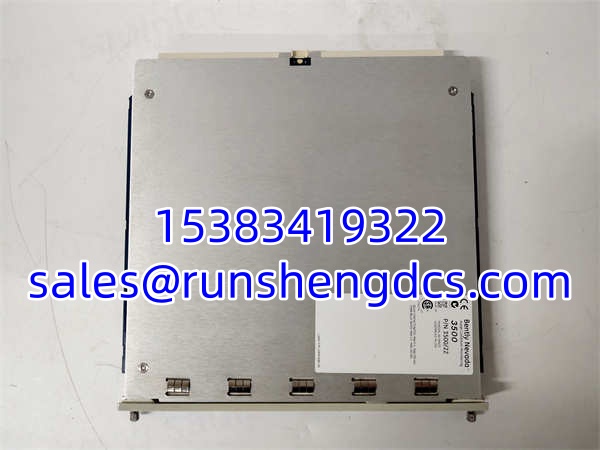

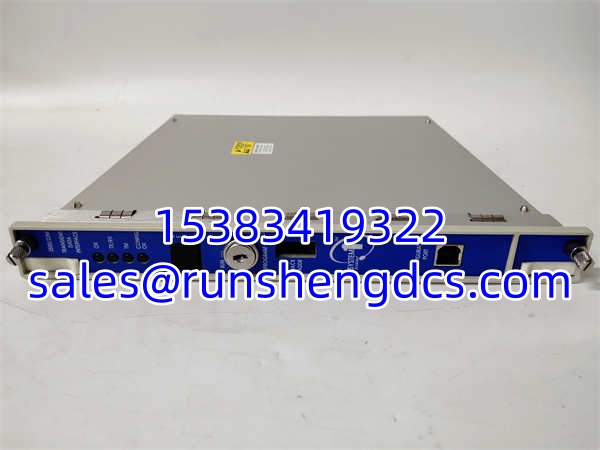

BENTLY 3500/22M
Application Scenarios & Pain Points
- Power Generation Turbines: During startup and coast-down, vibration characteristics change rapidly. The 3500/22M captures high-resolution transient data based on programmable speed windows, allowing engineers to identify critical speed crossings and balance issues.
- Petrochemical Compressors: When a sudden bearing fault triggers an alarm, operators need to know exactly what happened a minute prior. The module’s pre-alarm buffering (2.5 mins of waveforms) provides the exact forensic data needed to prevent catastrophic failure.
- Remote Offshore Platforms: Running copper Ethernet through hazardous, noisy areas fails. Using the 100Base-FX fiber optic variant of the 3500/22M guarantees clean, isolated data transmission up to 400 meters back to the control room.
Compatible Replacement Models
- ✅ Drop-in Replacement: 3500/22M. Exact match. Same Slot 1 requirement, same TDI functionality. Cost: ~3,000–7,700 surplus depending on vendor and Ethernet variant.
- ⚠️ Software Compatible: 3500/20 (RIM). Rack Interface Module. Provides basic communication but lacks the advanced transient/waveform data collection and TDXnet processing of the 22M. Labor: Requires System 1 reconfiguration.
- ❌ Hardware Incompatible: 3500/92. Communication Gateway. Designed for Modbus RTU/TCP to DCS/PLC systems. Completely different protocol and function. Do not substitute for host PC/System 1 communication.
