Description
Key Technical Specifications
- Product Model: UNS4881b,V4
- Product Code: 3BHE009949R0004
- Brand: ABB
- Product Family: Unitrol 5000
- Product Type: Automatic Voltage Regulator unit / AVR unit
- Primary Function: Generator / excitation voltage regulation and stabilization
- Application Area: Power generation, transmission, distribution, renewable power systems, industrial power systems
- Input Voltage Range: 85–300 VAC, 50/60 Hz — treat as reference range; confirm on nameplate
- Output Voltage Range: 80–300 VDC — treat as reference range; confirm on nameplate
- Operating Temperature: Listed as -40°C to +70°C in some supplier data — verify against ABB documentation before relying on it
- Installation Type: Unitrol 5000 excitation/AVR system integration
- Verification Required: Nameplate, hardware version, firmware, controller compatibility, and excitation system configuration
Product Introduction
In a generator excitation cabinet, the AVR is one of the parts you do not want to guess about. It sits between the control/protection logic and the exciter field, and its job is to keep generator voltage stable under load changes, grid disturbances, and transient events. The ABB UNS4881b,V4 3BHE009949R0004 belongs to that function as a Unitrol 5000 AVR unit, not as a random DCS/PLC spare.
For procurement, the important point is compatibility. Unitrol 5000 hardware is application-sensitive. Wrong hardware version, wrong firmware, wrong configuration, or wrong excitation system mapping can make the unit unusable — or worse, unsafe in service. If this is a replacement, match the full type string UNS4881b,V4 and order code 3BHE009949R0004, then confirm it fits the existing Unitrol 5000 excitation system.
Troubleshooting Quick Reference
| Fault | Likely Cause | Quick Check | Fix |
|---|---|---|---|
| Generator voltage unstable | AVR feedback issue, PT/VT wiring, exciter problem, parameter drift | Check generator voltage, PT/VT inputs, AVR status, and exciter field current | Verify sensing wiring; review AVR parameters; check exciter circuit |
| AVR not powering up | Auxiliary supply missing, fuse/open circuit, wiring fault, unit failure | Measure input supply at AVR terminals | Confirm 85–300 VAC supply range; check fuses and control power |
| Overvoltage / undervoltage alarm | Wrong setpoint, feedback loss, regulator fault, exciter issue | Compare actual voltage with AVR setpoint and feedback | Verify PT/VT ratio, wiring, and AVR voltage reference |
| Unit not recognized by control/HMI | Firmware mismatch, communication wiring, wrong hardware version | Check Unitrol 5000 HMI/controller alarms | Confirm UNS4881b,V4 matches existing system configuration |
| Exciter field output abnormal | AVR output stage issue, field circuit fault, protection trip | Measure AVR output and field circuit safely | Isolate field circuit; check protection settings and wiring |
| Intermittent regulation | Loose terminals, EMI, bad sensing cable, aging components | Inspect terminals, shielding, and signal cables | Tighten connections; separate power and sensing cables |

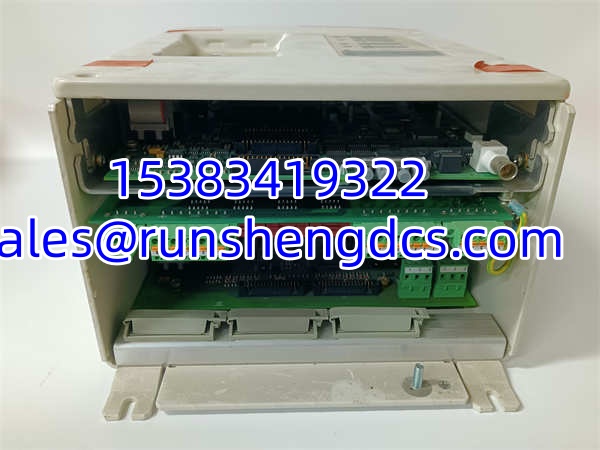

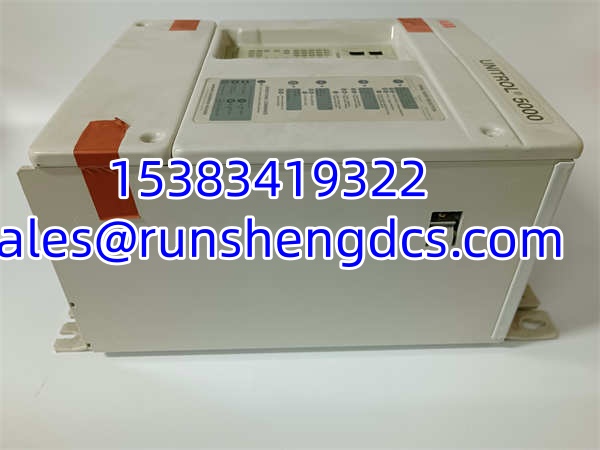

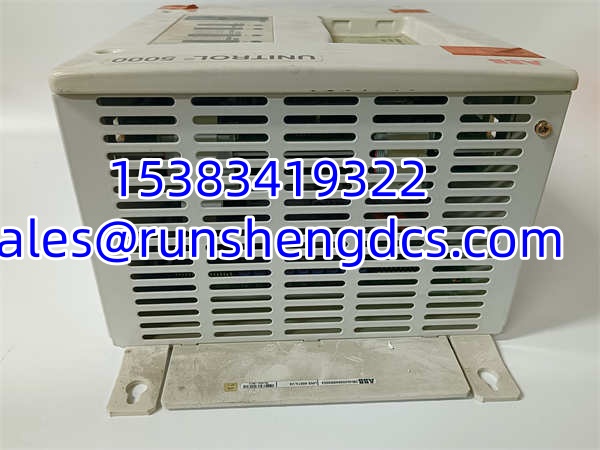

UNS4881b,V4 3BHE009949R0004
Application Scenarios & Pain Points
- Generator excitation systems: Used to regulate generator terminal voltage and support stable excitation control. Pain point: replacement AVR units must match the existing Unitrol 5000 configuration.
- Power plant generation units: Supports voltage stability during load changes, grid faults, or startup/shutdown sequences. Pain point: incorrect AVR hardware can affect generator protection and grid compliance.
- Industrial power generation / cogeneration: Used where stable voltage output is required for plant loads. Pain point: long lead times make exact-match spares important.
- Renewable / hydro / diesel generator systems: Applied where automatic voltage regulation is needed for reliable generator operation. Pain point: field wiring, PT/VT ratios, and firmware must be verified.
- Legacy Unitrol 5000 maintenance: Older excitation cabinets may need an exact UNS4881b,V4 match. Pain point: surplus listings often mix AVR units with unrelated PLC/DCS modules.
