Description
Key Technical Specifications
- Manufacturer: ABB
- Product Family: Relion® 615 Series
- Model Designation: REF615C-D
- Full Order Code: HCFFAEAGABC2BAA1XD
- Form Factor: Compact withdrawable plug-in unit (ANSI-style)
- Protection Functions: Directional/non-directional overcurrent, thermal overload, directional/non-directional earth-fault, sensitive earth-fault, transient earth-fault, over/under voltage, over/under frequency, open phase
- Communication Protocols: IEC 61850 Ed. 1 & 2 (including GOOSE, IEC 61850-9-2 LE), PRP, HSR, IEEE 1588 V2, Modbus, DNP3, IEC 60870-5-103; Profibus DPV1 via SPA-ZC 302 adapter
- Configuration Tool: PCM600 (graphical logic programming with timers, flip-flops, AND/OR gates)
- Display: Large graphical LCD with customizable single-line diagrams; web-browser-based HMI option
- Optional Features: Arc-fault protection (3-channel plug-in card), advanced fault location, multi-shot auto-reclose
- Security: 4-level role-based user authentication (viewer, operator, engineer, administrator)
- Weight: Approximately 2.3 kg (unit only)
Product Introduction
A feeder trips on an ungrounded distribution network at 2 AM. The SCADA screen lights up with earth-fault alarms, and the operator cannot tell whether it is a real fault or a CT saturation artifact. The relay sitting in that cubicle — REF615C-D — is the device that made the trip decision. It reads current and voltage inputs, runs multi-frequency admittance-based earth-fault detection, and either isolates the faulted section or holds the line depending on how your protection engineer configured the logic blocks in PCM600.
This relay belongs to ABB’s Relion 615 family, a mature platform built around IEC 61850 from the ground up. The “C-D” in the model designation points to a specific standard configuration within the 12 available REF615 variants — each configuration bundles a different combination of protection functions and I/O channel counts. The full order code HCFFAEAGABC2BAA1XD locks in the exact hardware revision, firmware version, and option cards installed at the factory. Swap in a unit with a different order code and you risk missing protection functions, mismatched I/O mappings, or a configuration file that PCM600 refuses to download. Bottom line — the order code matters as much as the model number.
Troubleshooting Quick Reference
| Fault | Likely Cause | Relevancy | Quick Check | Fix |
|---|---|---|---|---|
| Relay in alarm / fault LED lit | Internal self-test failure or hardware fault | High (80%) | Check local display for specific fault code; cycle power once | Note fault code; if persistent after power cycle, replace unit |
| Protection function not operating | Wrong standard configuration or logic not programmed | High (75%) | Open PCM600 project; verify protection function blocks are enabled and mapped to outputs | Reconfigure logic; download updated project to relay |
| Communication loss (IEC 61850) | Network misconfiguration, GOOSE subscription mismatch, or PRP/HSR ring fault | Medium (65%) | Check Ethernet link LEDs; verify station configuration in PCM600 | Verify IP/subnet settings; check GOOSE control block subscriptions |
| Erroneous current/voltage readings | CT/VT wiring fault, wrong ratio setting, or analog input card issue | Medium (60%) | Measure secondary current at relay terminals with clamp meter; compare to displayed value | Verify CT ratio settings in configuration; check terminal wiring |
| Breaker command not executing | Output relay not mapped, trip circuit wiring fault, or DC supply issue | Medium (55%) | Check output status in local HMI; measure voltage at trip coil terminals | Verify output mapping in PCM600; check trip circuit continuity and DC supply |
| Display blank / no HMI response | Power supply failure or front panel board fault | Low (40%) | Measure 24V DC or 110V AC at relay power input terminals | Check upstream fuse/breaker; verify power supply voltage within rated range |

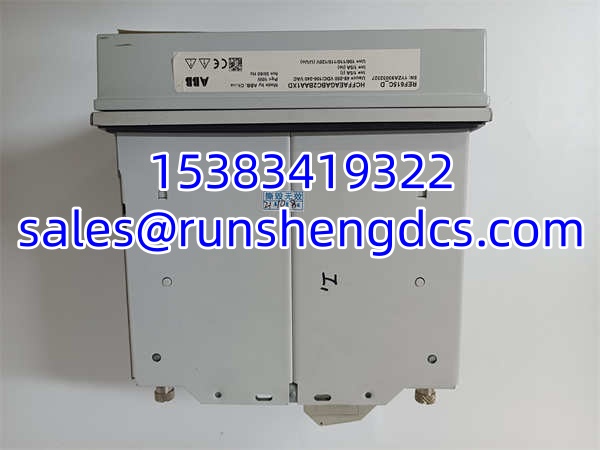

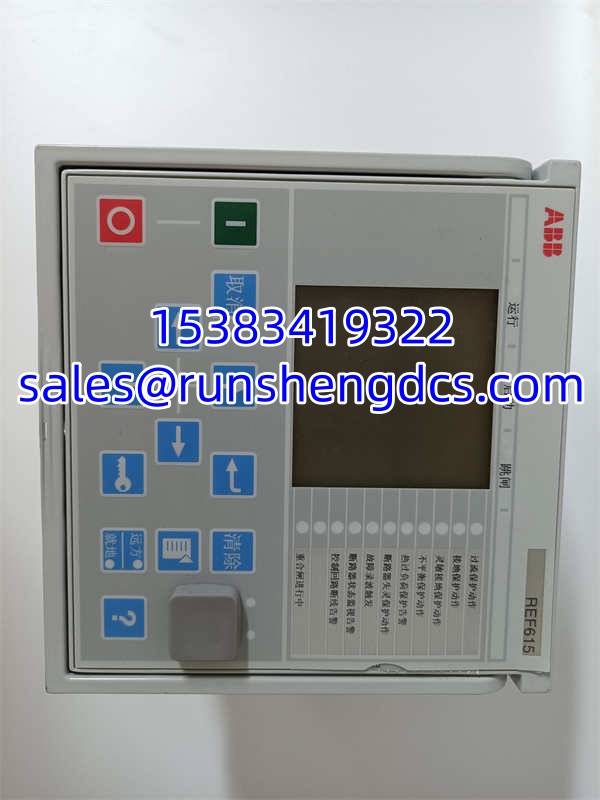

ABB REF615C-D HCFFAEAGABC2BAA1XD
Application Scenarios & Pain Points
- Utility distribution substation with ungrounded or resonant-grounded network: Earth-fault detection on these networks is notoriously difficult — zero-sequence currents are tiny. The REF615’s multi-frequency admittance-based protection handles this, but the pain point is tuning the admittance criteria to your specific network capacitance without false tripping during transient switching events.
- Industrial plant with distributed generation: When generators are connected to the same bus as utility feeders, fault current direction reverses depending on which source is online. The directional overcurrent elements need correct polarization voltage settings — get this wrong and the relay trips the healthy feeder instead of the faulted one.
- Petrochemical facility requiring arc-flash protection: The optional 3-channel arc protection plug-in card adds fast optical fault detection inside switchgear compartments. The challenge is routing the fiber-optic sensors through crowded cable compartments without damaging the fibers during maintenance pulls.
- Aging substation retrofit replacing legacy SPACOM relays: The REF615 is a common upgrade path from older ABB SPACOM-series protection. The pain point is that the panel cutout dimensions differ — you need the dedicated expansion tool to modify the mounting hole, and the existing wiring harness may need adapter cables.
