Description
Key Technical Specifications

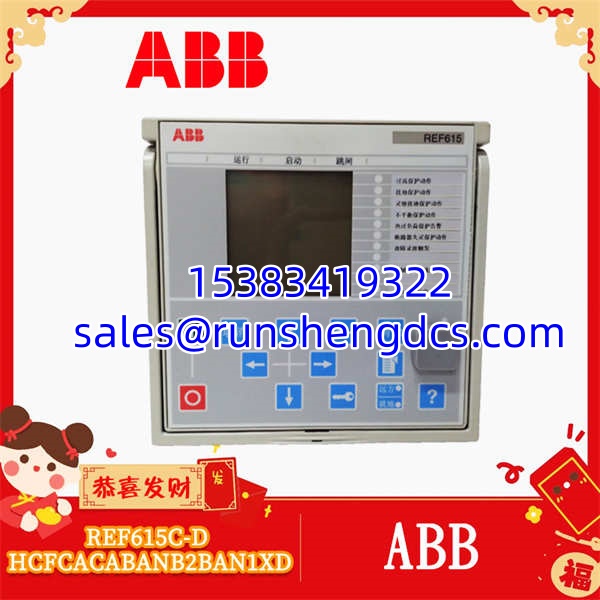

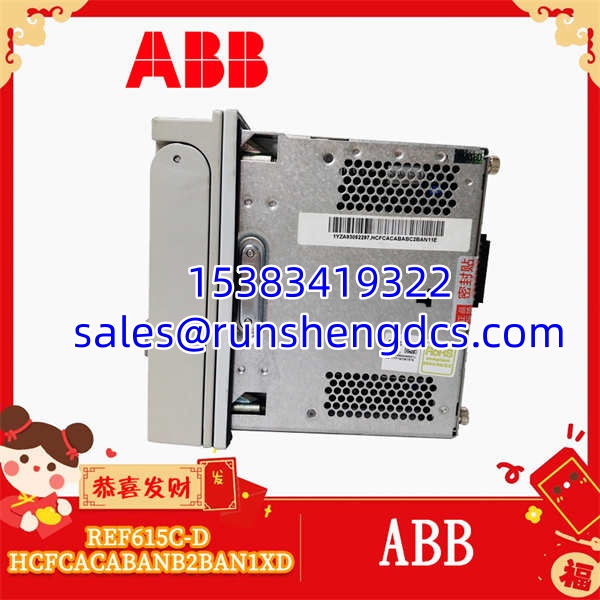

- Product Model: REF615C-D HCFCACABANB2BAN1XD
- Manufacturer: ABB
- System Compatibility: Relion 615 Series (IEC)
- Protection Functions: Non-Directional Overcurrent, Non-Directional Ground Fault
- Communication Protocols: IEC 61850 (Ed 1 & 2), Modbus, DNP3, IEC 60870-5-103
- Redundancy Support: Parallel Redundancy Protocol (PRP) & High Availability Seamless Redundancy (HSR)
- Time Synchronization: IEEE 1588 v2 Precision Time Protocol
- Network Topologies: Radial, Ring, and Meshed Distribution Networks
- Grounding Compatibility: Ungrounded, Resistance, Impedance, and Solidly Grounded
- HMI Interface: Editable Single-Line Diagram on Large LCD
- Installation Type: Flush Mount with Pluggable Terminal Design
- Product Condition: New Surplus / Refurbished (Verify with supplier)
Product Introduction
A medium-voltage feeder faults at 2 AM. If your protection relay doesn’t isolate the fault in milliseconds, you’re looking at a cascading outage across the entire plant. The ABB REF615C-D HCFCACABANB2BAN1XD is the exact digital relay designed to stop that nightmare. It sits in your MV switchgear, constantly watching current and voltage, ready to trip the breaker before the damage spreads.
Why this specific C-D configuration? The “C-D” denotes non-directional overcurrent and non-directional ground fault protection. It’s the workhorse for standard radial feeders where directional sensing isn’t required. Bottom line—it uses multi-frequency admittance ground fault protection, which means it actually distinguishes real ground faults from transient noise. No more nuisance tripping when a nearby capacitor bank switches on.
Troubleshooting Quick Reference
- Relay Won’t Communicate on IEC 61850: 70% chance of IP subnet mismatch or CID file mismatch. | Ping the relay IP. Verify the CID file loaded in SCADA matches the relay’s actual configuration.
- Nuisance Ground Fault Trips: 60% chance of transient capacitive charging current. | Check the multi-frequency admittance settings. Increase the operate threshold or adjust the time delay.
- HMI Blank / Unresponsive: 50% chance of corrupted display firmware or loose ribbon cable. | Power cycle the relay. If still blank, reseat the HMI panel ribbon connector (T20 Torx required).
- False Overcurrent Pickup: 40% chance of CT saturation or incorrect ratio setting. | Verify the CT ratio parameter matches the physical CT nameplate. Check for DC offset in the fault record.
- GOOSE Messages Not Received: 30% chance of VLAN tagging issue. | Confirm the switch port is configured for the correct VLAN. Check PRP/HSR redundancy settings.
Application Scenarios & Pain Points
- Industrial Distribution Feeders: Standard radial MV feeders feeding plant transformers. The C-D config provides fast, simple overcurrent and ground fault clearing without the complexity of directional elements.
- Renewable Energy Collector Systems: Wind and solar farms with distributed generation. The REF615 adapts to both ungrounded and impedance-grounded collector networks, handling reverse power flow gracefully.
- Municipal Water/Wastewater Plants: Critical infrastructure requiring high availability. PRP and HSR redundancy ensures the relay stays online even if one Ethernet switch fails.

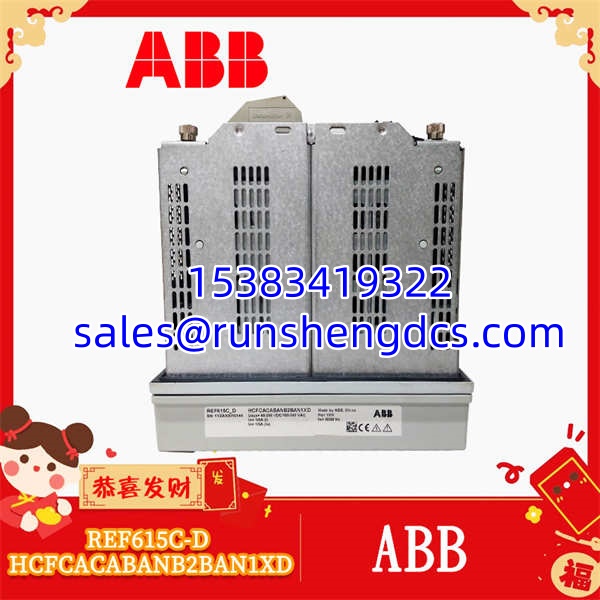

ABB-REF615C-D-HCFCACABANB2BAN1XD
Compatible Replacement Models
- ✅ Drop-in Replacement: REF615C-D HCFCACABANB2BAN1XD. Exact same ordering code. Same protection functions, same I/O, same communication. Load the existing parameter file and go.
- ⚠️ Software Compatible: REF615C-D HCFCACABANB2BAN1XE (or newer revision suffix). Same C-D protection core, but verify the hardware revision. May require a parameter file migration using PCM600. Expect 1-2 hours of commissioning.
- ❌ Hardware Incompatible: REF615C-K. The K-series includes voltage measurement modules. Different internal hardware, different ordering code structure. Do not substitute unless your application specifically requires voltage-based protection or auto-reclose.
