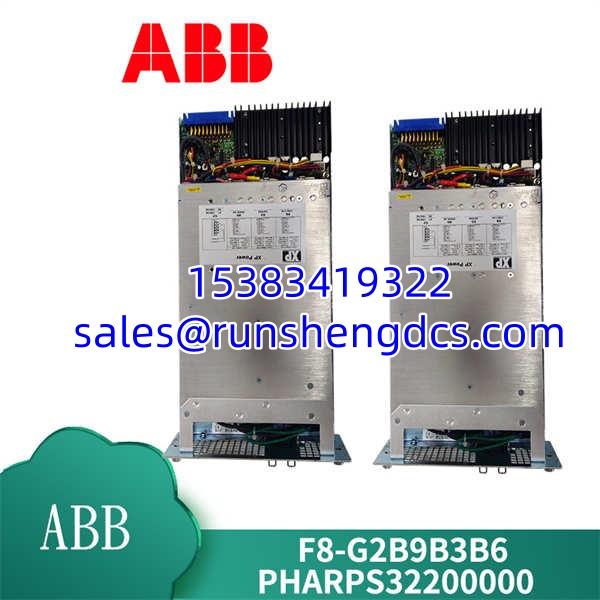

ABB PHARPS32200000-F8-G2B9B3B6 | AC 800M Redundant Power Supply

Description

Product Introduction

The ABB PHARPS32200000-F8-G2B9B3B6 is a high-capacity power supply unit designed for the AC 800M controller series. It ensures stable power delivery to the CPU and I/O modules within a redundant system architecture.

This unit is built for harsh environments, operating reliably from -40 to +70 °C. It delivers a solid 20 A of current at 24 VDC, which is often the deciding factor when sizing a rack for dense I/O configurations. In field deployments, we’ve found its wide temperature tolerance is a lifesaver in unheated enclosures.

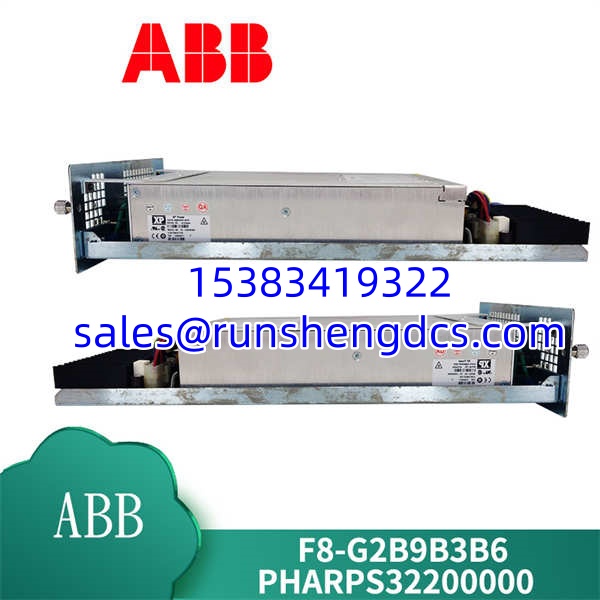

ABB-PHARPS32200000-F8-G2B9B3B6

Key Technical Specifications

Compatibility & Replacement Matrix

• PHARPS32200000-F8-G2B9B3B6 → PHARPS32200000 : Direct — The base model. The suffix on your part number typically denotes specific regional certifications or packaging details that don’t affect electrical compatibility.
• PHARPS32200000-F8-G2B9B3B6 → PHARPS32200000-F8 : Direct — Functionally identical. The extended suffix is often for internal ABB logistics.
• PHARPS32200000-F8-G2B9B3B6 → PHARPS32100000 : Incompatible — The 32100 model is a 10 A version. While it fits the same slot, it cannot supply enough current for a fully loaded rack designed for the 32200.

Quality Inspection & SOP Transparency

We treat every power supply as a potential single point of failure. Here is our actual inspection process for the ABB PHARPS32200000-F8-G2B9B3B6.

1. Incoming Inspection: We start by tracing the source. Every unit comes with a packing list, and we verify the serial number against ABB’s records to flag any known counterfeits. The visual check is critical: we look for any signs of repair, corrosion on the DIN rail clips, or that yellowish tint old plastics get. All accessories, like terminal block covers, must be present.
2. Live Functional Test: We don’t just power it on. The module is installed in a live ABB AC 800M rack. We monitor the boot sequence and the status LEDs (the “Pwr” LED should be a steady green, not flickering). We then use an electronic load bank to ramp the output up to 18 A—about 90% of its rating—and log the voltage stability and temperature rise for 24 hours. Test photos and video are available on request.
3. Electrical Parameter Test: Safety first. We perform an insulation resistance test using a 500 V megger, ensuring we get a reading >10 MΩ between the input terminals and the chassis ground. Ground continuity is also verified.
4. Firmware Verification: While a PSU doesn’t run application logic, it does have internal firmware for communication with the CPU. We read and record this version. For this model, it’s less about logic and more about ensuring the module correctly reports its health status to the controller.
5. Final QC & Packaging: After passing all tests, a technician signs off on the QC sheet. The unit is sealed in an anti-static bag, packed in bubble wrap, and placed in a double-walled carton with a “QC Passed” label and the date.

Common Replacement Pitfalls

Swapping a power supply seems simple, but it’s a common source of headaches. Here are the traps we see engineers fall into.

1. Power Budget Shortfall: This is the big one. The is a 20 A unit. Its sibling, the PHARPS32100000, is only 10 A. They look identical. If you replace a 32200 with a 32100 in a fully loaded rack, the system will power up, but as soon as you energize all the I/O modules, the supply will overload and shut down. Always calculate your total rack load and add a 20% safety margin.
2. Ignoring the Input Source: The module takes 24 VDC. It’s not a universal AC/DC supply. Ensure your external 24 VDC source is clean and regulated. We once saw a module fail prematurely because the plant’s 24 VDC supply was noisy and spiking to 32 VDC. A multimeter check before installation would have caught it.
3. ESD Damage: It’s a power supply, so ESD isn’t a concern, right? Wrong. The communication interface that reports status to the CPU is sensitive. Always wear a wrist strap. Watched a technician grab one by the connectors on a dry winter day. It powered up, but the controller never saw it. An expensive lesson.
4. DIN Rail Seating: It sounds basic, but these units are heavy. If it’s not fully clicked onto the DIN rail, the vibration in a cabinet can cause an intermittent connection at the backplane. Give it a firm push until you hear the locking mechanism engage.
5. Terminal Torque: The input and output terminals can loosen over time due to thermal cycling. When replacing, check the torque on all terminal screws. A loose 20 A connection will get hot, very hot.

Get these five right, and you’ll avoid a weekend call-out.

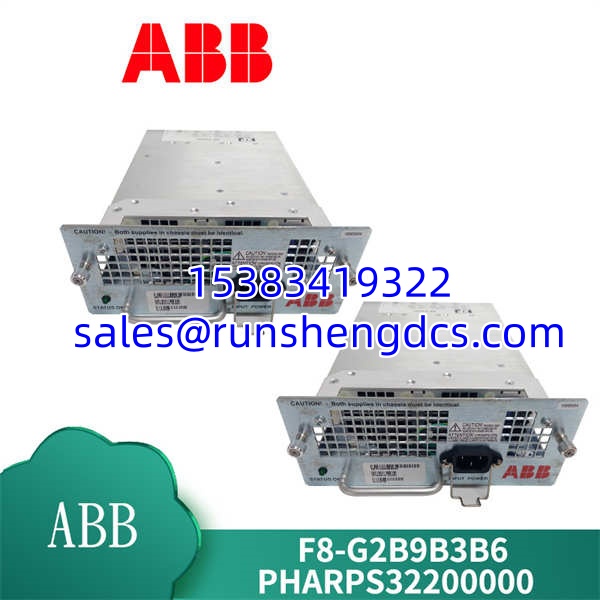

ABB-PHARPS32200000-F8-G2B9B3B6

FAQ

My system runs AC 800M V5.0 — will this module work?
Yes. The -F8-G2B9B3B6 is a hardware component that is backward and forward compatible across all versions of the AC 800M system, from the earliest releases to the current one. It doesn’t run application code, so firmware version isn’t a concern in the same way it is for a CPU module.

Can I just swap this in directly?
Yes, it’s a hot-swap module. You can replace a failed unit in a redundant pair without shutting down the system. The remaining power supply will carry the full load while you swap the faulty one. Just be careful with the live terminals.

What’s the difference between this and the PHARPS32100000?
It comes down to current. Here is the breakdown:

Is this a genuine ABB part?
Yes. We source directly from authorized distributors and perform the multi-point inspection detailed above. The condition is New Original (New Surplus), meaning it’s a genuine, unused part that may have been overstock.

My rack has 12 AI modules. Is the 20 A supply enough?
Let’s do the math. An AI module draws about 0.15 A. Twelve of them is 1.8 A. The CPU (PM864) draws about 1.5 A. Your base load is around 3.3 A. The 20 A supply is more than enough, even with a 20% headroom. You could likely get away with the 10 A version, but the 20 A gives you room to expand later.
