Description
Key Technical Specifications
- Product Model: PFEA112-65 / 3BSE050091R65
- Manufacturer: ABB
- Product Type: Web Tension Controller / Electronic Amplifier
- Protection Rating: IP65 (Dust-tight and water-resistant)
- Processor: 32-bit RISC CPU
- Sensor Compatibility: ABB Pressductor® Load Cells (e.g., PFTL, PFCL series)
- Communication: Profibus-DP Interface
- Analog Outputs: 0-10V DC / 4-20mA
- Excitation Signal: 330Hz for piezoelectric sensors
- Display: 2×16 Character LCD with multi-language support
- Operating Temperature: -20°C to +50°C
Product Introduction
Web tension control is unforgiving. A 1% deviation in a paper machine or steel rolling mill can cause wrinkles, edge breaks, or catastrophic web snaps. The ABB PFEA112-65 (3BSE050091R65) acts as the dedicated processing brain for tension measurement, taking raw millivolt signals from Pressductor® load cells and converting them into stable, actionable data. Unlike standard PLCs that get bogged down in general logic, this module runs a dedicated 32-bit RISC processor optimized specifically for real-time tension filtering and PID control.
Why choose this specific IP65-rated controller? It is built to survive in the field, not just in a climate-controlled cabinet. The sealed enclosure allows direct mounting on machinery near the rollers, drastically reducing cable lengths and signal noise. With integrated Profibus-DP, it hands off precise tension values to the main DCS or PLC without requiring complex analog scaling. Bottom line — it provides deterministic, high-speed tension regulation that keeps your production line running at full speed without constant operator intervention.

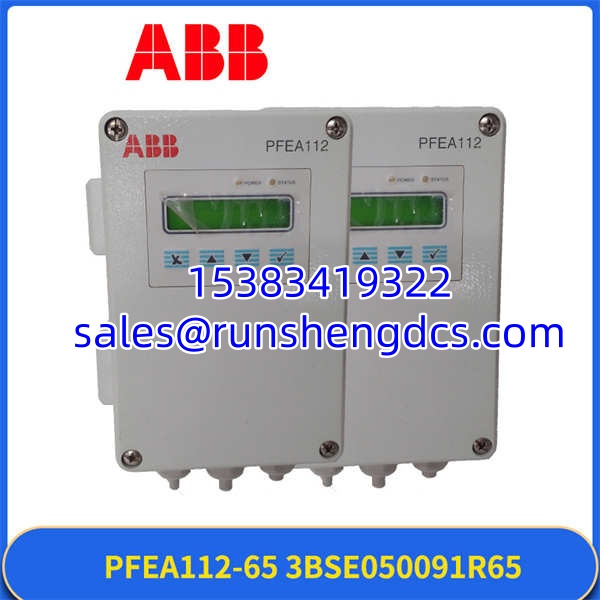

ABB-PFEA112-65-3BSE050091R65
QA/QC Transparency SOP
Trust is earned through testing, not marketing. Here is exactly how we validate surplus ABB tension hardware before it ships:
- Intake & Origin Verification: We inspect the IP65 enclosure seals for degradation and verify the 3BSE050091R65 label against ABB date codes to rule out counterfeit pulls.
- Live Functional Testing: The module is powered up on a test bench. We inject simulated 330Hz excitation signals and millivolt inputs to confirm the dual-channel amplifiers scale the data accurately.
- Electrical Parameter Tests: Using calibrated Fluke multimeters, we verify the 24VDC power rail tolerance and test the isolated 0-10V analog outputs for linearity.
- Firmware/Config Verification: We read the internal memory to confirm the Profibus-DP address and PID parameters are reset to factory defaults (or match your custom backup).
- Final QC & Anti-Static Packaging: Passed units receive a QC sign-off sticker, are wrapped in industrial-grade anti-static shielding, and packed with foam inserts to prevent transit damage.
Field Engineer Gotchas
- Wrap Angle Gain Miscalculation: The PFEA112-65 requires you to input the exact wrap angle of the web around the measuring roll. If your roll is 115° instead of 90°, you must calculate and enter the correct wrap gain coefficient. I’ve seen entire coating lines produce scrap because a tech assumed 90° and didn’t adjust the math.
- Sensor Wiring Polarity: The Pressductor® sensors use a specific 3-1-2-4 pinout for excitation and signal. If your tension reading goes negative when the web pulls, you have the signal wires (2 and 4) reversed. Swap them before you tear apart the mechanical mounting.
- Profibus-DP Termination: When daisy-chaining these on a DP network, forgetting to flip the terminating resistor switch to “ON” at the physical end of the line will cause intermittent communication faults. The controller will drop off the bus right when the line hits top speed.
- Real-World Warning: Never use standard unshielded wire for the load cell connections. The 330Hz excitation signal is highly susceptible to VFD noise. Always use shielded twisted-pair cable, and ground the shield at the controller side only. Ground loops will make your tension display bounce wildly.

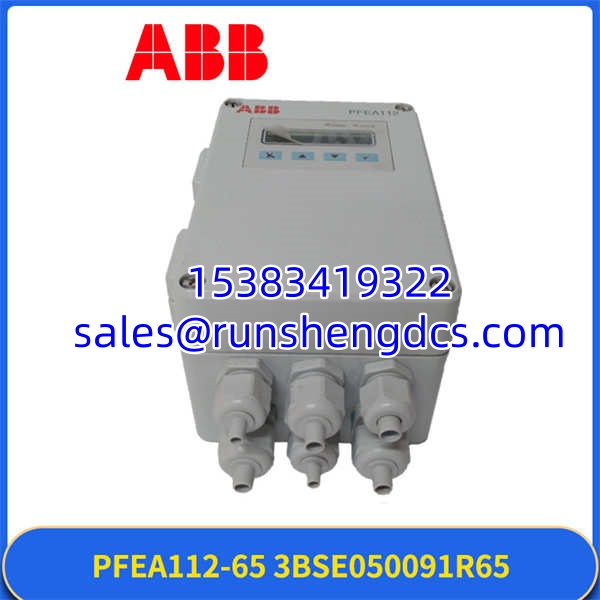

ABB-PFEA112-65-3BSE050091R65
Application Scenarios
- Steel Rolling Mills: Maintains constant tension between stands to prevent strip breakage, utilizing the module’s high-speed PID loop to compensate for motor speed changes.
- Printing & Converting: Regulates tension on thin polymer films to ensure precise color registration, relying on the 32-bit processor’s digital filtering to ignore mechanical vibrations.
- Paper & Pulp Processing: Controls web tension across drying cylinders, leveraging the IP65 rating to survive in high-humidity environments without additional protective enclosures.
FAQ
Does this module support hot-swapping?
No. Tension controllers are integral to the safety and operation of the web line. You must stop the web and safely transfer tension before replacing this module to prevent mechanical damage or web snapping.
What load cells are compatible with this controller?
It is specifically designed for ABB Pressductor® piezoelectric load cells, such as the PFTL101, PFTL201, and PFCL301 series. It provides the required 330Hz excitation. Standard strain gauge load cells will not work with this module.
Can I use this in a dusty, high-pressure washdown area?
Yes. The “-65” in PFEA112-65 indicates an IP65 rating. The enclosure is fully sealed against dust and low-pressure water jets, making it ideal for direct mounting on paper machines or food processing lines.
How do I test this board offline?
You can power it up with 24VDC and use the front-panel LCD to navigate the diagnostic menus. The module has built-in self-tests for the excitation circuit and A/D converters. You can also simulate a load cell using a calibrated signal generator if you have one.
Is this module still supported by ABB?
The PFEA112 series is a mature, widely installed platform. While newer models like the PFEA113 exist, ABB and authorized distributors continue to support the PFEA112-65 as a valid spare part for existing installations.
What is the return policy if it doesn’t fit my system?
We offer a 1-year warranty and a 30-day compatibility check window. If you provide your existing load cell model and Profibus configuration before ordering, we will confirm fitment. If it arrives and doesn’t work in your specific configuration, contact us immediately for an RMA. We test every unit, but field conditions vary.
