ABB DSRF180A 57310255-AV | Advant OCS Frame Board, Surplus

Description

Key Technical Specifications

Product Introduction

Frame boards in legacy DCS racks don’t get much attention until one cracks, corrodes, or loses a backplane trace. Then suddenly you can’t seat a controller module, a power supply bus goes intermittent, or an entire rack drops offline. The DSRF180A 57310255-AV is an equipment frame board for ABB’s Advant OCS platform — it provides the physical mounting structure and electrical backplane interconnect that holds the rack’s controller, I/O, and communication modules together.

This board is the kind of component that sits quietly in a cabinet for 15 years and then becomes critical when it fails. The -AV suffix indicates a specific revision, and mismatching revisions can cause mechanical fit issues or backplane bus incompatibilities. If your Advant OCS rack is showing intermittent module recognition or physical seating problems, this frame board is worth inspecting. Verify the exact revision stamp on your existing board before ordering a replacement — the physical footprint and connector layout must match.

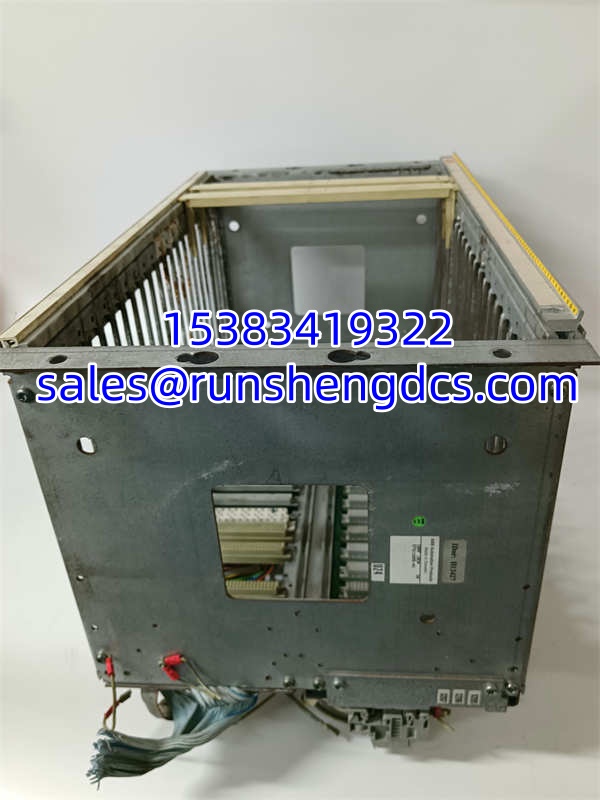

ABB DSRF180A 57310255-AV

QA/QC Transparency SOP

For surplus DSRF180A 57310255-AV units, a credible pre-shipment test sequence:

1. Intake & Origin Verification — Confirm the label reads DSRF180A with ordering code 57310255-AV. Check for ABB markings, revision stamps, and date codes. Inspect the PCB for corrosion, cracked solder joints, or damaged mounting holes.
2. Visual & Mechanical Inspection — Verify all backplane connector pins are straight and undamaged. Check that module guide rails are intact and not bent. Confirm the board slides into a compatible Advant OCS rack frame without binding or excessive play.
3. Continuity & Insulation Testing — Using a calibrated multimeter (Fluke 87V or equivalent), perform continuity checks across key backplane bus traces. Perform insulation resistance testing between power rails and signal buses per IEC 61010 practices. Confirm no short circuits between adjacent traces.
4. Live Functional Testing — Install the board in a powered Advant OCS rack. Verify that at least one known-good controller module and one I/O module are recognized by the rack and communicate without errors. Confirm stable backplane voltage delivery to seated modules.
5. Final QC & Anti-Static Packaging — Document all test results. Package in ESD-safe bag with rigid foam protection for connector faces. Include a test report covering continuity, insulation resistance, and live rack recognition results.

Field Engineer Gotchas

Gotcha #1: Revision mismatch causing mechanical fit failures.
The -AV suffix matters. Different revisions of the DSRF180A may have slightly different mounting hole positions, connector orientations, or backplane trace layouts. I’ve seen a plant order a DSRF180A without checking the suffix, and the replacement board physically didn’t align with the rack standoffs. Always pull the old board and photograph the label before ordering.

Gotcha #2: Confusing frame board failure with module failure.
When a module won’t initialize in the rack, the first instinct is to blame the module. But if multiple different modules fail in the same slot, or if modules work fine in other racks but not this one, the frame board backplane traces are the likely culprit. Swap modules between racks to isolate whether the fault follows the module or stays with the rack.

Gotcha #3: Origin confusion across supplier listings.
Different surplus suppliers list this part with different country-of-origin markings (Switzerland, US). This may reflect different manufacturing sites or different production runs. The electrical and mechanical specs should be identical if the part number matches, but verify physical markings against your installed unit to avoid surprises.

Gotcha #4: ESD damage during rack work.
This board carries backplane bus traces that are sensitive to electrostatic discharge. When removing or installing the frame board, disconnect all power, ground yourself with an ESD wrist strap, and handle the board by its edges only. A static hit to a backplane trace can create an intermittent fault that won’t show up on a bench test but will cause headaches in production.

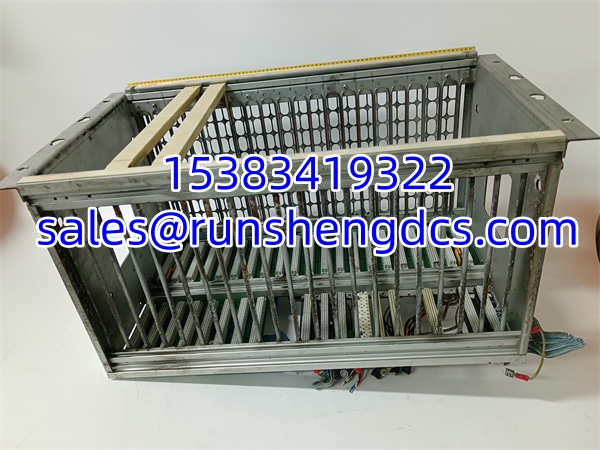

ABB DSRF180A 57310255-AV

Application Scenarios

• Legacy ABB Advant OCS in oil & gas production facilities — Maintaining rack structural integrity for controller and I/O modules managing wellhead separation, gas compression, and produced water treatment systems.
• Pulp & paper mill DCS infrastructure — Supporting the physical backbone of Advant OCS racks controlling digester cooking, brown stock washing, and recovery boiler systems where rack reliability directly impacts production uptime.
• Power plant auxiliary control systems — Keeping Advant OCS frame boards operational in BOP (balance of plant) cabinets managing cooling water circulation, lube oil systems, and auxiliary steam distribution.

Case Study (Anonymized): A power generation facility running an ABB Advant OCS system experienced intermittent controller resets on one rack. The operations team replaced the controller module twice with no improvement. A third investigation traced the fault to cracked solder joints on the frame board’s backplane power bus — thermal cycling over years had fatigued the connections. The frame board was replaced with a surplus 57310255-AV unit, and the resets stopped immediately. Lesson: when modules check out fine, look at the board they plug into.

FAQ

What does the -AV suffix mean on this part number?
The -AV suffix indicates a specific hardware revision of the frame board. Different suffixes may reflect different production runs, minor design changes, or regional manufacturing variations. Match the full part number including suffix to your installed unit to ensure mechanical and electrical compatibility.

Is this the same as a backplane?
Functionally similar but not identical terminology. The is described as an “equipment frame board” — it provides both the physical mounting structure (frame) and the electrical interconnect (backplane traces) for modules in an Advant OCS rack. It’s the board that modules plug into.

Not guaranteed. Different suffixes may have different mounting hole patterns, connector layouts, or backplane trace configurations. It may physically fit but fail to provide correct bus connectivity. Match the full part number when possible, or verify mechanical fit and pinout compatibility before deploying.

Is this module still manufactured by ABB?
The 57310255-AV circulates primarily through surplus and aftermarket channels as of available data. This suggests it is in a mature or end-of-life phase. Contact ABB directly with the full part number to confirm current production status and any recommended successor parts.

How do I know if my frame board is the problem vs. a module?
If a single module fails in one rack but works fine in another rack, the module is likely at fault. If multiple different modules fail in the same rack slot, or if modules show intermittent recognition across multiple slots in the same rack, suspect the frame board. Physical inspection for cracked solder joints, corrosion, or bent guide rails can confirm the diagnosis.

What rack configurations is this board compatible with?
This board is designed for ABB Advant OCS equipment frames. Verify compatibility with your specific rack model and configuration by cross-referencing the ABB Advant OCS hardware documentation. The physical dimensions (approx. 160 × 160 × 120 mm) and mounting pattern must match your existing installation.
