Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | DSAI146 3BSE007949R1 |
| Manufacturer | ABB |
| Product Type | Analog Input Unit (Pt100) |
| Platform | ABB Advant OCS |
| Channel Count | 31 analog input channels |
| Sensor Type | Pt100 resistance temperature detectors |
| Compatible Controllers | AC450, AC460 (Advant OCS family) |
| Mounting | Advant OCS rack module |
| Typical Applications | Temperature monitoring in process control systems |
| Availability | Surplus, refurbished, NOS |
Product Introduction
Temperature points in legacy DCS racks are easy to overlook until a single bad channel starts corrupting a control loop or a safety interlock. The DSAI146 is one of those specialized modules that exists to keep Pt100 measurements clean and available to the controller.

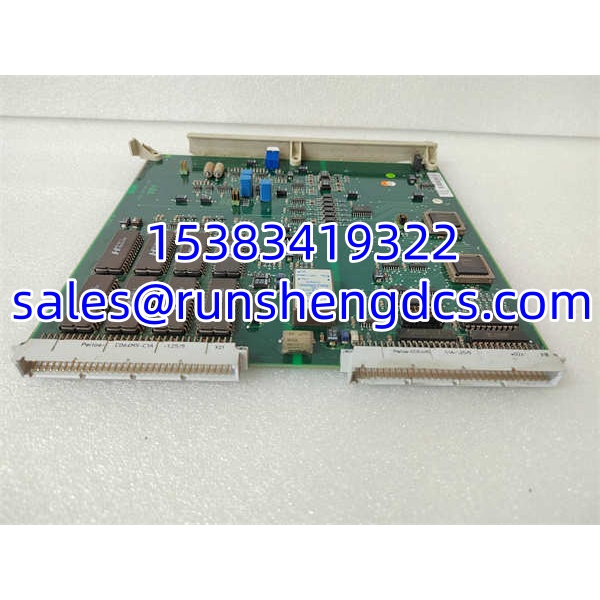

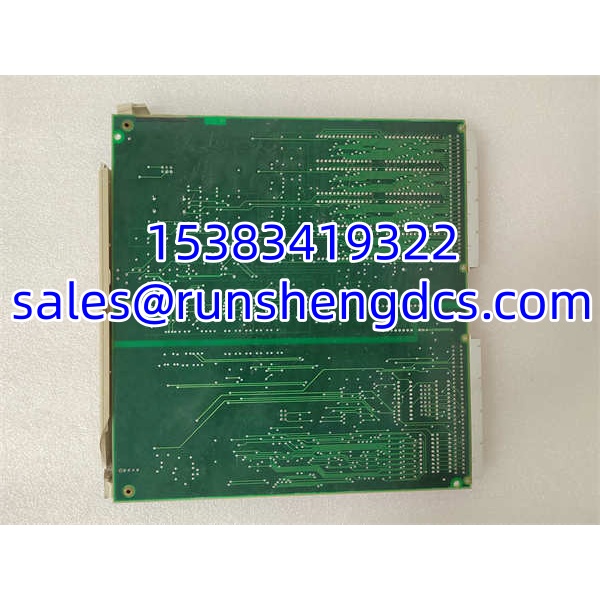

The ABB DSAI146 3BSE007949R1 is a 31-channel analog input unit for Pt100 temperature sensors, designed for the Advant OCS architecture and compatible with AC450 and AC460 controllers. It is not a digital I/O card, not a communication module, and not an AC 800M component. Its job is narrow but critical: convert resistance signals from multiple Pt100 sensors into digital temperature values that the controller can use for monitoring, regulation, and alarm handling. Because it handles 31 channels in a single module, it is commonly found in applications where temperature profiling matters — dryers, reactors, heat exchangers, and turbine auxiliaries.
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm full part number DSAI146 3BSE007949R1, ABB labeling, serial/batch markings, and physical condition. Verify it is the DSAI146 analog input unit, not a DSDI digital module or an AC 800M I/O card.
- Live Functional Testing: Install in a compatible Advant OCS test rack. Verify module power-up, controller recognition, and channel readback using known Pt100 resistances or a precision resistance simulator.
- Electrical Parameter Tests: Check backplane connector integrity, insulation, and supply rails. Inspect for corrosion, cracked solder joints, or heat damage typical of legacy boards.
- Channel Verification: Spot-test multiple channels across the module, not just one. A partially failed DSAI146 may read correctly on some channels while drifting or failing on others.
- Final QC & Anti-Static Packaging: Label part number, revision, and test status. Pack in anti-static material. If sold as refurbished, document which channels were tested and whether full 31-channel verification was possible.
Field Engineer Gotchas
- The “DSAI” prefix indicates analog input; “DSDI” indicates digital input. Some third-party listings mix these designations. Always verify the full order number 3BSE007949R1 and the module label.
- Not an AC 800M module. The belongs to the Advant OCS family. It will not fit or function in an AC 800M or System 800xA S800 I/O rack.
- Pt100 wiring errors produce believable but wrong readings. A loose terminal, incorrect three-wire compensation, or swapped leads can produce a temperature that looks plausible but is offset. Verify wiring against the manual before blaming the module.
- Partial channel failure is common on legacy analog cards. A module may pass a quick single-channel test but still have degraded channels. If replacing a suspected faulty unit, test multiple channels under load.
- Surplus condition is not the same as tested-functional. “New in box” legacy stock can still suffer from capacitor aging, connector oxidation, or missing calibration data. Ask for test records, not just photos of the label.

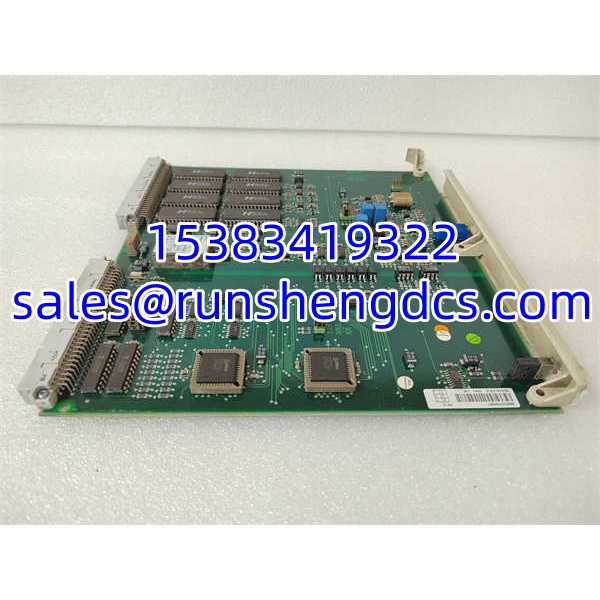

ABB DSDI146 3BSE007949R1
Application Scenarios
- Advant OCS temperature monitoring racks: Consolidates multiple Pt100 inputs into a single module for AC450/AC460 controllers.
- Power plant auxiliary systems: Monitors bearing temperatures, lube oil temperatures, and heat exchanger outlets on legacy ABB racks.
- Pulp and paper dryer sections: Tracks temperature profiles across multiple rollers where consistent heat distribution is critical.
- DCS migration projects: Kept as a spare during phased replacements so legacy temperature loops remain operational until cutover.
FAQ
It is a 31-channel analog input unit for Pt100 temperature sensors, used in the Advant OCS architecture with AC450 and AC460 controllers.
Is this the same as a DSDI146?
No. is an analog input module. DSDI146 would be a digital input module. The prefixes are different and the functions are not interchangeable.
Can I use this in an AC 800M or System 800xA rack?
No. The belongs to the Advant OCS family. AC 800M and System 800xA use different I/O architectures.
What sensors does it accept?
Pt100 resistance temperature detectors. Verify the wiring configuration (two-wire, three-wire, or four-wire) against the original manual.
Is this module still in production?
It is generally considered legacy / discontinued. Most available units are surplus, refurbished, or new-old-stock.
Verify the exact part number, inspect connector condition, and request multi-channel test records. A single-channel pass does not guarantee all 31 channels are healthy.
Can I replace it with a different Advant OCS analog module?
Not automatically. Channel count, sensor type, and configuration must match. Substitution requires review of the Advant OCS hardware configuration and I/O assignment.
