Description
Key Technical Specifications
- Product Type: Modbus TCP Communication Interface
- Order Number: 3BSE043660R1
- Protocol Supported: Modbus TCP (Client/Server)
- Controller Compatibility: AC 800M / System 800xA DCS
- Power Supply: 24 V DC via CEX-Bus (no external power needed)
- Installation: DIN-rail mount or standard AC 800M rack
- Hot Swap Support: Yes, supports online replacement
- Application: Data exchange with external PLCs, HMIs, and SCADA systems
- Network Topology: Star, Daisy-chain, or Ring (via external switches)
- Data Mapping: Maps Modbus registers to IEC 61131-3 application variables
Product Introduction
Plant-wide integration falls apart when legacy Modbus devices can’t talk to the DCS. The CI867K01 (3BSE043660R1) is the Ethernet bridge that solves this. It plugs directly into the AC 800M controller’s CEX-Bus and acts as a full Modbus TCP client or server, allowing seamless data exchange with third-party PLCs, HMIs, and SCADA systems.
You need this module because it eliminates the need for external protocol gateways. Powered entirely by the CEX-Bus, it requires no extra wiring or external 24 V supplies. It also supports hot-swapping, meaning you can replace a failed unit without shutting down the controller. Bottom line: it is the most straightforward way to integrate Modbus TCP devices into your ABB DCS.
Troubleshooting Quick Reference
- Module Not Communicating: 80% chance it’s an IP configuration issue. Verify the module’s IP address, subnet mask, and gateway in the hardware configuration. Ping the module from a laptop on the same VLAN.
- Intermittent Data Drops: Check the Ethernet cable and switch port. Bad crimps or duplex mismatches cause packet loss. Replace the cable and verify auto-negotiation settings.
- Modbus Exception Responses: Inspect the register mapping. Incorrect start addresses or data types cause the external device to reject requests. Cross-reference the slave device’s manual with your IEC 61131-3 mapping table.
- Module Not Powered: Measure the CEX-Bus voltage at the base. If the 24 V rail is low, the module won’t boot. Check the power supply unit’s load calculation—this module draws typical 100-120 mA.

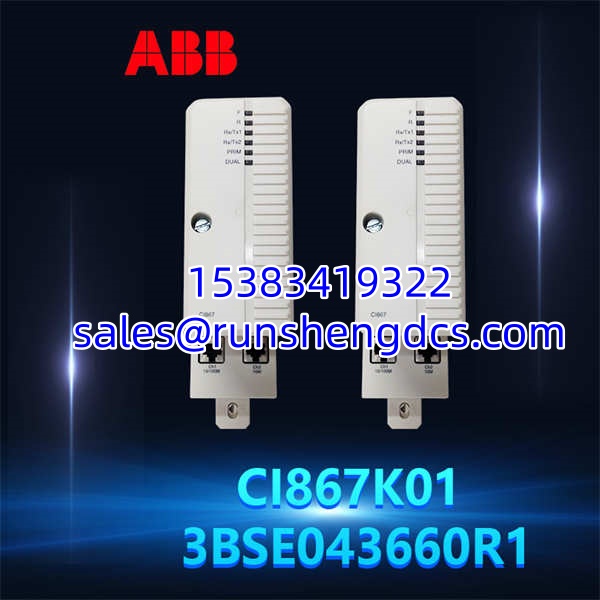

ABB-CI867K01-3BSE043660R1
Application Scenarios & Pain Points
- Brownfield Plant Upgrades: Legacy Modbus devices need to integrate with new AC 800M DCS. This module eliminates costly protocol converter boxes and reduces wiring complexity.
- Multi-Vendor Control Rooms: Third-party PLCs and safety systems need to share data with the ABB DCS. Modbus TCP provides a universal, vendor-neutral communication standard.
- Remote Monitoring Stations: Distributed substations and pump stations require reliable data polling. The CI867K01 handles high-speed Ethernet polling without clogging the controller’s CEX-Bus.
Compatible Replacement Models
- ✅ Drop-in Replacement: CI867K01 / 3BSE043660R1 (Exact match. Verify the TP867 base is included. No configuration changes needed if replacing identical hardware.)
- ⚠️ Software Compatible: CI867AK01 / 3BSE092689R1 (Newer generation Modbus TCP module with enhanced diagnostics. Requires hardware configuration update in Control Builder. Budget 2-4 hours for re-download and testing.)
- ❌ Hardware Incompatible: CI854AK01 (PROFIBUS-DP interface, completely different protocol and physical port. Do not attempt as a Modbus TCP replacement.)
