Description
Key Technical Specifications
| Parameter | Specification | Field Note |
|---|---|---|
| Part Number | 3BSE041882R1 | Core ABB ordering code |
| Protocol | PROFIBUS DP-V1 | Supports acyclic & cyclic data |
| Redundancy | Module & Line | Requires TU846 Base Unit |
| Max I/O Modules | 24 per FCI | Limited by power & scan time |
| Supply Voltage | 24 VDC (190 mA) | Via ModuleBus or external |
| Hot Swap | Yes | Online replacement supported |
| HART Support | Pass-through | For smart field instruments |
| Base Unit | TU846 (Redundant) | Do not use TU847 for redundancy |
| Dimensions | 54 x 119 x 96 mm | Standard S800 footprint |
| Weight | 0.2 kg | Lightweight module |
| Temp Range | 0°C to +55°C | Vertical install max 40°C |
| Certifications | CE, UL, ATEX Zone 2 | Marine class approvals included |
Product Introduction

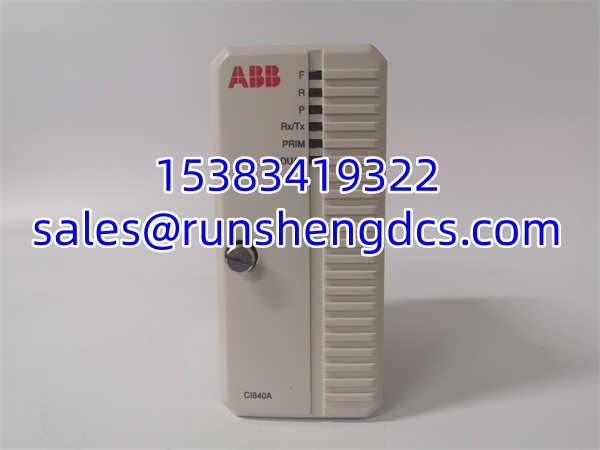

Redundancy in S800 I/O isn’t just about the CPU; it’s about the fieldbus link, and the ABB CI840A 3BSE041882R1 is the workhorse that makes that happen. This isn’t a generic Profibus card; it’s a dedicated Fieldbus Communication Interface (FCI) designed to sit on a TU846 base unit, providing dual-channel redundancy for both the communication line and the module itself. If you’re running critical process control where a single comm failure means a trip, this is the standard solution.
You spec the ABB CI840A 3BSE041882R1 when you need to keep the plant running during a hardware fault. It supports hot-swapping, meaning you can pull a failed FCI and slide in a spare without powering down the backplane or stopping the process. With a 190mA power draw and support for up to 24 I/O modules, it handles dense I/O racks efficiently. Just remember: this module is useless without the correct base. ABB CI840A 3BSE041882R1 requires a TU846 for redundancy; putting it on a TU847 will give you zero fault tolerance.
QA/QC Transparency SOP
- Intake & Origin Verification: We verify the ABB CI840A 3BSE041882R1 serial number and production date code to identify known revision issues, specifically checking for early-batch ModuleBus connector wear.
- Live Functional Testing: Units are mounted on a verified TU846 base with dual Profibus masters. We force a line break and module removal to confirm the ABB CI840A 3BSE041882R1 executes failover within spec without dropping I/O updates.
- Electrical Parameter Tests: 24V logic rails and ModuleBus power inputs are checked with a Fluke 87V for ripple and voltage drop. We verify the 190mA current draw is within tolerance under full I/O load.
- Firmware/Config Verification: Internal DIP switches and hardware revision jumpers are documented. We verify the ABB CI840A 3BSE041882R1 firmware matches the target AC800M controller version to prevent “Station Not Responding” errors.
- Final QC & Anti-Static Packaging: Connectors are inspected for pin damage, conformal coating is checked for moisture, and the is sealed in static-shielding bags with desiccant.
Field Engineer Gotchas
- Wrong Base Unit: The is redundant only on a TU846. Risk: Installing on a TU847 gives you single-channel operation with no module redundancy. Fix: Check the base unit part number (3BSE022460R1 for ) before ordering. Don’t assume.
- ModuleBus Length: The internal ModuleBus has a hard limit. Risk: Exceeding 2.5m total length (including extensions) causes intermittent comm faults. Fix: Measure the physical rack length. If you’re close to the limit, add a repeater or shorten the bus.
- Power Budget: Each draws 190mA. Risk: Overloading the 24V supply when stacking multiple FCIs or high-power I/O. Fix: Calculate total backplane current. If you’re near the PSU limit, add an auxiliary 24V supply to the .
- Hot-Swap Timing: “Hot-swap” doesn’t mean “instant.” Risk: Pulling the too fast during failover can cause a brief I/O freeze. Fix: Wait for the “Redundancy Active” LED to stabilize before pulling the faulty unit. Give the system 2-3 seconds to settle.

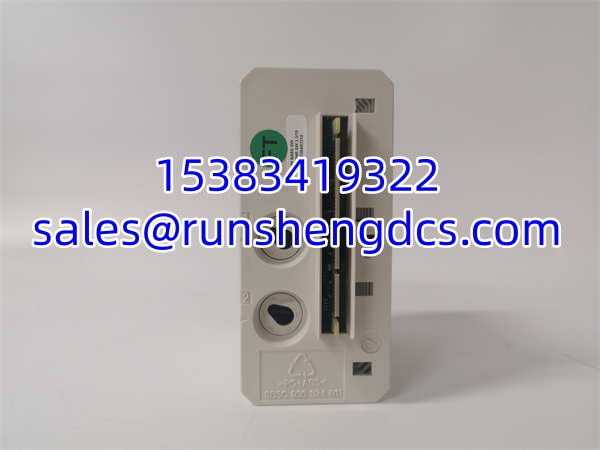

ABB CI840A 3BSE041882R1
Application Scenarios
- Critical Process Control: Oil & Gas separators or reactors where a Profibus break means a safety trip. The provides the dual-path redundancy required by SIL-2/3 architectures.
- High-Density I/O Racks: Packaging lines with 20+ VFDs and valves. The handles the 24-module limit efficiently, but watch the scan time.
- Retrofit Redundancy: Upgrading a non-redundant S800 rack. The + swap is the standard path, but verify your existing I/O modules are compatible (e.g., no DI825/DI830 on this FCI).
FAQ
Can I use the 3BSE041882R1 on a TU847 base?
No. The TU847 is for non-redundant configurations. For true module and line redundancy, you must use the (3BSE022460R1). The will physically fit, but you’ll lose the redundancy function.
What I/O modules are NOT supported?
The does not support DI825, DI830, DI831, DI880, DI885, DO880, AI880, or SOE on DI840. Check your BOM before ordering. Mixing these will cause configuration errors.
Does this support HART pass-through?
Yes. The supports HART transparent pass-through for smart instruments. You can access HART data via the Profibus master without additional gateways.
Theoretically 24, but practically? It depends on power and scan time. If you’re running 24 analog modules with HART, you’ll likely hit the scan time limit before the module count. Keep it under 20 for safety.
Is the 3BSE041882R1 compatible with AC800M High?
Yes, but verify the firmware. Older units may need a firmware update to work with newer AC800M High controllers. Check the ABB compatibility matrix or ask us for a pre-verified unit.
Yes, that’s the whole point. The is designed for online replacement. Just ensure the redundant partner is active and healthy before pulling the faulty unit.
The “A” suffix indicates a minor hardware revision, typically with improved ESD protection and updated component sourcing. Functionally identical, but always replace with another “A” version to avoid firmware mismatches.
