Description
Key Technical Specifications
- Product Type: Analog Signal Input / Control Board
- Order Number: GJR2391500R1210 / 81EU01E-E
- Functional Units: 5 independent channels per module
- Resolution: 12-bit digital A/D conversion
- Signal Types: 2-wire (4-20 mA) and 4-wire (0/4-20 mA)
- Sensor Power: Internal short-circuit protected supply
- Data Storage: Parameters stored in EEPROM (retained on power loss)
- Signal Monitoring: Built-in upper/lower limit monitoring (default 118.75% / -6.25%)
- Bus Interface: Standard PROCONTROL station bus
- Protection: Short-circuit protection and interference alarms (ST)
Product Introduction
DCS systems don’t just fail; they drift silently when I/O modules degrade. The 81EU01E-E (GJR2391500R1210) is the precision analog input board sitting inside ABB’s PROCONTROL stations. It takes raw 4-20 mA signals from field sensors and converts them into reliable 12-bit digital data for the master controller.
You need this board because it actively validates its own inputs. Each of the 5 functional units has built-in limit monitoring that flags out-of-range signals instantly. Parameters are safely stored in EEPROM, so a power glitch won’t wipe your calibration. Whether you’re replacing a failed transmitter input or expanding your I/O capacity, this module guarantees accurate, noise-free signal processing. Bottom line: it is the critical link between your field sensors and your control logic.
Troubleshooting Quick Reference
- Module Not Responding: 80% chance it’s a backplane connection issue. Reseat the module firmly and check the PROCONTROL bus connector for bent pins.
- Erratic Analog Values: Check the sensor wiring and grounding. Unshielded cables in high-noise environments corrupt the 12-bit A/D conversion. Verify shield is grounded at one end only.
- Interference Alarm (ST) Active: The module’s internal monitoring detected an out-of-range signal. Check if the field transmitter is wired correctly (2-wire vs 4-wire) and if the sensor power supply is healthy.
- Parameters Lost After Power Cycle: The EEPROM may be corrupted. Re-download the configuration table from the master controller and verify the DIP switch settings match the original hardware.

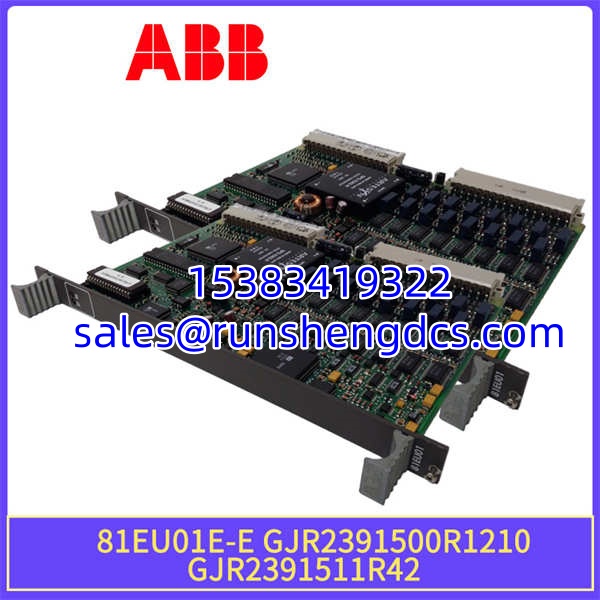

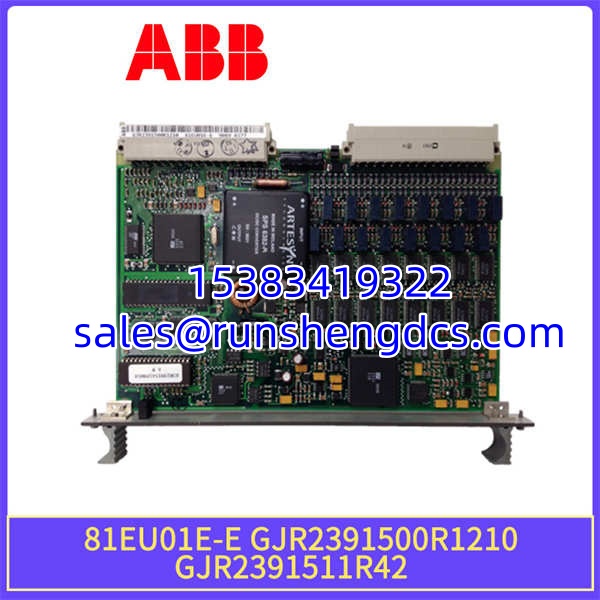

ABB-81EU01E-E-GJR2391500R1210-GJR2391511R42
Application Scenarios & Pain Points
- Chemical Processing Plants: Corrosive environments and EMI from variable frequency drives corrupt analog signals. This module’s built-in filtering and bus isolation keep sensor data clean.
- Power Generation Facilities: Critical temperature and pressure transmitters require zero drift. The 12-bit resolution and internal reference voltage monitoring ensure long-term accuracy.
- Water & Wastewater Treatment: Remote pump stations face voltage sags and power interruptions. EEPROM parameter retention prevents costly recalibration after brownouts.
Compatible Replacement Models
- ✅ Drop-in Replacement: 81EU01E-E / GJR2391500R1210 (Exact match. Verify the GJR2391511R42 suffix matches your specific hardware revision. No rewiring needed.)
- ⚠️ Software Compatible: 81EA01-E/R1111 / 81EA01-E/R1112 (Older generation modules. May require configuration table updates and parameter migration. Budget 2-4 hours for reprogramming and loop checks.)
- ❌ Hardware Incompatible: 81EA01-E/R1010 (Lacks correction and raw value output features. Different internal architecture. Do not attempt as a direct swap without full system reconfiguration.)
