ABB 5SHY6545L0001 | 4.5 kV, 6500 A IGCT Power Device, Press-Pack

Description

Key Technical Specifications

Product Introduction

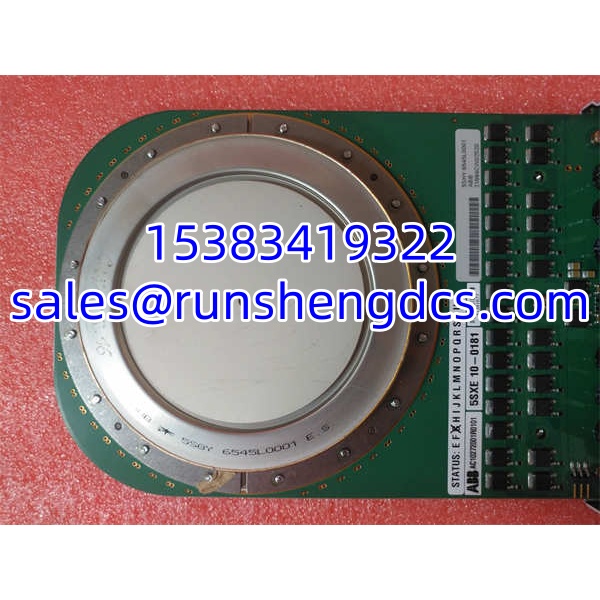

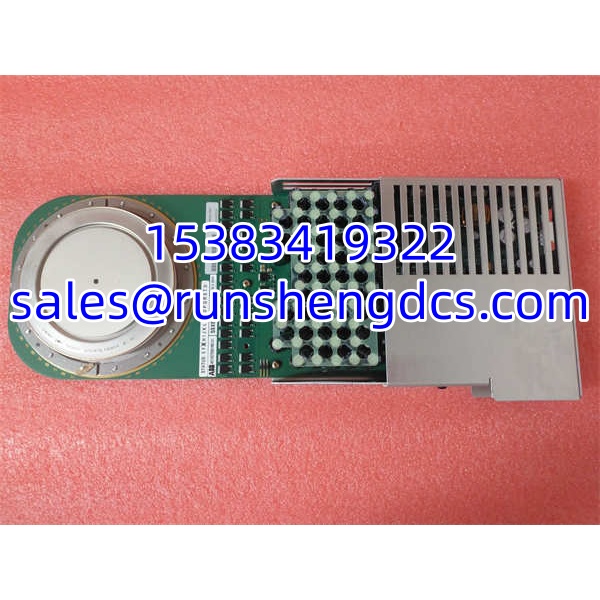

In MW-class converters, the IGCT is the workhorse that actually commutates thousands of amperes, but it cannot operate without its gate driver and gate unit. The 5SHY6545L0001 is an ABB IGCT power device rated at 4.5 kV and 6500 A, with a peak turn-off current of up to 7000 A. It uses a press-pack package with ceramic insulation and integrated gate-commutation structure, allowing fast switching with low conduction loss — a key reason IGCTs remain preferred in high-power drives and SVC applications.

The 5SXE10-0181 is the gate driver board that sits directly on or adjacent to the IGCT. It delivers the hard turn-off current pulse, controls turn-on dI/dt, and monitors gate-circuit integrity. The AC10272001R0101 is the gate unit or system interface board that receives switching commands from the converter controller — typically via fiber optics — and provides isolated power, command distribution, and fault feedback.

This three-part combination is typical in ABB ACS 6000 / ACS 8000 converters, static var compensators, and large industrial drives. Because the gate driver and gate unit are tightly matched to the IGCT type, they must be treated as a coordinated assembly. Substituting a different gate driver or gate-unit revision without OEM confirmation can cause incorrect pulse timing, failed turn-off, or device destruction.

ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181

QA/QC Transparency SOP

1. Intake & Origin Verification
   Confirm all three identifiers: 5SHY6545L0001, AC10272001R0101, and 5SXE10-0181. Photograph the IGCT nameplate, gate driver labels, gate-unit labels, fiber-optic connectors, and mechanical mounting surfaces.
2. Visual & Mechanical Inspection
   Inspect the IGCT press-pack housing for cracks, coolant leaks, corrosion, or damaged gate contacts. Check the 5SXE10-0181 gate driver PCB for swollen capacitors, burnt components, or damaged connectors. Verify the AC10272001R0101 gate-unit connectors and fiber ports are intact.
3. Gate-Unit Power-Up Test
   Apply the specified auxiliary supply to the gate unit. Verify normal LED status, supply rails, and absence of fault indications. Do not apply main voltage at this stage.
4. Fiber-Optic & Driver Verification
   Connect a compatible fiber-optic test source or valve controller simulator. Verify command reception by the AC10272001R0101, correct pulse delivery by the 5SXE10-0181 driver, and proper fault feedback transmission. Confirm simulated overcurrent/overtemperature faults are reported correctly.
5. Final QC & Packaging
   Record all revision codes, firmware/parameter sets if readable, and test results. Protect fiber-optic connectors with dust caps. Pack the IGCT, gate driver, and gate unit with anti-static and mechanical protection.

Field Engineer Gotchas

• Three codes, three different functions
  Risk: Treating 5SHY6545L0001, AC10272001R0101, and 5SXE10-0181 as interchangeable spares.
  Solution: 5SHY6545L0001 is the IGCT device; 5SXE10-0181 is the gate driver board; is the gate unit/system interface board.
  Warning: Ordering only the IGCT without the correct gate driver and gate unit may leave you unable to commission the converter.
• Gate driver revision mismatch
  Risk: Substituting 5SXE10-0181 with another 5SXE revision without OEM approval.
  Solution: Match the gate driver revision to the IGCT type and the gate unit. Different 5SXE revisions may have different pulse shapes, protection thresholds, or connector layouts.
  Warning: An incorrect gate driver can cause missed turn-off pulses, leading to catastrophic IGCT failure.
• Gate unit vs. gate driver confusion
  Risk: Confusing (gate unit/system interface) with 5SXE10-0181 (gate driver board).
  Solution: The gate driver sits close to the IGCT and handles pulse generation. The gate unit interfaces to the converter controller and distributes commands via fiber optics.
  Warning: Installing the wrong board in the wrong position can cause communication loss, false faults, or no gate output at all.
• Fiber-optic contamination
  Risk: Dust or oil on fiber-optic connectors causes intermittent command loss.
  Solution: Inspect and clean fiber connectors with proper tools. Verify optical power levels if test equipment is available.
  Warning: Intermittent fiber faults can look like random converter trips. Do not replace the IGCT before ruling out fiber-optic issues.
• Cooling interface failure
  Risk: The 5SHY6545L0001 press-pack depends on proper thermal contact and coolant flow. Poor mounting or degraded thermal interface causes hotspot failure.
  Solution: Verify heatsink flatness, torque sequence, coolant flow, and temperature sensors before energizing.
  Warning: An IGCT can pass a gate test but fail under load if the thermal interface is marginal.
• Gate-supply quality
  Risk: Noisy or unstable gate-unit auxiliary supply causes false faults or missed gate pulses.
  Solution: Measure the auxiliary supply under load. Check for ripple, ground loops, and isolation integrity.
  Warning: Gate-unit faults after replacement are often power-supply issues, not semiconductor failures.

ABB 5SHY6545L0001 AC10272001R0101 5SXE10-0181

Application Scenarios

• ACS 6000 / ACS 8000 drive IGCT replacement
  During a maintenance outage, a failed IGCT in an ABB medium-voltage drive is replaced. The 5SHY6545L0001 IGCT, 5SXE10-0181 gate driver, and gate unit are verified as a matched set before installation.
• SVC/STATCOM valve maintenance
  A static var compensator reports repeated valve faults. Investigation identifies a degraded gate driver or gate-unit optical receiver. The matched assembly is replaced after confirming controller compatibility.
• Large motor drive commissioning
  A mill drive commissioning team verifies gate-unit fault feedback, turn-on/turn-off timing, and cooling performance before full-load testing. Gate parameters are compared against the OEM configuration backup.
• Legacy converter spare provisioning
  A plant running an older ABB IGCT-based converter stocks a verified spare assembly. The gate driver revision, gate-unit revision, and mechanical interface are documented to avoid mismatch during emergency replacement.

FAQ

What do these three part numbers mean?
5SHY6545L0001 is the IGCT power device (4.5 kV, 6500 A). 5SXE10-0181 is the IGCT gate driver board. is the gate unit or system interface board that communicates with the converter controller.

Is this a PLC or DCS module?
No. This is a high-power IGCT semiconductor assembly with gate driver and gate unit, used in medium-voltage converters and drives. It is not a PLC/DCS I/O card.

Can I substitute a different 5SXE gate driver?
Not without OEM confirmation. Different 5SXE revisions may have different pulse shapes, protection thresholds, or connector layouts. Match the gate driver to the IGCT type and gate unit.

What cooling is required?
ABB IGCT press-pack devices typically require water cooling or a specified forced-air heatsink. The exact cooling plate, flow rate, and torque values must be taken from the ABB datasheet or installation manual.

How do I verify the gate driver and gate unit are working?
Apply the correct auxiliary supply, check LED/status indicators, verify fiber-optic command reception, and confirm fault feedback. Do not apply main voltage until the gate chain, cooling, and controller interface are verified.

Is this still supported by ABB?
Many ABB IGCT assemblies are legacy products. Availability is mainly through surplus and refurbished channels. Confirm current OEM support, firmware, and spare-part availability directly with ABB or an authorized service provider.
