Description
Key Technical Specifications
- Material Code: AC10272001R0101
- Semiconductor Type: Non-Symmetrical IGCT
- Mounting Force Requirement: 40 kN
- Optimized Frequency Range: Mid-frequency (< 1 kHz)
- Gate Drive Power: Requires negative bias for full blocking capability
- Startup Delay: Up to 5 seconds for gate unit readiness
- Glitch Filter: Ignores optical input pulses < 400 ns
- Operating Temperature: 0 °C to +60 °C
- Packaging: Free-floating press-pack in sealed ceramic housing
- Protection Features: Over-current, Over-voltage, Over-temperature
Product Introduction

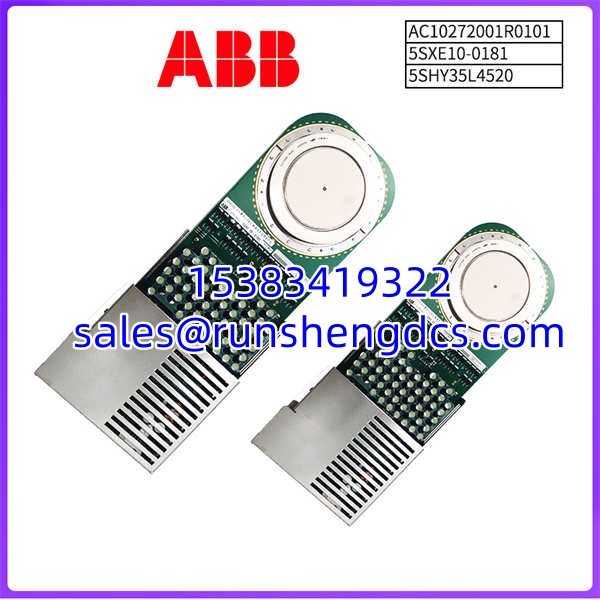

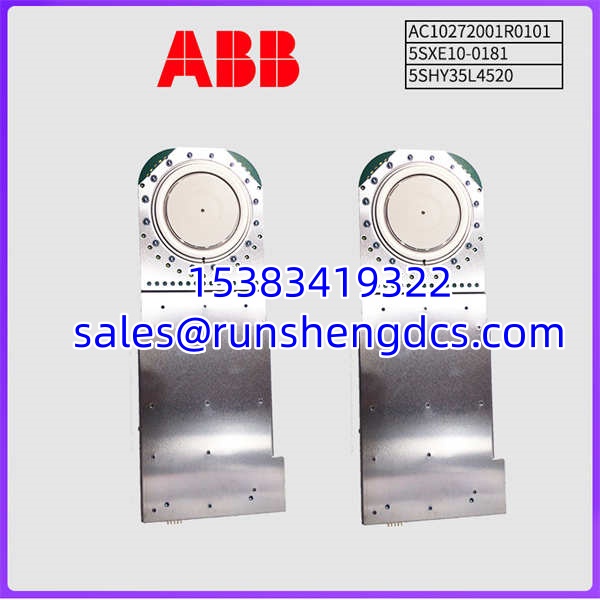

When you are pushing massive currents through a high-power converter, standard IGBTs simply melt. The ABB 5SHY35L4520 (5SXE10-0181 / AC10272001R0101) is a non-symmetrical IGCT module built to handle extreme power densities. It integrates the power semiconductor with a powerful gate unit, designed specifically for heavy-duty applications like industrial motor drives, STATCOMs, and high-power converters where reliability is non-negotiable.
Why do engineers spec this exact IGCT? Because it is engineered to survive brutal switching environments. It features a glitch filter that ignores noise pulses under 400 ns, preventing false triggers. It requires a strict 40 kN press-pack force and a negative gate bias to maintain full blocking capability. With over 250,000 units proven in heavy field operations, it provides deterministic switching for medium-frequency applications (< 1 kHz) without the catastrophic failures seen in lesser semiconductors.
Troubleshooting Quick Reference
- Gate Unit Failure on Startup | Attempted switching before power-up sequence | 80% chance it’s operational error | Wait minimum 5 seconds for gate unit readiness | Always apply gate power before main voltage
- Loss of Blocking Capability | Missing negative gate bias | 70% chance it’s drive circuit issue | Verify negative bias voltage on gate terminals | Check gate drive power supply integrity
- False Triggering / Misfire | EMI coupling into optical gate signal | 60% chance it’s noise interference | Inspect optical fiber routing and shielding | Verify glitch filter is functioning (<400 ns rejection)
- Thermal Runaway / Over-temp | Insufficient press-pack force or cooling | 50% chance it’s mechanical/thermal | Measure actual press-pack force (must be 40 kN) | Check liquid/air cooling flow rate and thermal paste
ABB-AC10272001R0101-5SXE10-0181-5SHY35L4520
Application Scenarios & Pain Points
- Industrial Motor Drives: High-inertia loads demand precise mid-frequency switching; a single IGCT failure during a commutation cycle can destroy the entire drive stack.
- STATCOM / FACTS Systems: Grid reactive power compensation requires flawless high-frequency switching to prevent voltage collapse during transient faults.
- High-Power Converters: Traction and marine propulsion systems face constant thermal cycling and vibration, demanding press-pack modules that won’t mechanically fatigue.
Compatible Replacement Models
- ✅ Drop-in Replacement: 5SHY35L4520 AC10272001R0101 — Exact match. Verify gate drive firmware version before installing. No mechanical rework needed.
- ⚠️ Software Compatible: 5SXE10-0181 5SHY35L4520 — Same IGCT family, verify gate drive parameter tuning. May require gate drive recalibration for optimal switching. Budget 4-6 hours for commissioning.
- ❌ Hardware Incompatible: 5SHY5045L0020 AC10272001R0101 — Different voltage/current class and gate drive requirements. Do NOT attempt to swap. Requires new gate drive unit and system re-engineering.
