Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Device Type | IGCT power module |
| Device Model | 5SHY3545L0009 |
| ABB Order Number | 3BHB013085R0001 |
| Gate Drive Unit | 3BHE009681R0101 / GVC750BE101 |
| Rated Voltage | 4500 V |
| Rated Current | 3500 A |
| Typical Application | MV drives, converters, excitation, HVDC, SVC |
| Origin | Switzerland |
| Approx. Net Weight | 3.4 kg (module only) |
| Availability | Surplus / refurbished / OEM stock |
Product Introduction

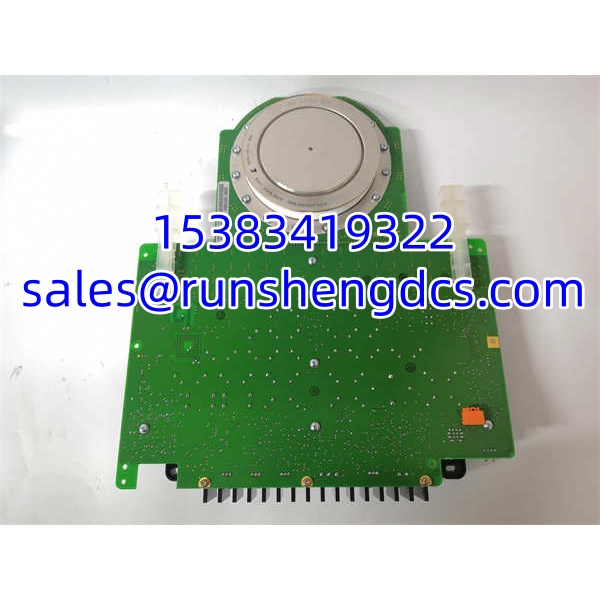

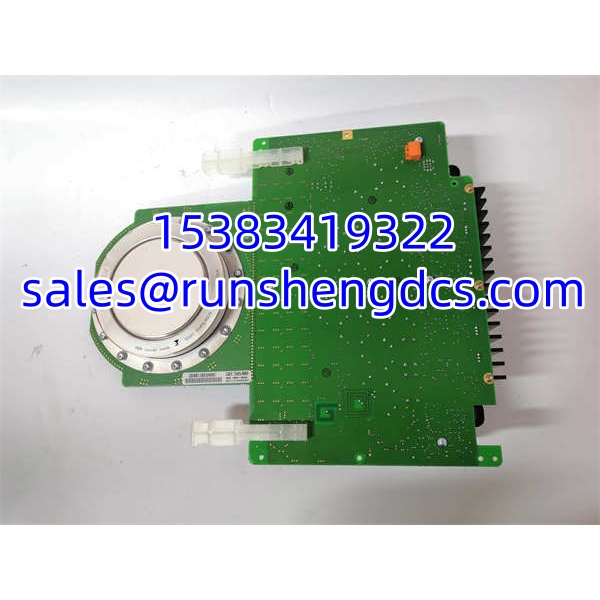

This is not a PLC module, not a fieldbus adapter, and not a standard drive spare you can drop into any ACS800/ACS880 slot. The ABB 5SHY3545L0009 / 3BHB013085R0001 is an IGCT power module, and the 3BHE009681R0101 / GVC750BE101 is its associated gate drive unit. Together they form a high-power switching pair: the IGCT handles the main current path, and the GVC750BE101 manages gate triggering, isolation, fault detection, and protection.
IGCT devices sit between thyristors and IGBTs in behavior. They can handle very high currents and voltages, switch faster than conventional thyristors, and are commonly used in medium-voltage drives, rolling mills, marine propulsion, compressors, static excitation systems, SVCs, and HVDC converters. The GVC750BE101 gate drive unit is critical because an IGCT cannot be treated like a simple thyristor; its turn-on and turn-off timing, gate current, and protection logic must be handled by a matched driver.
For field replacement, the correct cross-reference is: 5SHY3545L0009 = IGCT device, 3BHB013085R0001 = ABB order number, 3BHE009681R0101 / GVC750BE101 = gate drive unit. Do not assume these four numbers describe one single board.
QA/QC Transparency SOP

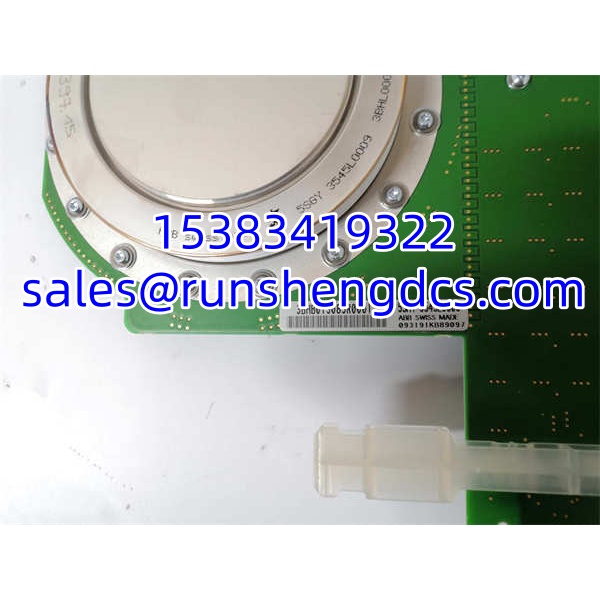

Intake & Origin Verification: Confirm 5SHY3545L0009 and 3BHB013085R0001 on the IGCT module, and 3BHE009681R0101 / GVC750BE101 on the gate drive unit. Reject units with cracked ceramic housing, damaged pressure contacts, burnt gate connectors, or missing ABB markings.
Mechanical Inspection: Check IGCT mounting surfaces, clamping hardware, heatsink contact area, and gate-drive connector pins. IGCT modules are often press-pack or stud-mounted; surface damage directly affects thermal performance.
Electrical Testing: Verify gate-drive connector continuity, isolation resistance, and driver power rails. Do not apply full DC bus voltage during bench testing. Confirm gate pulse response only on a compatible ABB test platform.
Pairing Verification: Ensure the gate drive unit revision matches the IGCT module and the host converter cabinet. A mismatched can cause false faults, failed turn-off, or catastrophic device failure.
Final QC & Packaging: Record device markings, revisions, and test results. Pack the IGCT module with mechanical protection for contacts and the gate drive unit in anti-static shielding.
Field Engineer Gotchas
Do not treat 5SHY3545L0009 as a thyristor trigger board: It is an IGCT power module. The trigger/gate function belongs to the / 3BHE009681R0101 driver.
Do not replace only the IGCT if the gate driver is suspect: A failed gate driver can destroy a new IGCT quickly. Check the , gate cabling, and driver power supply before energizing.
Clamping pressure matters: IGCT/press-pack devices depend on correct mechanical pressure. Incorrect torque or uneven clamping causes hot spots, partial conduction, and early failure.
Heatsink and cooling must be verified: These modules run in high-current stacks. Dirty heatsinks, failed fans, or degraded thermal paste will repeat the fault even with a new module.
Revision sensitivity: ABB gate drive units and IGCT modules may have revision-dependent compatibility. Match the original cabinet BOM, not just the base part number.
Safety isolation required: Medium-voltage converter cabinets store lethal energy. Verify DC bus discharge, interlock status, and lockout/tagout before removing the module.
ABB 5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101
Application Scenarios
Medium-voltage industrial drives: Used in rolling mills, large compressors, fans, pumps, and marine propulsion systems where IGCT-based converters provide high-power variable-speed control.
Excitation and power conversion: Applied in generator excitation systems, rectifiers, inverters, and static VAR compensators where precise high-current switching is required.
HVDC and heavy power electronics: Suitable for high-voltage DC transmission and large power conversion stacks where thyristor-level voltage ratings and faster switching are needed.
Case snapshot: A medium-voltage drive tripped repeatedly on a gate fault after a planned maintenance shutdown. The IGCT module appeared intact, but the gate drive unit showed intermittent gate pulse errors. Replacing both the verified ABB 5SHY3545L0009 / 3BHB013085R0001 IGCT module and the matched gate drive unit, then rechecking clamping pressure and gate cabling, restored stable converter operation.
FAQ
What is 5SHY3545L0009?
It is an ABB IGCT power module rated around 4500 V / 3500 A, used in high-power converters and drives.
What is 3BHB013085R0001?
It is the ABB order/catalog number associated with the 5SHY3545L0009 IGCT module.
What is 3BHE009681R0101 / ?
It is the gate drive unit that triggers and protects the IGCT/thyristor stack.
Can I replace only the IGCT module?
Only if the gate drive unit, gate cabling, cooling, and clamping system are confirmed healthy. Otherwise, replace or test the driver as well.
Is this compatible with ACS800/ACS880 low-voltage drives?
Not directly. This is a high-power IGCT device typically found in medium-voltage or custom converter cabinets, not standard LV ACS drive slots.
Is it still in production?
Availability is limited. Most supply comes from surplus, refurbished, or OEM stock channels. Confirm current ABB status before specifying.
