Description
Key Technical Specifications
| Parameter | Typical Value |
|---|---|
| Manufacturer | ABB |
| Part Number | 5SDF1045H0002 |
| Product Type | Fast recovery disc diode |
| Voltage Class | 4500 V (VRRM/VRSM class, verify with OEM datasheet) |
| Current Rating | Medium-to-high current press-pack class; exact IF(AV)/IF(RMS) varies by revision |
| Recovery Type | Fast recovery / soft recovery |
| Package | Press-pack disc / hockey-puck type |
| Typical Use | Freewheeling, snubber, clamp, or rectifier duty |
| Compatible Devices | GTO, IGCT, thyristor, and IGBT power stages |
| Mounting | Clamped between heat sinks with controlled force |
| Protection Class | IP20 when installed inside equipment |
| Origin | Sweden (ABB semiconductor production) |
Product Introduction
A failed disc diode inside a medium-voltage converter does not always announce itself cleanly. It can look like an IGBT trip, a snubber fault, or an intermittent overvoltage alarm until someone pulls the stack and checks the semiconductor directly. The 5SDF1045H0002 sits in that high-stress zone where reverse recovery behavior matters as much as voltage rating.
It is an ABB 5SDF-series fast recovery disc diode, built for high-voltage power electronic circuits that need controlled turn-off behavior. In practice, it is used alongside GTOs, IGCTs, thyristors, or IGBTs in MV drives, excitation systems, SVC/STATCOM equipment, and industrial rectifiers. The 4500 V class makes it a medium-voltage device, not a low-voltage PLC or small-module diode. If your converter uses press-pack semiconductors, this is the correct product family to evaluate.
QA/QC Transparency SOP
- Intake & Origin Verification: Confirm the marking reads 5SDF1045H0002. Inspect the disc surfaces for cracking, pitting, contact erosion, corona tracking, or heat discoloration.
- Visual & Mechanical Inspection: Check flatness, surface roughness, and edge integrity. Press-pack devices depend on uniform clamping; even small surface damage can cause hot spots.
- Electrical Parameter Tests: Perform forward voltage drop test, reverse leakage test, and recovery behavior check where test equipment allows. Megger or high-pot testing must follow OEM limits to avoid damaging the junction.
- Curve Tracer / Dynamic Check: Verify forward conduction and reverse blocking characteristics. For critical spares, compare against a known-good unit from the same voltage class.
- Final QC & Anti-Static Packaging: Protect both contact faces with non-abrasive covers. Bag in ESD packaging, photograph the marking side, and include test readings. Do not ship without protecting the disc surfaces.
Field Engineer Gotchas
- Wrong voltage class from third-party listings. Some sellers list this as a 450 V or low-current module. The ABB 5SDF family is a high-voltage press-pack diode series. Installing an underrated device in a MV stack is a fast route to another outage.
- Clamping force errors. Press-pack diodes do not use soldered pins. Too little force causes thermal cycling failure; too much force can crack the ceramic. Follow the OEM torque/force specification for the specific stack.
- Surface contamination. Oil, oxidation, or old thermal compound on the disc face increases contact resistance. Clean with approved solvent and inspect under good light before reassembly.
- Recovery mismatch. Replacing a fast recovery diode with a slower type can raise switching losses, cause voltage spikes, or trigger snubber faults. Match recovery characteristics, not just voltage rating.
- Surplus “new” claims. A device can look new but have been stored in humidity for years. Check for corrosion, edge cracks, and nameplate clarity before committing it to a live converter.

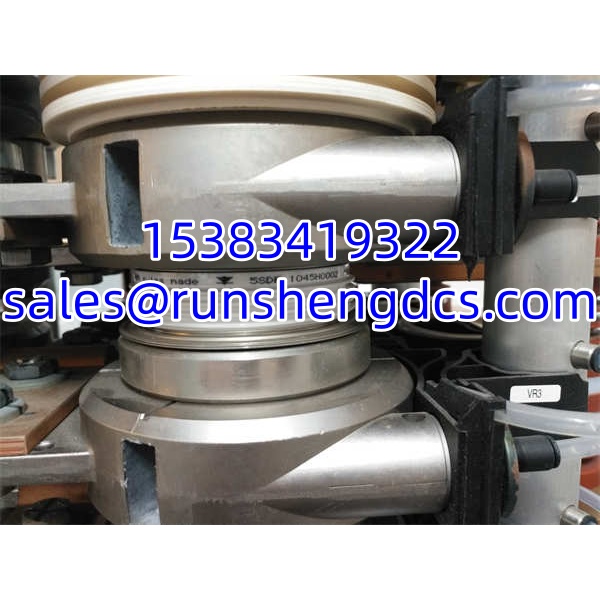

ABB 5SDF1045H0002
Application Scenarios
- MV drive inverter stack maintenance: A converter reports repeated desaturation faults on one phase. The IGBTs test acceptable, but one disc diode shows elevated leakage. Replacing the 5SDF1045H0002 and re-torquing the stack clears the fault.
- Excitation system snubber circuit: A generator excitation bridge experiences transient overvoltage trips. One clamp diode has degraded reverse recovery performance. Swapping the disc diode restores controlled voltage clamping.
- SVC/STATCOM refurbishment: During a planned outage, aged press-pack diodes are replaced. The replacement 5SDF1045H0002 units must match the original voltage class, recovery type, and mechanical thickness.
- Industrial rectifier overhaul: A high-current rectifier shows uneven current sharing. One diode branch has higher forward voltage drop due to contact degradation. Replacing the diode and reseating the clamp restores balance.
FAQ
Is 5SDF1045H0002 a PLC or I/O module?
No. It is a high-voltage press-pack fast recovery diode, not a PLC, DCS card, or small power module.
What voltage class is it?
The 5SDF1045H0002 belongs to the 4500 V-class disc diode family. Treat any listing showing 450 V or low-current module specs as unverified.
Can I substitute another 5SDF part number?
Only if voltage class, recovery characteristics, mechanical dimensions, and OEM approval match. Press-pack devices are not generic drop-in parts.
Does it need a heat sink?
Yes. It is a clamped press-pack device that must be mounted between heat sinks with controlled force and proper thermal interface material.
Is it still produced by ABB?
Availability depends on current ABB semiconductor product status. In the field, it is commonly encountered as surplus or legacy spare stock.
How do I verify authenticity?
Check the disc marking, mechanical dimensions, surface finish, and electrical test results. Cross-reference with the ABB datasheet and the converter OEM spare parts list.
