Description
Key Technical Specifications
- Model Number: PSCDM024DCBAN-A5E0024837106
- Manufacturer: Yokogawa Electric
- Series: CENTUM / μXL / CS Series
- Module Type: CDM (Control Data Module)
- System Role: Field Control Station / Remote I/O Interface
- Communication: Yokogawa V-net / Field Network
- Power Requirement: 24 VDC
- Mounting: DIN Rail / Panel Mount
- Status: Legacy / Obsolete (Active Support Spares)
- Warranty: 12-Month Functional Warranty
Functional Role & Application Analysis
The Yokogawa PSCDM024DCBAN is a CDM (Control Data Module) designed for Yokogawa’s legacy CENTUM and μXL distributed control systems. It acts as a critical interface node, bridging the field I/O layer with the central control network. This module solves the problem of extending control logic and data acquisition to remote or distributed field panels without running extensive cabling back to the main control room. It buffers process data, executes local control algorithms, and maintains network synchronization.
Typical use cases include:
- Remote I/O expansion in large-scale chemical processing plants where central rack space is limited.
- Legacy system maintenance for aging CENTUM/μXL installations requiring exact CDM replacements.
- Distributed control in water treatment facilities, placing control logic closer to pumps and valves.
- OEM panel builds for Yokogawa-based skids requiring field-level data buffering and network connectivity.
Our Quality Standard & Testing Process
We understand that the cost of an unreliable part is far greater than its purchase price. A failed CDM can halt an entire control loop, causing production losses and safety risks. We have established a rigorous, multi-stage testing process to ensure every PSCDM024DCBAN we ship is 100% functional. We do not ship untested surplus.
- Visual & Component Inspection: All parts undergo professional cleaning and visual inspection. We check for physical damage, corrosion, cracked solder joints, and compromised components.
- Live System Test: The module is installed in a live Yokogawa test rack and run for 24 hours to verify continuous operation, network communication, and power stability.
- Full-Function Diagnostics: We simulate V-net traffic and field I/O signals to test data buffering, control algorithm execution, and network synchronization. Every channel and communication port is validated.
- Warranty Backing: Only parts that pass all diagnostic tests are approved for shipment and backed by our full 12-month warranty. If it fails in your rack, we replace it.

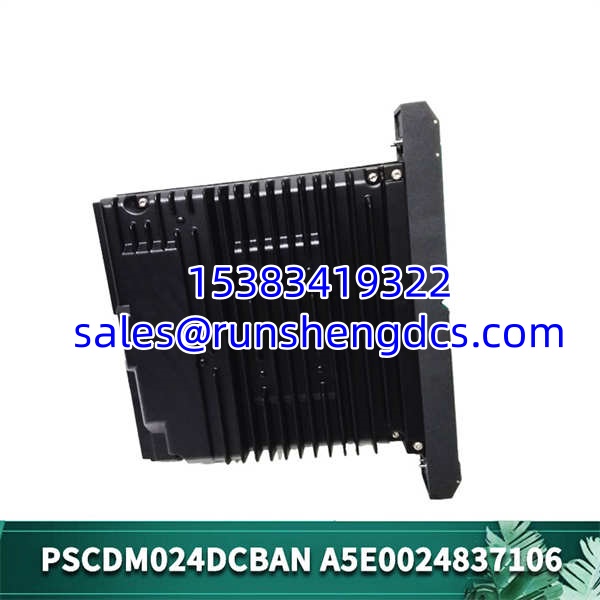

YOKOGAWA PSCDM024DCBAN-A5E0024837106
Compatibility & Migration Paths
To ensure this PSCDM024DCBAN-A5E0024837106 is 100% compatible with your system, you must check these key compatibility points. Failure to verify this is a common project risk that leads to costly downtime.
- Firmware/Hardware Revisions: You must confirm your existing CENTUM/μXL system firmware and hardware revision level. Earlier system versions may not recognize this specific CDM revision. Match the exact part number and revision suffix.
- Required Components: This module must be used with compatible Yokogawa field I/O modules and V-net interface cards. Verify your existing field bus and power supply specifications.
- Replacement & Alternatives: This model is a direct replacement for older PSCDM024DCBAN variants without the -A5E0024837106 suffix. If your system has been upgraded, consult our team for migration paths to newer CDM or FCS modules.
- Get Expert Help: Unsure about your system? Contact our technical team today for a free compatibility check. Send us your system configuration, firmware version, and current CDM model. We will verify fit before you buy.
