Description
Key Technical Specifications
- Model Number: PSCAMAAN-A5E0023936304
- Manufacturer: YOKOGAWA. Series: ProSafe-PLC CAM (Critical Analog Module)
- Module Type: Safety analog input module for SIS/ESD
- Signal Type: 4–20 mA analog field signals
- Safety Rating: Designed for SIL safety applications; final SIL claim depends on full system architecture
- Operating Temperature: -20 °C to +70 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity: 5%–85% non-condensing
- Mounting: Dedicated ProSafe-PLC rack slot, front pluggable
- Diagnostics: Channel-level fault detection, field wire break/short detection, front-panel status LEDs
- Construction: Heavy aluminum heat sink enclosure for vibration and EMI resilience
Functional Role & Application Analysis
The PSCAMAAN-A5E0023936304 is not a standard DCS I/O card. It is the analog front end for Yokogawa’s ProSafe-PLC safety system. It captures 4–20 mA transmitter signals and passes validated, diagnosed values to the safety controller. That separation matters: standard control I/O does not include the continuous fault coverage required for protection trips. A broken wire, shorted loop or drifting transmitter must be detected before it masks a hazard.
This module cannot be mixed arbitrarily with ProSafe-RS or CENTUM family hardware. It locks into a specific rack backplane and controller firmware set. Many site issues come from treating safety spares like generic DCS cards. You must match the exact chassis, controller revision and terminal assembly.
Typical use cases:
- ESD and process safety shutdown logic in refineries, petrochemical and LNG facilities
- Critical pressure, level and temperature transmitter input to safety instrumented functions
- Legacy ProSafe-PLC rack maintenance where original CAM modules fail or show intermittent channel faults
- Safety system spare pool build for sites with active ProSafe-PLC islands before migration
Our Quality Standard & Testing Process
We understand that a misbehaving safety I/O module does not merely cause nuisance alarms. It can hide dangerous process conditions or spuriously trip a unit. Every PSCAMAAN we ship goes through safety-focused checkout, not just basic power-up.
- Visual & Component Inspection: We inspect edge connector pins, heat sink fasteners, label integrity and front LED condition. Any bent pins or corrosion stop the unit immediately.
- Power and Rail Stress Test: We apply specified input voltage and check for stable draw across the operating voltage window; we reject units with fluctuating current or warm spots.
- Channel Loop Simulation: We inject calibrated 4–20 mA signals into each channel and verify readback, wire-break detection and fault flagging at defined thresholds.
- Rack Compatibility Bench Test: We seat the module in a matching ProSafe-PLC nest and confirm controller recognition, status LED behavior and fault reporting.
- Warranty Backing: Only modules passing all safety-level diagnostics ship with our 12-month warranty. We retain test logs for traceability.

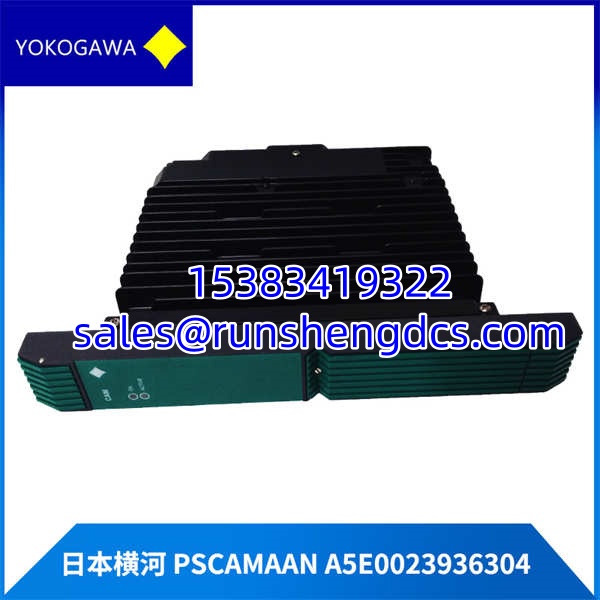

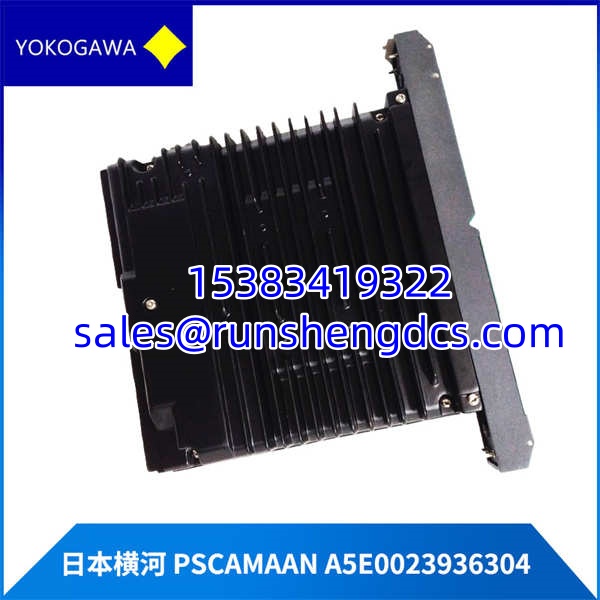

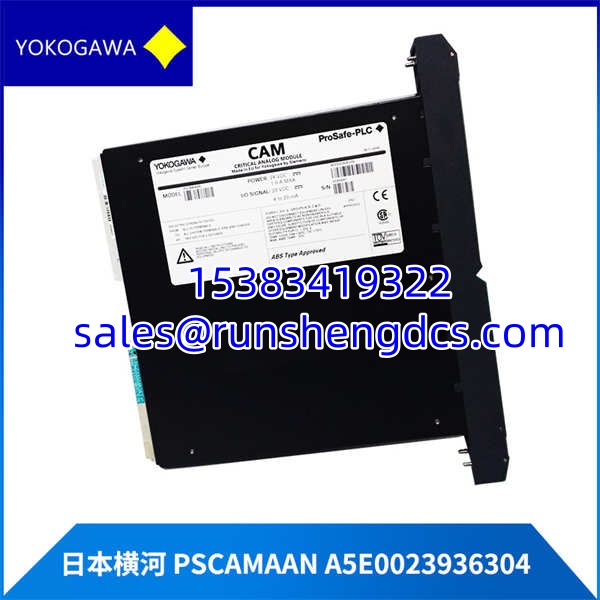

YOKOGAWA PSCAMAAN-A5E0023936304
Compatibility & Migration Paths
To avoid a costly outage or safety function invalidation, you must verify several system-level items before ordering. Safety I/O compatibility is not “same form factor = works.”
- Platform Lock: This CAM belongs to ProSafe-PLC. It will not operate in ProSafe-RS, CENTUM VP or generic Yokogawa DCS racks. Do not assume physical fit equals compatibility.
- Controller Firmware Revision: Older controller firmware may not support later module hardware revisions. Send your controller part number and firmware version.
- Field Termination: Check your existing terminal assembly. Mismatched or non-isolated termination blocks can defeat wire-fault detection and create ground loops.
- Replacement & Alternatives: PSCAMAAN variants differ by revision and serial suffix. A5E0023936304 is a specific unit; a different suffix may not be a drop-in replacement. For new safety designs, evaluate current ProSafe-RS or third-party SIL platforms rather than expanding ProSafe-PLC.
- Get Expert Help: Send your rack model, controller part number, firmware version and channel list. Our team can flag incompatibilities before you place the order.
